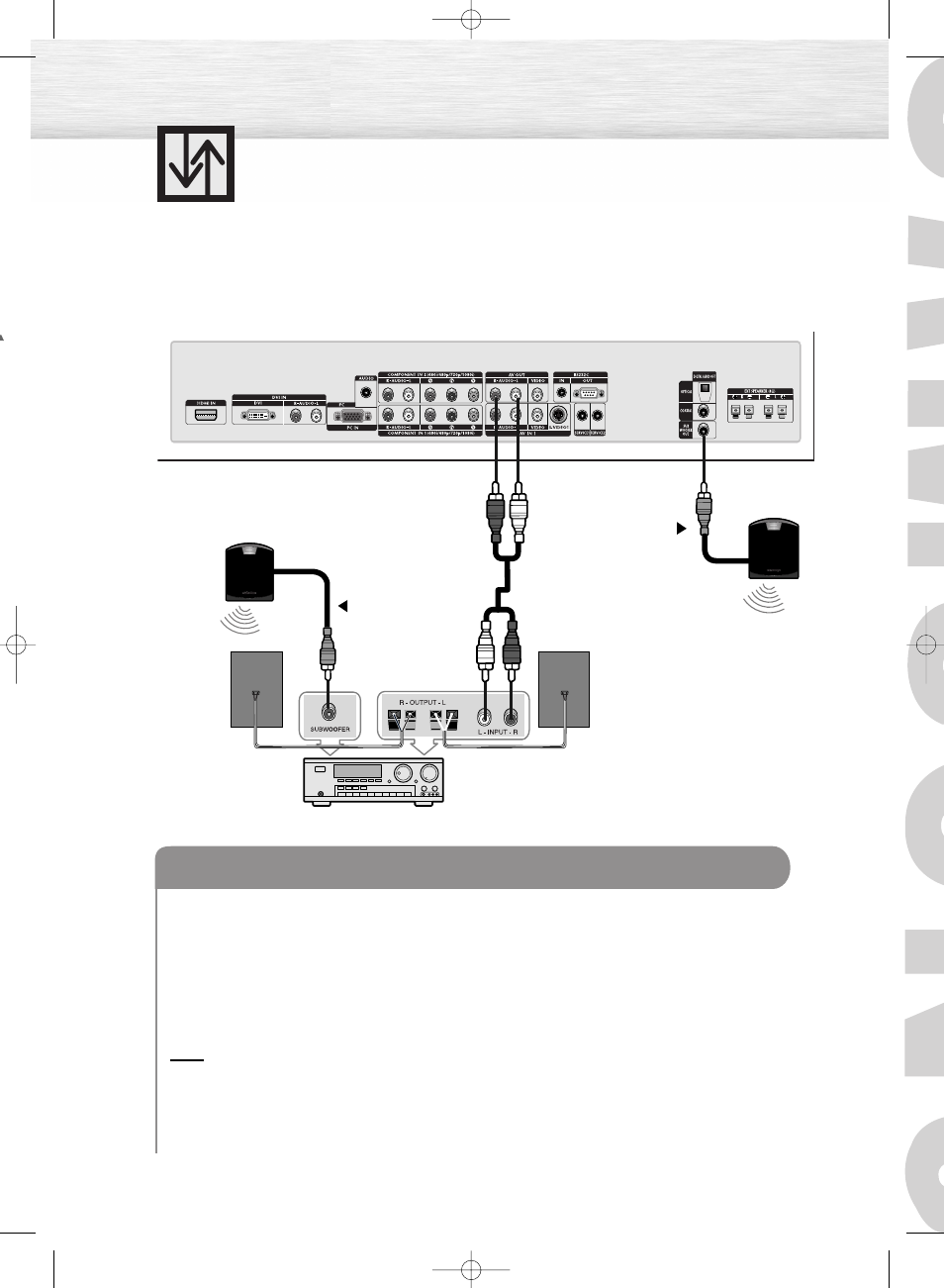

PDP Monitor Rear Panel

Connect a powered subwoofer to the SubWoofer jack on the PDP Monitor using the subwoofer
cable.

To use a passive subwoofer, connect an amplifier and use referring to the connection
procedures described in "Connecting to an Analog Amplifier".

Note

• Powered subwoofer: This is a subwoofer with a built-in amplifier.
• Passive subwoofer: This is a subwoofer without a built-in amplifier.

You have to install an additional amplifier and connect to the
subwoofer.

How to Connect

1

2

Analog Amplifier

Passive Subwoofer

(Option)

Powered Subwoofer

(Option)

Connecting to a Subwoofer Speaker

2

1
