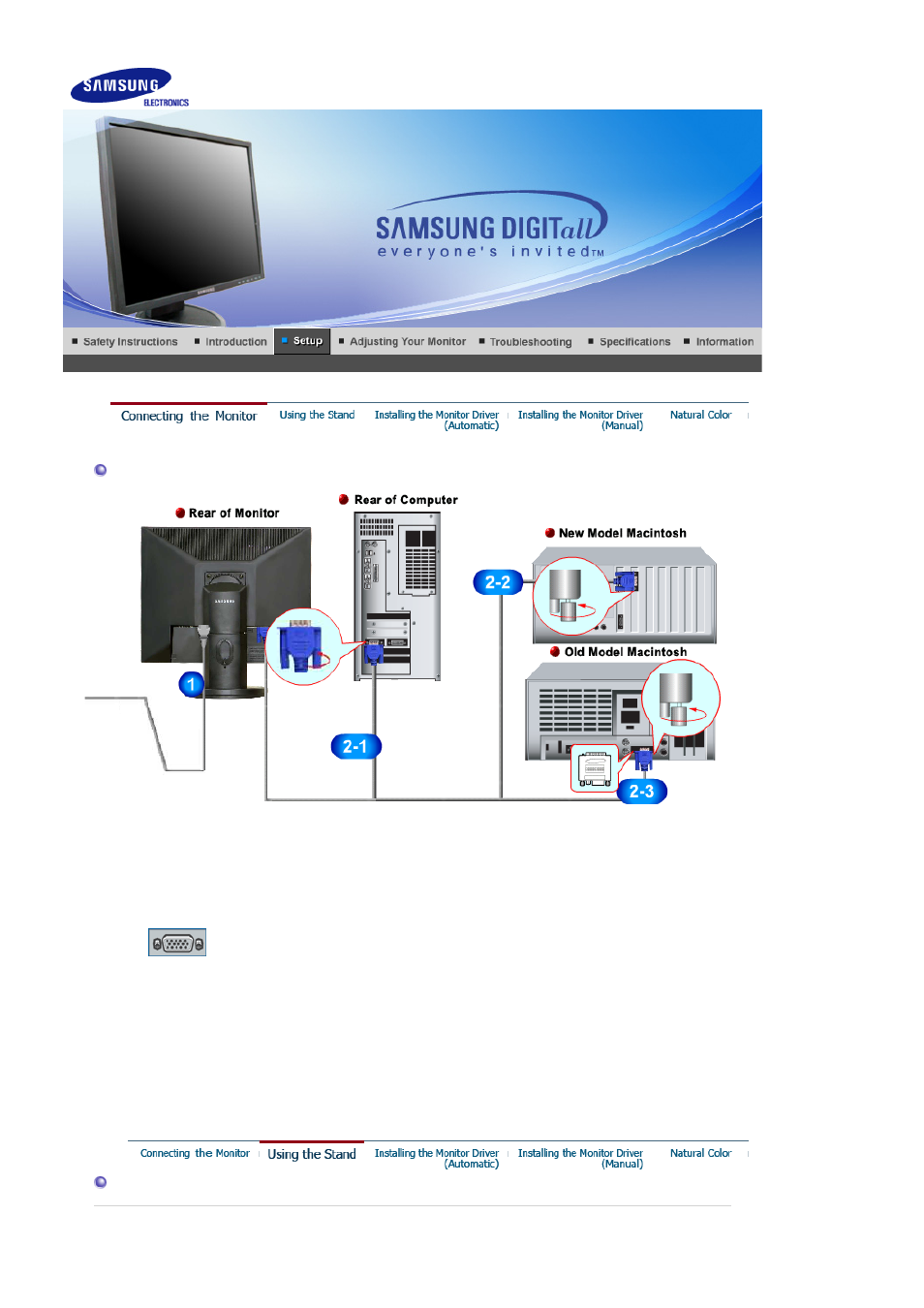

Connecting the Monitor

[ RGB IN ]

2-2.

Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-sub connection cable.

2-3.

In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adapter.

3.

Turn on your computer and monitor. If your monitor displays an image, installation is
complete.

Using the Stand

SyncMaster 740N / 940N

1.

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

2-1.

Using the D-sub (Analog) connector on the video card.

Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
