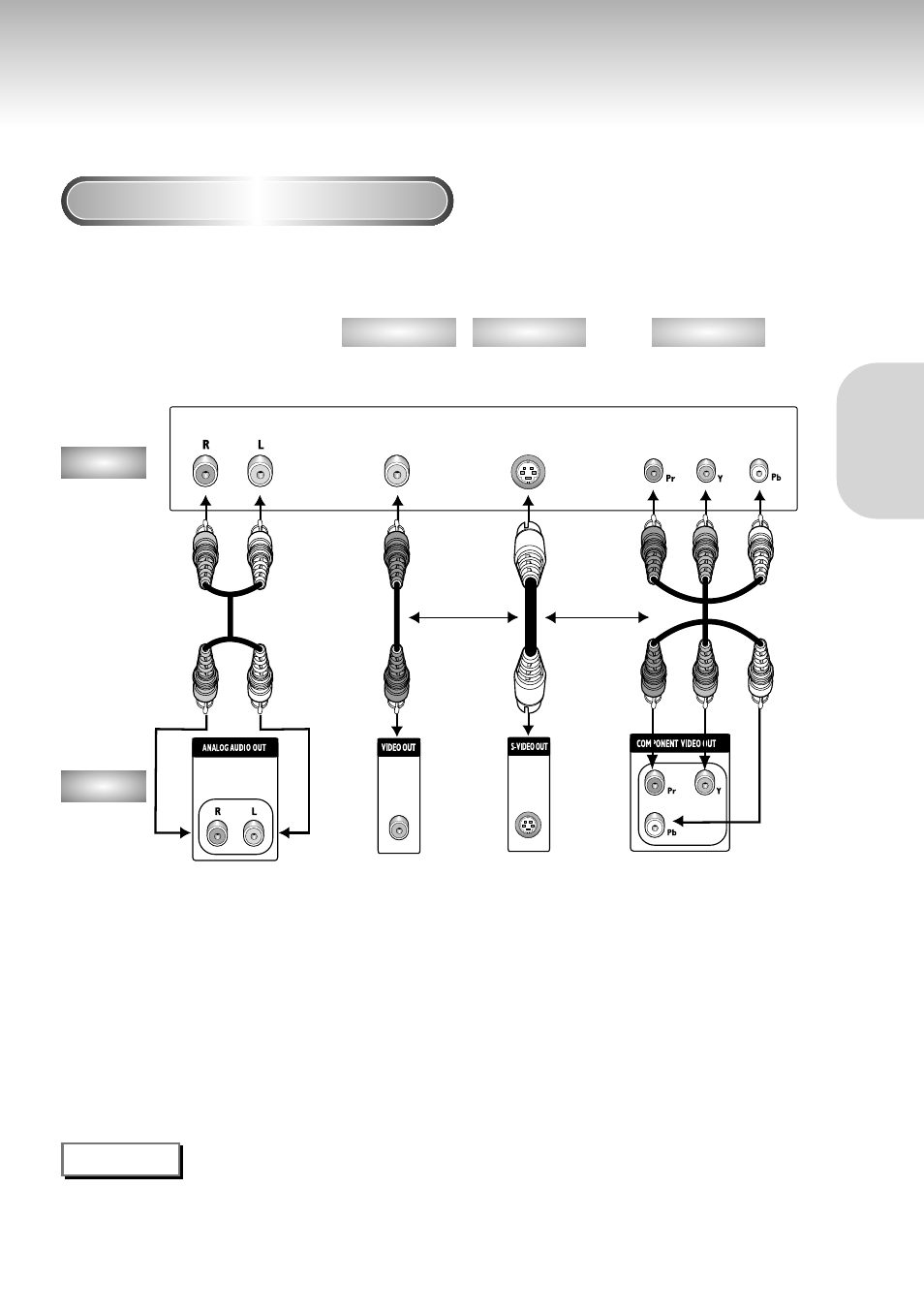

Choosing a Connection

Connection to a TV (For Video)

TV (Normal, Widescreen, Projection, etc..)

Good picture

Basic Audio

Better picture

Best picture

Method 1

Method 2

Method 3

Audio Output Jacks

OR

OR

AV Cable

S-Video

Cable

Video Cables

Video Output Jack S-Video Jack

Component Video

Jacks

DVD

TV

• Method 1

DVD Player + TV with Video Input Jack

• Method 2

DVD Player + TV with S-Video Input Jack

(If S-Video is selected in the VIDEO OUT SELECT.)

• Method 3

DVD Player + TV with Component Video Jacks

(If Y, P

b

or Pr is selected in the VIDEO OUT SELECT.)

NOTE

• If Y, P

b

or P

r

is selected, S-Video will not work.

• If S-Video is selected, Y, P

b

or P

r

will not work.
