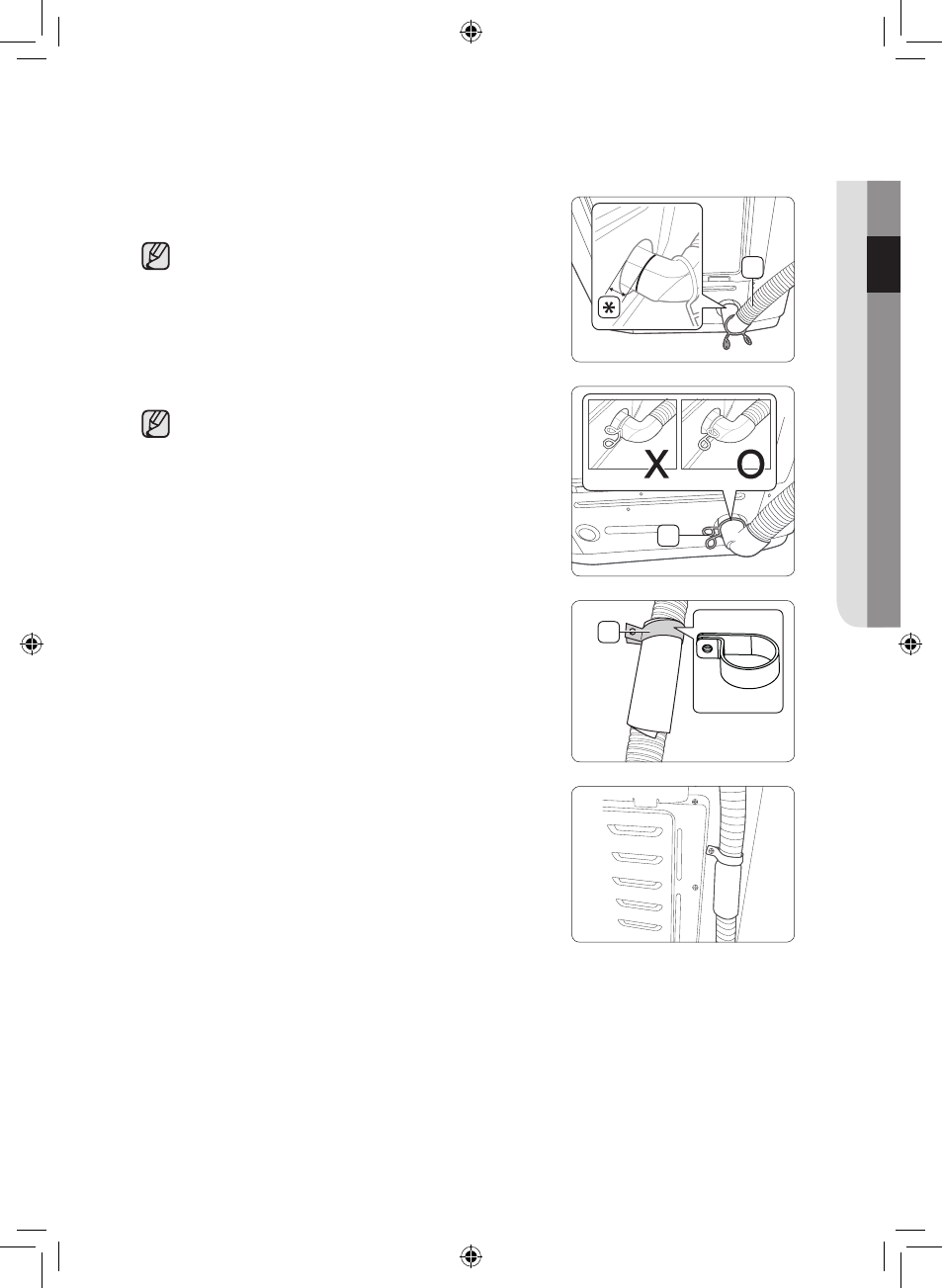

Step 4 - Connect the drain hose
Installing the drain hose
1. Connect the drain hose (A) to the case pump outlet pipe with
the hose tilted at a 2 o’clock angle.
The drain hose goes over the case pump outlet pipe.
Make sure that you connect the drain hose so that less
than 1/3 in. (10 mm) of the pipe remains exposed.
A
2. Clamp the drain hose using a joint ring (B).
Make sure the joint ring is clamped with its two prongs
facing the washer.
B
3. Attach the clamper (C) to the drain hose at the end of the
sponge.
Make sure the clamper covers one end of the sponge.
Make sure the sponge is tightened. A loose sponge may
cause noise while the washer is operating.
C
4. Insert the included screw through the screw hole in the
clamper, then fix the screw to the hole on the rear right side of
the frame. Tighten with a screwdriver.
