ALIGNMENT AND ADJUSTMENTS
3
NO
Error Code
(Diagnostic Code
Error Image)

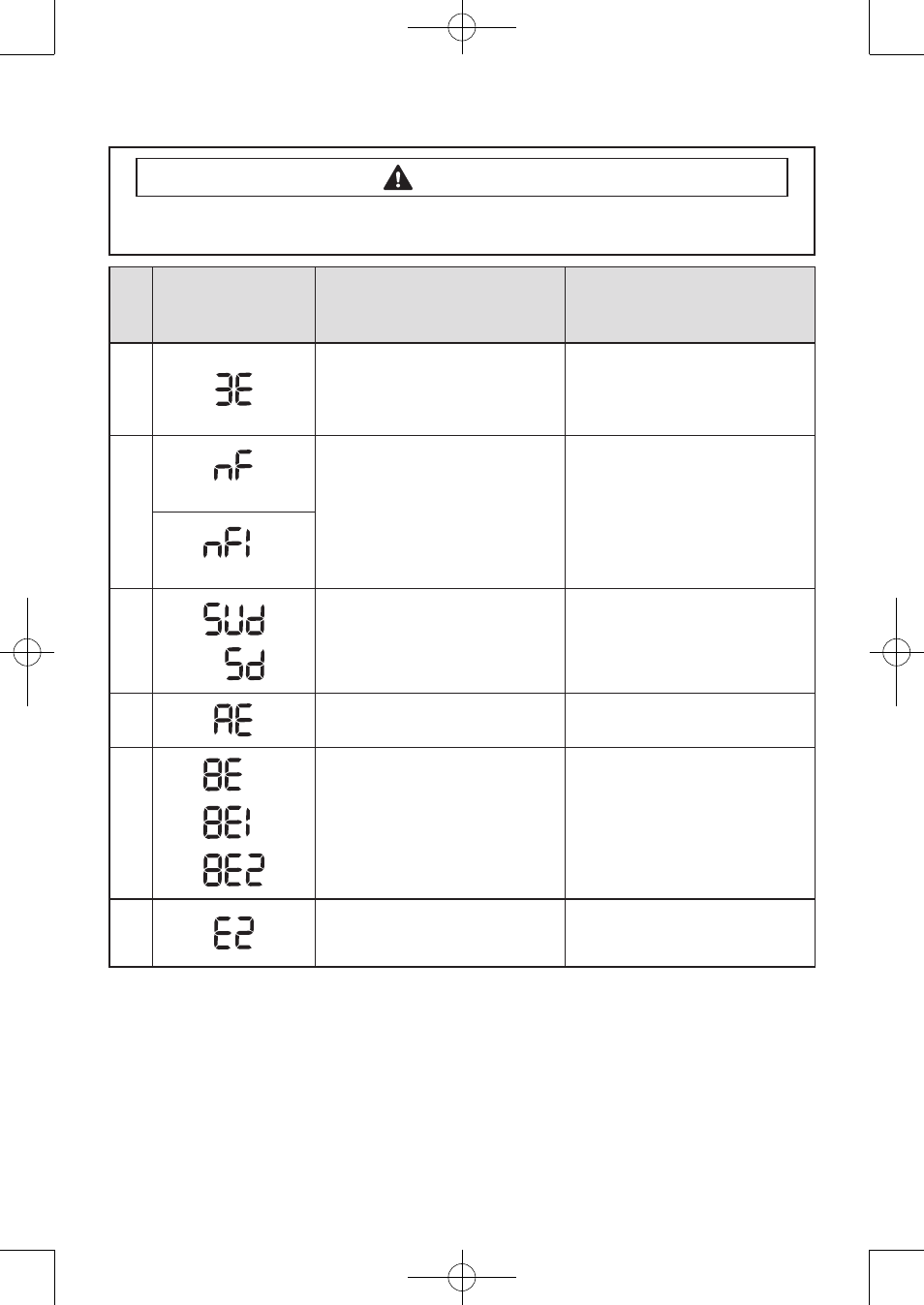

Description Corrective Action
11
MICOM is attempting to drive the motor
but is not getting any response signals
from the hall sensor. Visual check shows
motor is not running. (Locked, Defective
Hall Sensor or Overload)
Evaluate wire harness for loose or
unhooked connections. Go to “
Quick Test Mode” and test Motor.
12
(WA422*/WA400*)
The hot/cold water hose connection
is not correct.
Please connect the hot/cold water
hose connection correctly.
(WA456*)
13
Suds is detected during the washing
session. (“SUd” or “Sd” is not an error.
When it finishes washing, End and
the “SUd” or “Sd” code will blink in
turn.)
Guide a user to reduce amount of
detergent usage.
14
Communication error between SUB
PBA and MAIN PBA
Check Main PBA, SUB PBA & Wire-
harness. Replace PCB
15
If the MEMS communication error or
MEMS trouble diagnosis error occur,
this message will be displayed.
1. Check the MEMS sensor and PBA.
2. Check the wire connector
terminals
16
A button except the Power button is
continually pressed.
Check whether either the Power
switch or a tact switch is continually
pressed
To avoid risk of electrical shock, personal injury or death; disconnect power to washer
before servicing, unless testing requires power.
WARNING
