stereo cable to hear audio from the HDMI screen.

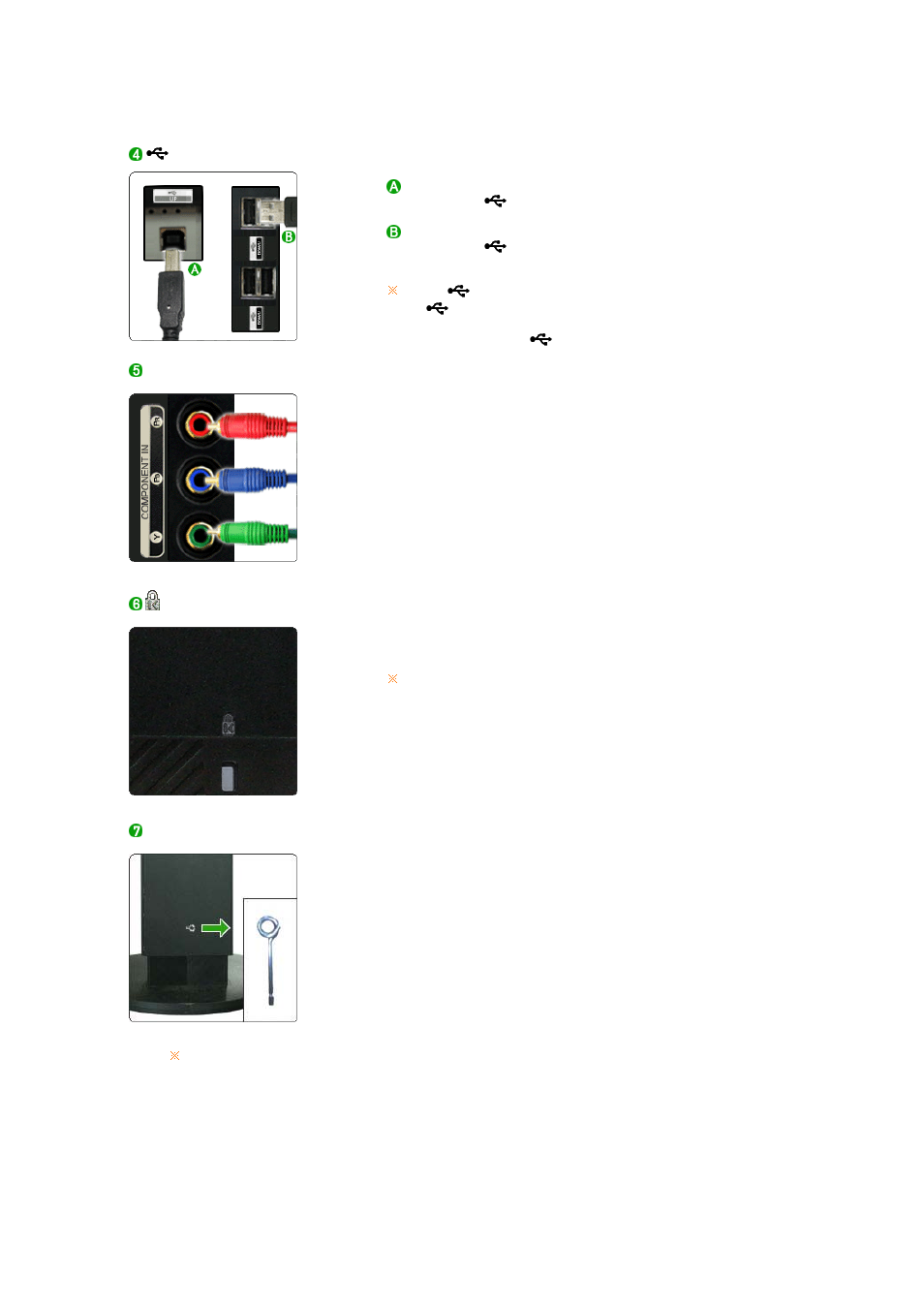

USB connection terminal

UP (USB upstream port)
: Connect the

UP port of the monitor and the USB port

of the computer with the USB cable.
DOWN (USB downstream port)
: Connect the

DOWN port of the USB monitor and a

USB device with the USB cable.

To use

DOWN (Downstream Port), you have to connect

the

UP (Upstream Cable ) to the PC.

Make sure to use the USB cable supplied with this monitor to
connect the monitor's

UP port and your computer's USB

port.

COMPONENT IN

z

Connect the VIDEO OUT port of the DVD / DTV Set-Top Box to
the Y, P

B

,P

R

input ports using a component video cable (Y,

P

B

,P

R

).

Kensington Lock

z

The Kensington lock is a device used to physically fix the
system when using it in a public place.
(The locking device has to be purchased separately.)

For using a locking device, contact where you purchase it.

Stand Stopper

z

Remove the fixing pin on the stand to lift the monitor up and
down.

See

Connecting Cables

for further information regarding cable connections.
