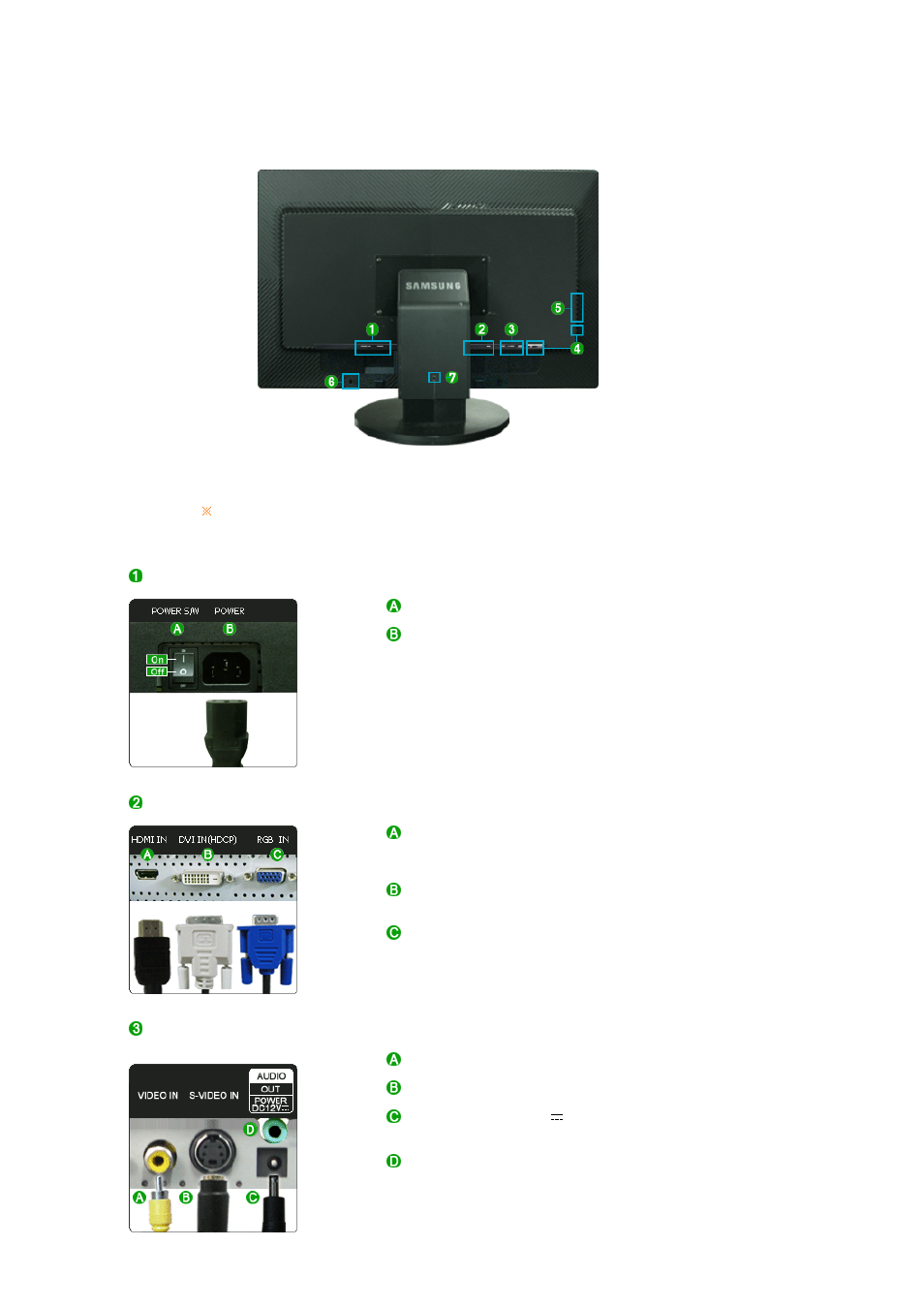

The configuration at the back of the monitor may vary from product to product.

POWER S/W / POWER

POWER S/W
: Switch the monitor on and off.
POWER
: Connect the power cord for your monitor to the POWER IN
port on the back of the monitor.

HDMI IN / DVI IN(HDCP) / RGB IN

HDMI IN
: Connect the HDMI IN terminal at the back of your monitor
to the HDMI terminal of your digital output device using a
HDMI cable.
DVI IN(HDCP)
: Connect the DVI cable to the DVI IN(HDCP) port
on the back of your monitor.
RGB IN
: Connect the RGB IN terminal at the back of your monitor to
your computer.

VIDEO IN / S-VIDEO IN / AUDIO POWER / AUDIO OUT

VIDEO IN
: External device (video) input terminal
S-VIDEO IN
: External device (S-video) input terminal
AUDIO POWER (DC 12V )
: Connect the speaker power line connected to the speaker
to the AUDIO POWER terminal of the monitor.
AUDIO OUT
: When connecting an external device to your monitor using
an HDMI cable, you must connect the AUDIO OUT terminal
of your monitor and the SPK terminal (yellowish green -
sound input terminal) of the dedicated speaker using a
