6_ Connecting the power
stEP 2. ACCEssinG thE PoWER CoRD ConnECtion

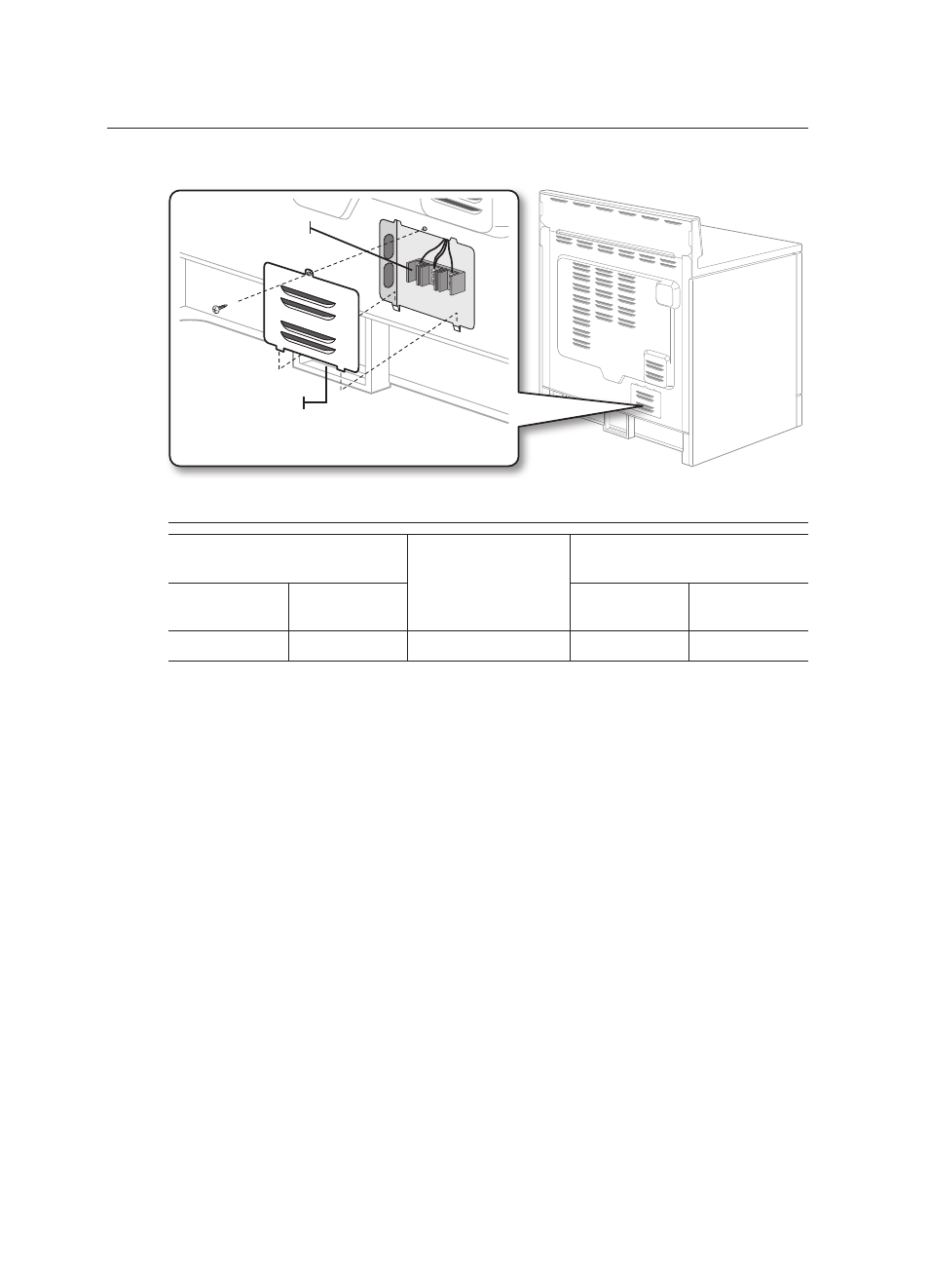

Remove the rear access cover and loosen the screw with a screwdriver. The terminal block will then be
accessible.
Access cover
Terminal block
Specified power-supply-cord kit rating
Range rating, watts
Specified rating of
power-supply-cord kit,
amperes
Diameter (inches) of range
connection opening
120/240 volts
3-wire
120/208 volts
3-wire
Power cord Conduit
8,750 - 16,500 7,801 - 12,500 40 or 50A 1 3 /
8
” 1 1 /
8
”
