Installing the TV Stand (UN27D5000)
Components
When installing the stand, use the provided components and parts.
Stand (depending on the model) Guide Stand Screws
C x6 (M4 X L12)
B A 1 EA 1 EA
C
(M4 X L12)
x3
3
4
Side View
(Correct assembly) (Incorret assembly)
B
A
Rear
Front
C
(M4 X L12)
x3
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
ATTENTION
1 2
✎

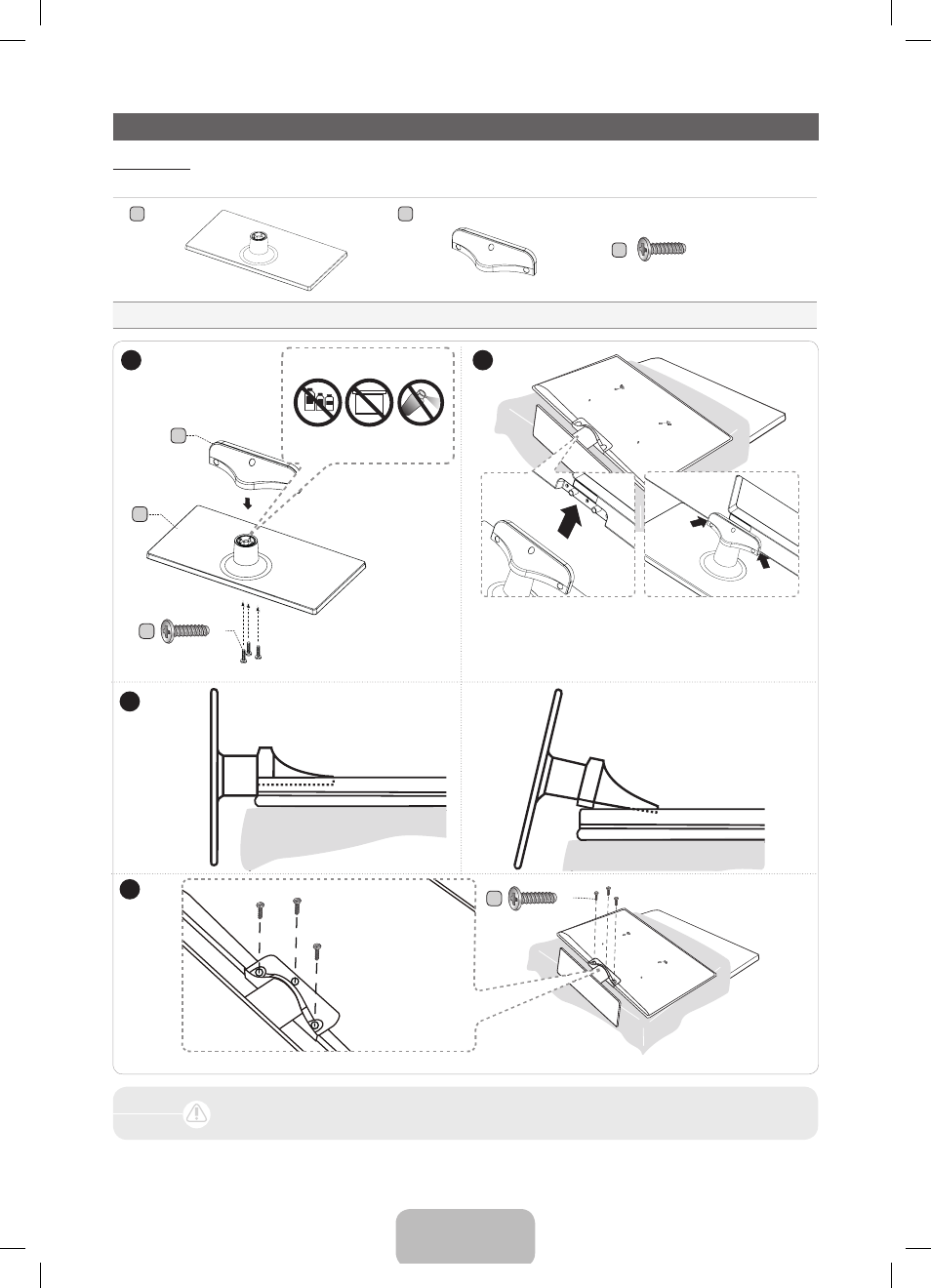

Place a soft cloth over the table to protect the TV,
and then place the TV on the cloth screen side down.
✎
Insert the Stand Guide into the slot of TV bottom
side.
➢ Make sure to distinguish between the front and back of each component when assembling them.
