Dimensions
■

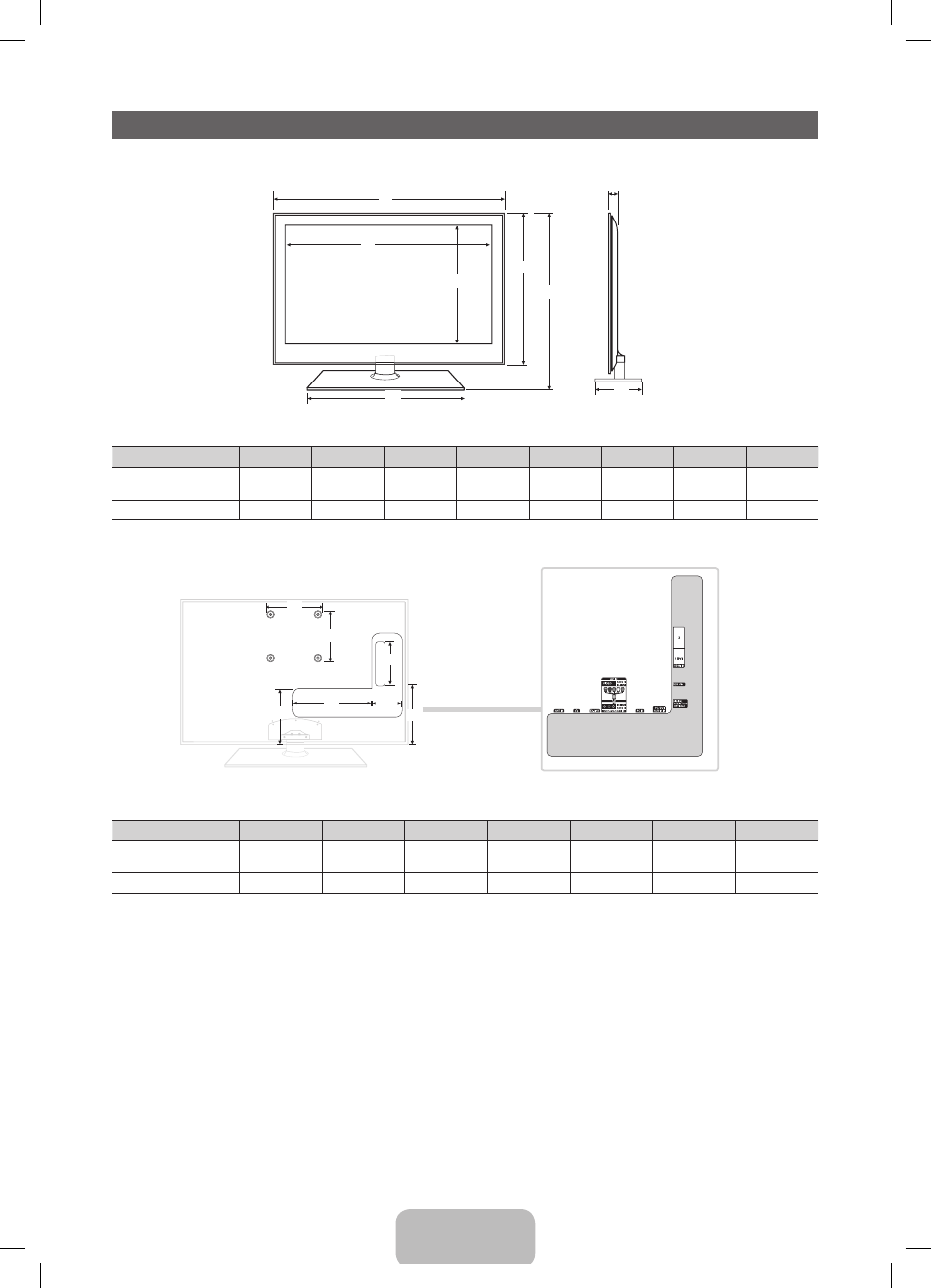

Front view / Side view
(Unit: inches)
Model name
1
2
3
4
5
6
7
8
UN22D5000NF
UN22D5010NF
20.6
18.8
10.8
10.5
12.7
14.8
1.2
5.7
UN27D5000NF
25.4
23.7
13.3
13.6
12.7
17.8
1.2
6.9
■
Jack panel detail / Rear view
(Unit: inches)
Model name
1
2
3
4
5
6
7
UN22D5000NF
UN22D5010NF
3.0
3.0
3.9
5.2
2.8
7.4
4.7
UN27D5000NF
7.9
3.9
3.9
5.6
3.9
7.4
5.1
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
