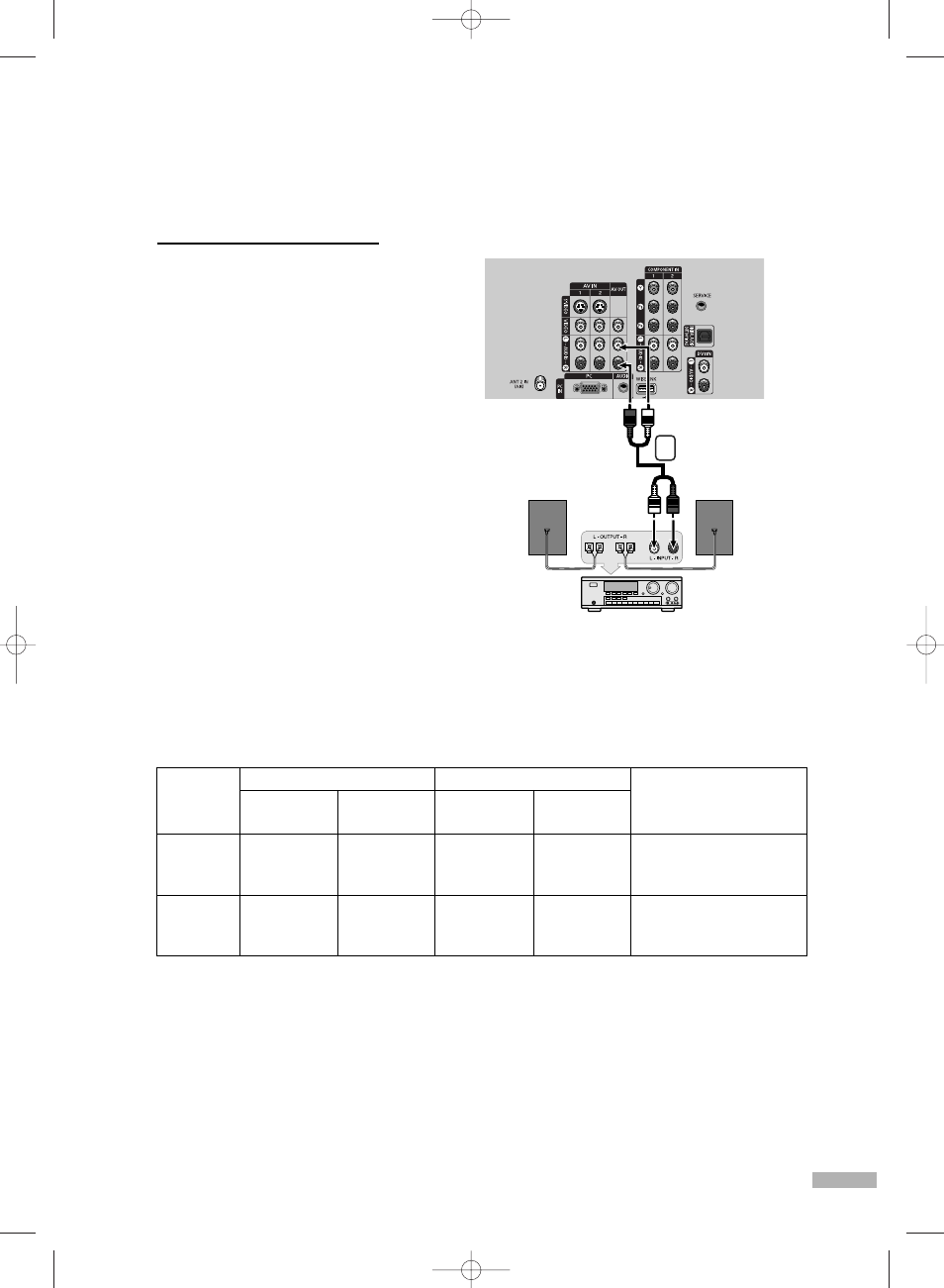

Connecting to an Analog Amplifier
1 The AV OUT (AUDIO L/R)
terminals cannot be used for
external speakers.
You must hook them up to an
amplifier.
When an audio amplifier is
connected to the AV OUT
(AUDIO L/R) terminals:
Decrease the gain (volume)
of the TV, and adjust the
volume level with the volume
control audio amplifier.
TV Side Panel
Amplifier
1
When “Internal mute” is set to “On”, Sound menus except “Multi-Track Options” cannot be adjusted.
See selecting the Internal Mute on page 81.
RF
AV
S-Video
Component
PC
HDMI
Internal
Mute Off
Internal
Mute On
Internal Speakers
Internal
Mute Off
Internal
Mute On
Audio Out (Optical, L/R Out)
Video Output
Active
Active
Active
Active
Active
Active
Active
Inactive
Inactive
Inactive
