Samsung DVD-R130-XAA - Manual (Page 18)

C
onnecting & Setting Up
18 - English
Step 2 : Connecting the Video Cable
There are several ways to connect your DVD Recorder. Select one of the video connections on the following pages.
The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output
audio/video signals. You must use one of the following audio/video connections on this unit.
Connecting to a Video input jack

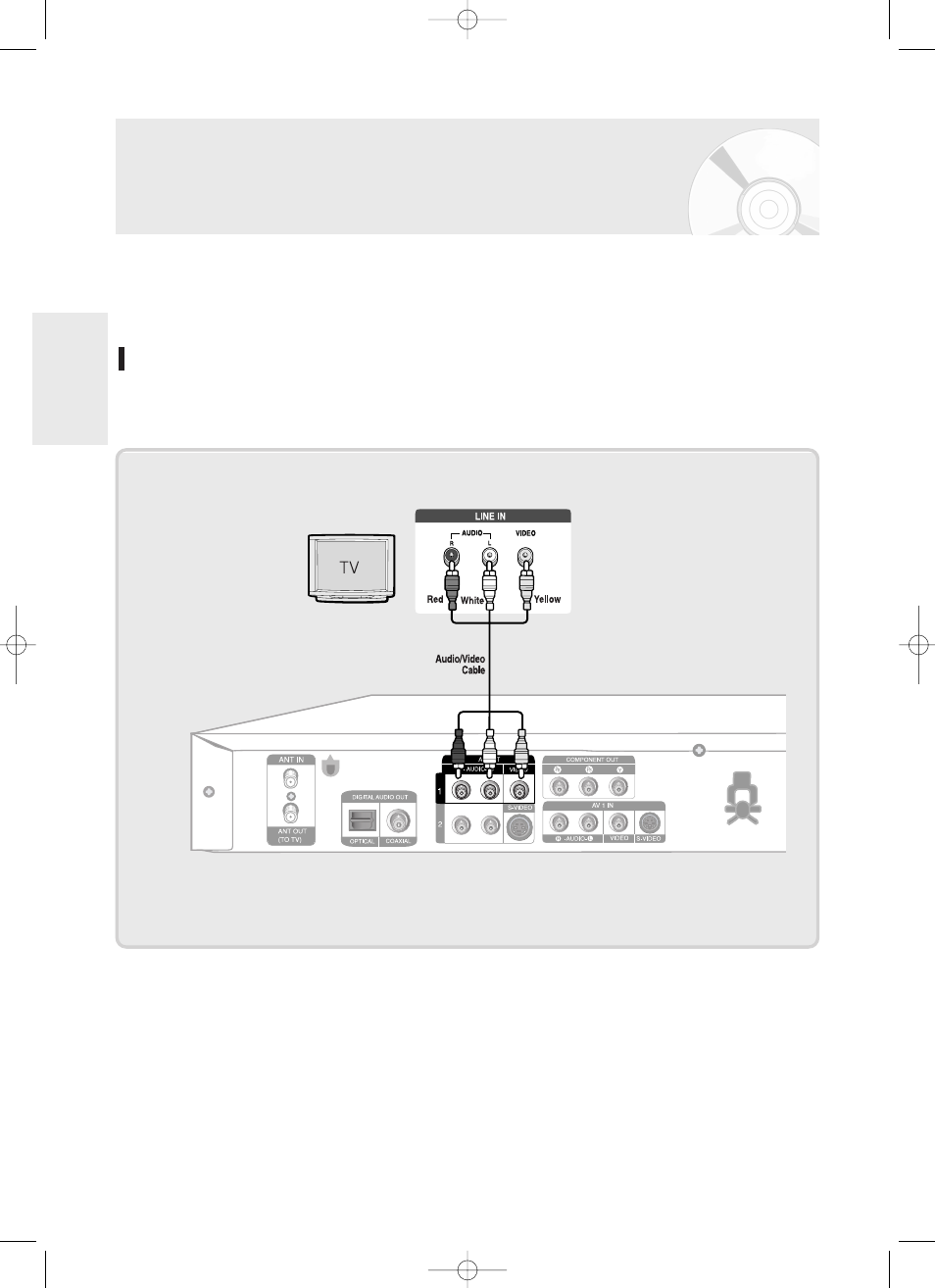

Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder and VIDEO(yellow) IN jack on
the TV (or AV amplifier).
• You will enjoy normal quality images.
• Connect audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder and AUDIO
IN jacks on your TV(or AV amplifier).
(See pages 21 ~ 23)
