aDJusting tHE FREEZER DRawER LEVEL

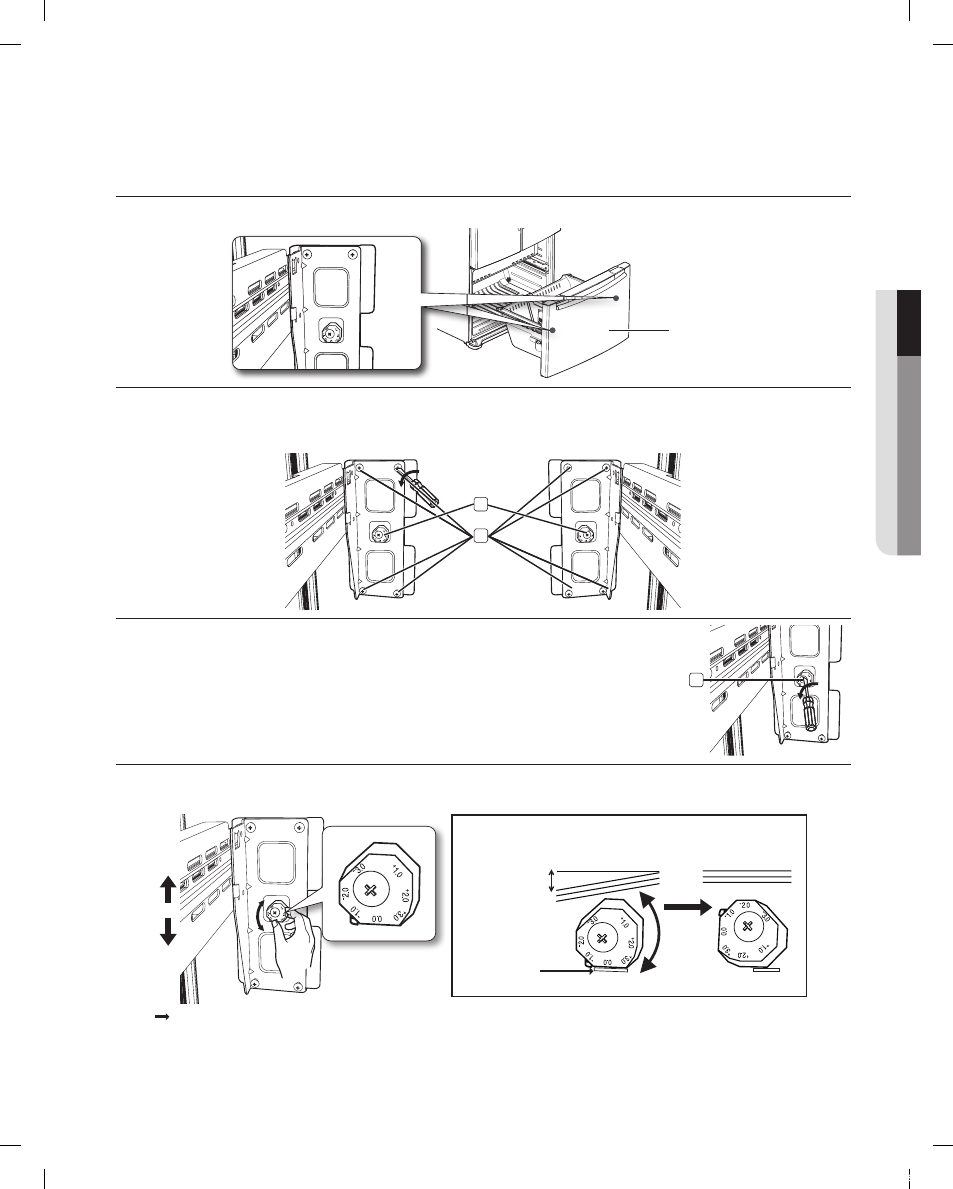

1. Locate the height-adjuster ( 1 ) in the freezer drawer.
Unscrew the 8 Phillips screws ( 2 ) slightly to loosen the door.
3. Find the best level to align the door slope.
After adjustment, tighten the controller screw ( 3 ) and then philips screws.
Freezer Drawer
Adjustment part
2. Loosen the controller screw( 3 ) with a Phillips screwdriver(+).
3
2
1
Example) The slope is about 0.08inch(2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Reference
plane
