15

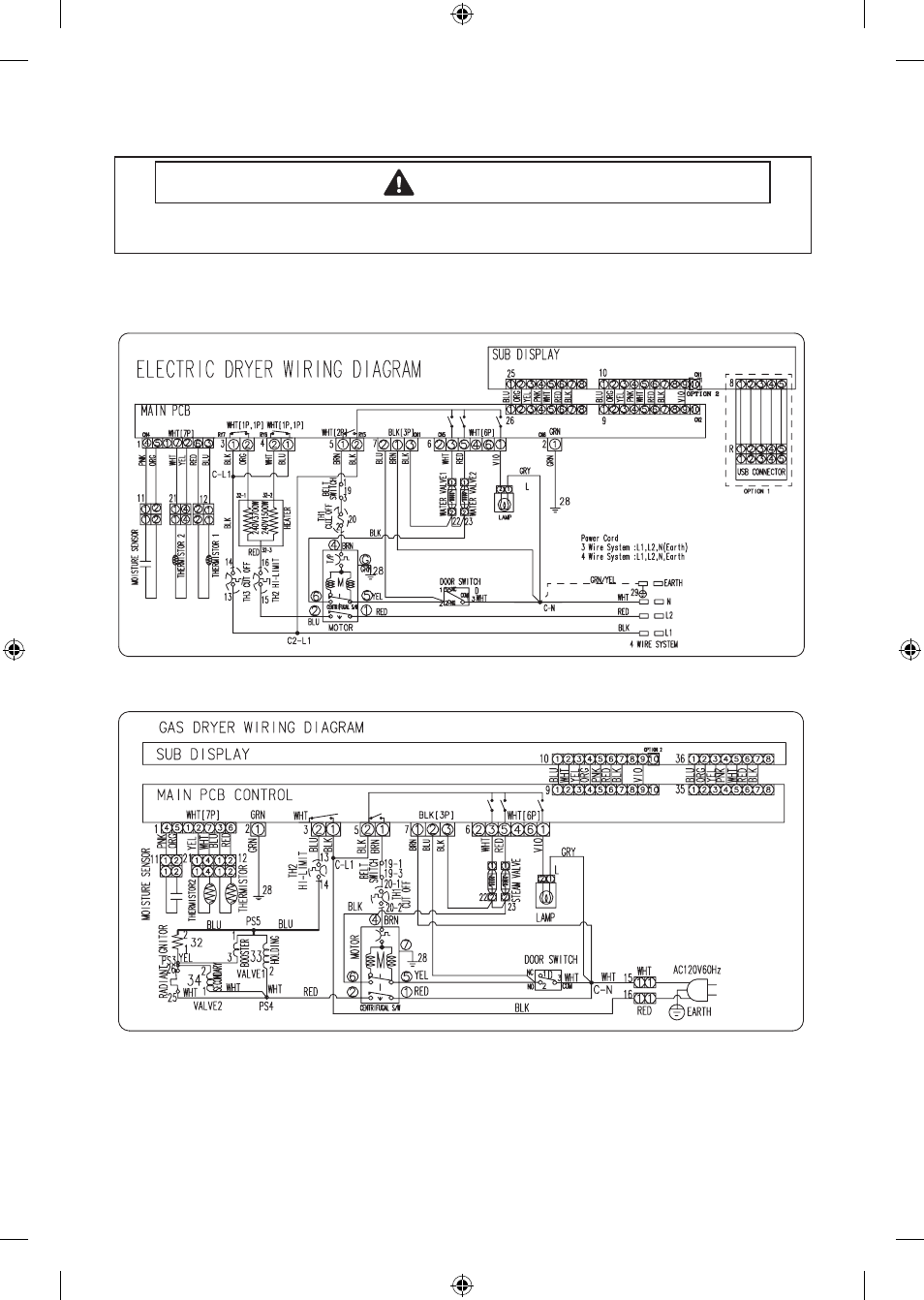

WIRING DIAGRAM

DV457E*, DV455E*

DV457G*, DV455G*

WIRING DIAGRAM

WARNING

To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.

Technical_information-02835D-02_EN.indd 15

2012-04-26 �� 11:51:35
