19 _
Introduction

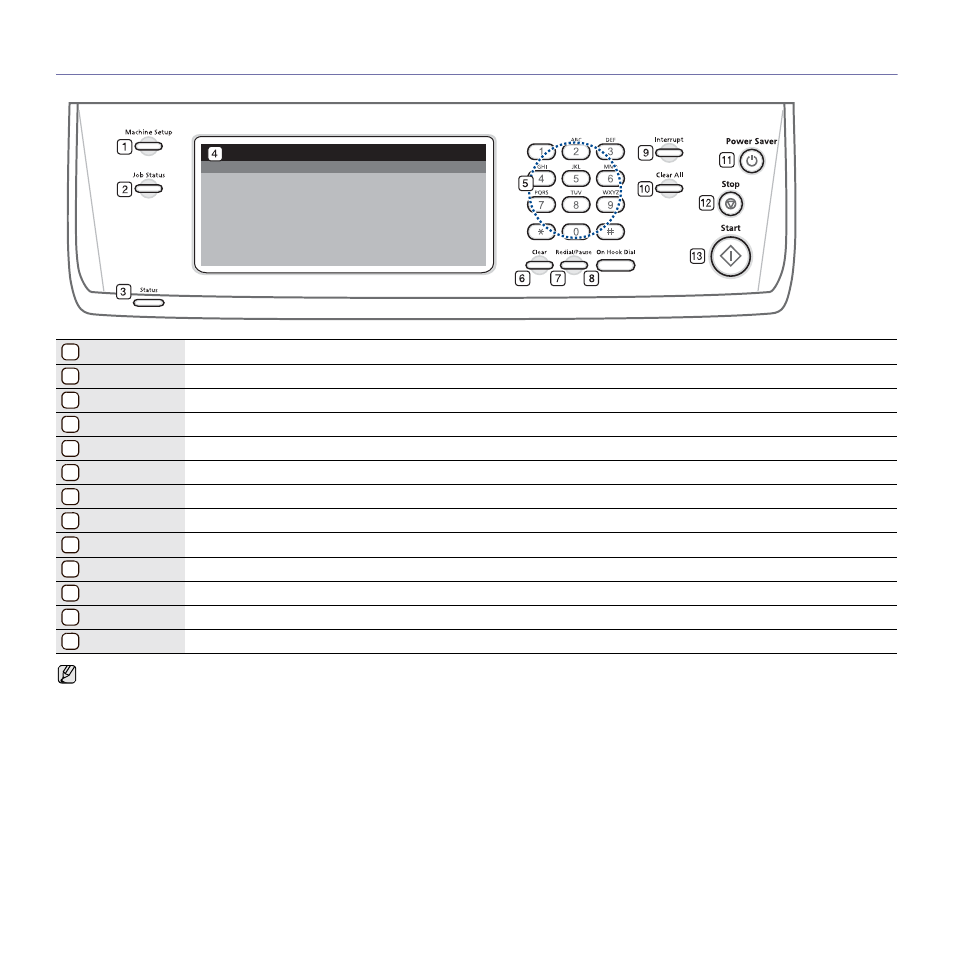

CONTROL PANEL OVERVIEW
1 Machine Setup
Leads you to the machine setup and advanced settings. (See "Machine Setup" on page 82.)
2 Job Status
Shows the jobs currently running, queued jobs or completed jobs.
3 Status
Shows the status of your machine. (See "Understanding the Status LED" on page 21.)
4 Display screen
Displays the current machine status and prompts during an operation. You can set menus easily using the touch screen.
5 number keypad
Dials fax number, and enters the number value for document copies or other options.
6 Clear
Deletes characters in the edit area.
7 Redial/Pause
In standby mode, redials the last number, or in edit mode, inserts a pause into a fax number.
8 On Hook Dial
Engages the telephone line.
9 Interrupt
Stops a job in process to do an urgent copy job.
10 Clear All
Reverts the current settings to the default values.
11 Power Saver
Sends the machine into the power saver mode. (See "Using energy saving feature" on page 30.)
12 Stop
Stops an operation at any time. The pop up window appears on the screen showing the current job that the user can stop or resume.
13 Start
Starts a job.
• All illustrations on this user’s guide may differ from your machine depending on its options or models.
• When you use the touch screen, use your finger only. The screen may be damaged with a sharpen pen or else.
