42
2 Connecting and Using a Source Device
2
Connecting and Using a Source Device
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
z
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
z
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
z
Check the types of ports at the back of the product you want to connect.
2.2 Connecting and Using a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.

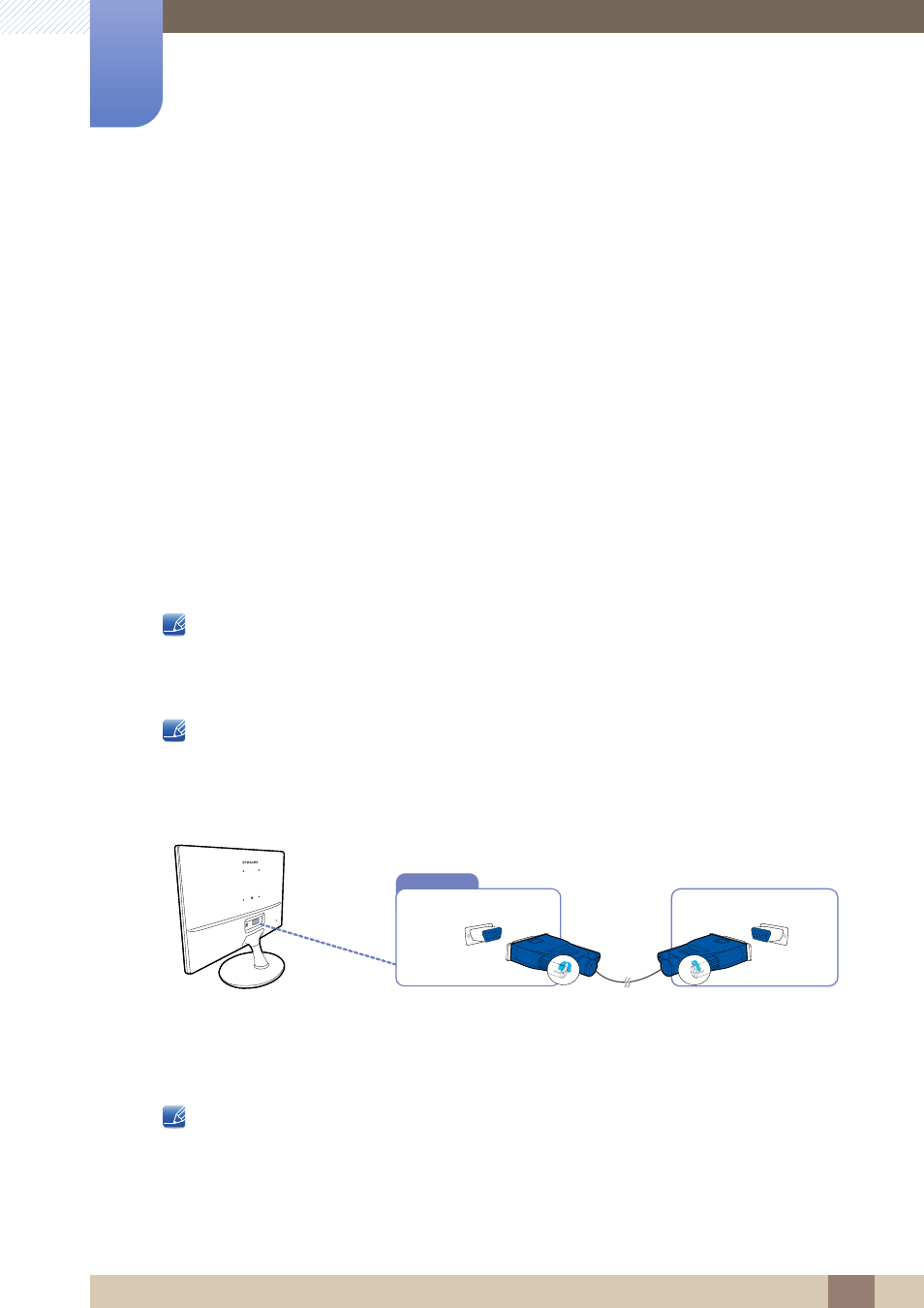

2.2.1 Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
S19D300HY / S19D340HY / S19D300NY
1
Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.
2
Connect the DC power adapter to the product and a power socket.
Next, turn on the power switch on the PC. (For details, refer to "2.2.6 Connecting the Power".)
Provided ports may vary depending on the product.
RGB IN
