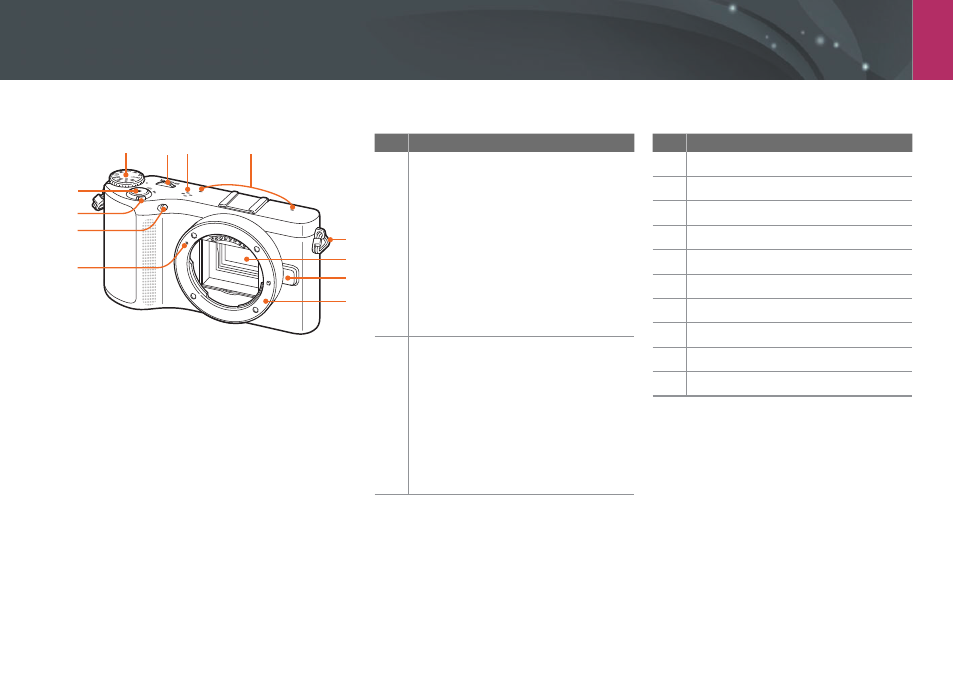

Camera layout
No.
Name
1
Mode dial
•
t: Smart Auto mode (p. 41)
•
P: Program mode (p. 42)
•
A: Aperture Priority mode (p. 43)
•
S: Shutter Priority mode (p. 43)
•
M: Manual mode (p. 44)
•
i: Lens Priority mode (p. 45)
•
N: Magic mode (p. 48)
•
p: Panorama mode (p. 48)
•
s: Scene mode (p. 49)
•
v: Movie mode (p. 51)
2
Jog dial
•
In the Menu screen: Move to a
desired menu item.
•
In Shooting mode: Adjust shutter
speed or aperture value in some
shooting modes and change the size
of a focus area.
•
In Playback mode: Enlarge or
reduce a photo, view thumbnails,
adjust the volume level.
No.
Name
3
Speaker
4
Microphone
5
Eyelet for camera strap
6
Image sensor
7
Lens release button
8
Lens mount
9
Lens mount index
10
AF-assist light/Timer lamp
11
Power switch
12
Shutter button
1
2 3
4
5
6
7
10
11
12
8
9
