installation instructions _33
INS
TALLA
TION
INS
TRUC
TIONS
3. If range is next to or between
cabinets, make sure the cooktop
(without the surface burner grates) is
level with the countertops.
4. Position an oven rack in the center
rack position.

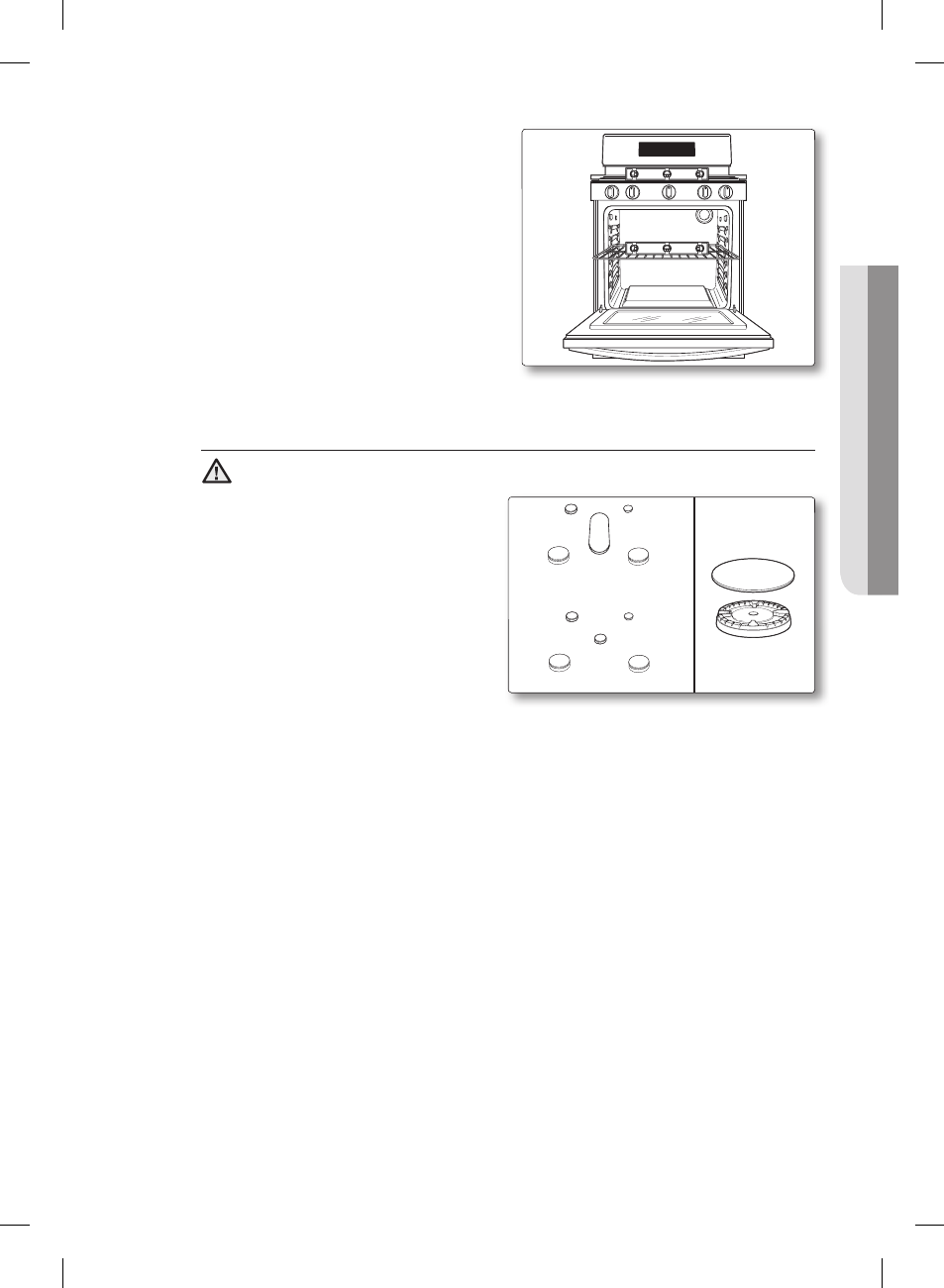

5. Check the level of the range with
a carpenter level using the two
positions shown at right.
6. After the range becomes level, slide
the range away from the wall so that
the anti-tip bracket can be installed.
Step 7. Assemble the surface burners
Do not operate the surface burners without all burner parts in place.
1. Position surface burner heads on
top of the surface burner manifolds
as shown at right. The electrodes
will fit into the slot in the bottom of
the heads. Make sure the surface
burner heads are flat and parallel
with the cooktop.
2. Place the matching size caps on top
of each surface burner head.
CAUTION
Model NX58F5300SS
Model NX58F5500SS/
NX58F5500SB/NX58F5500SW
