English - 8

LN40B0

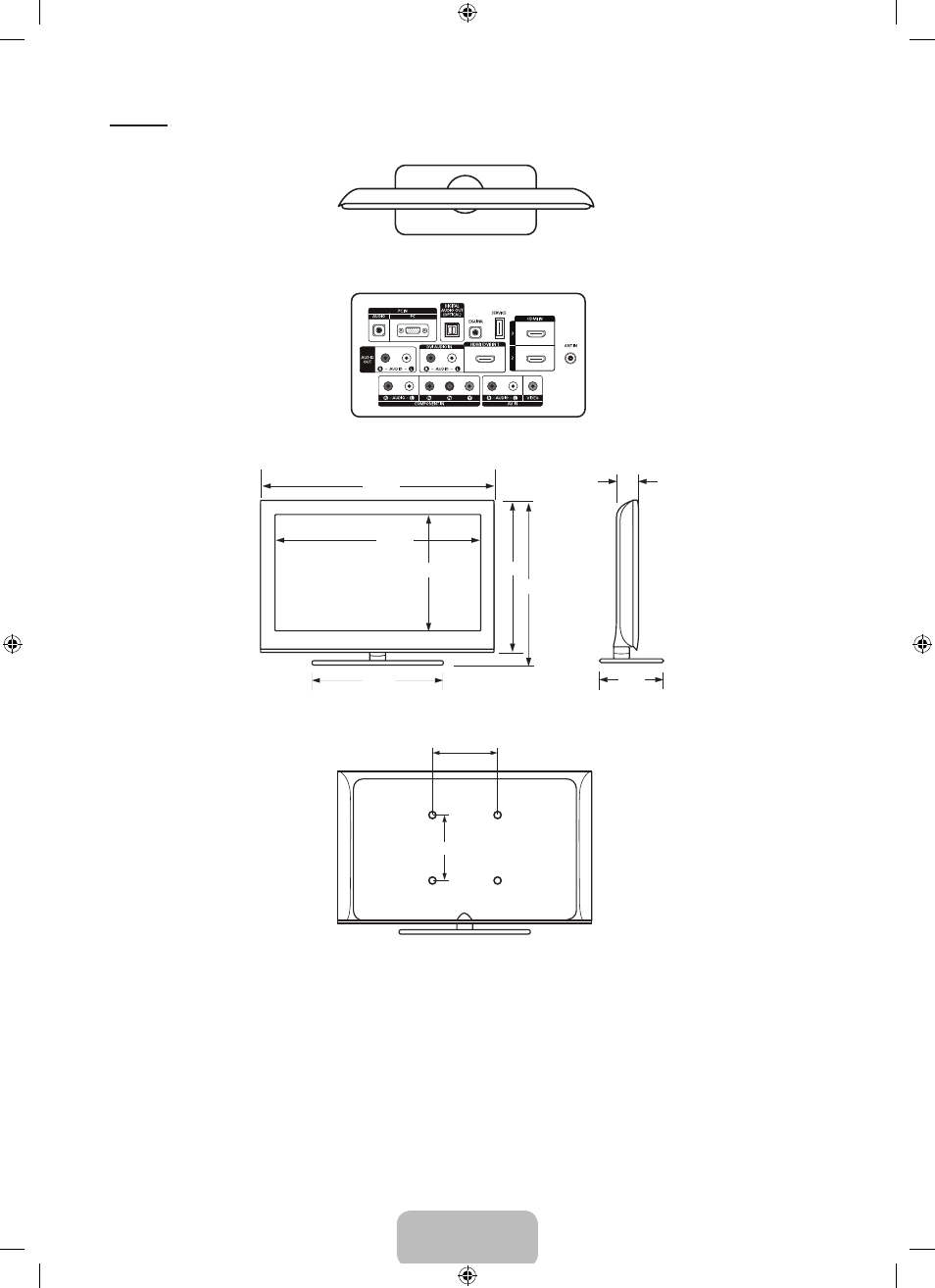

TOP VIEW

JACK PANEL DETAIL .7”H x 7.2”W

FRONT VIEW / SIDE VIEW

REAR VIEW

NOTE: All drawings are not necessarily to scale. Some

dimensions are subject to change without prior notice. Refer to

the dimensions prior to performing installation of your TV. Not

responsible for typographical or printed errors.

24.4

27.0

24.4

34.9

19.7

9.4

3.1

39.3

7.9 (200 mm)
