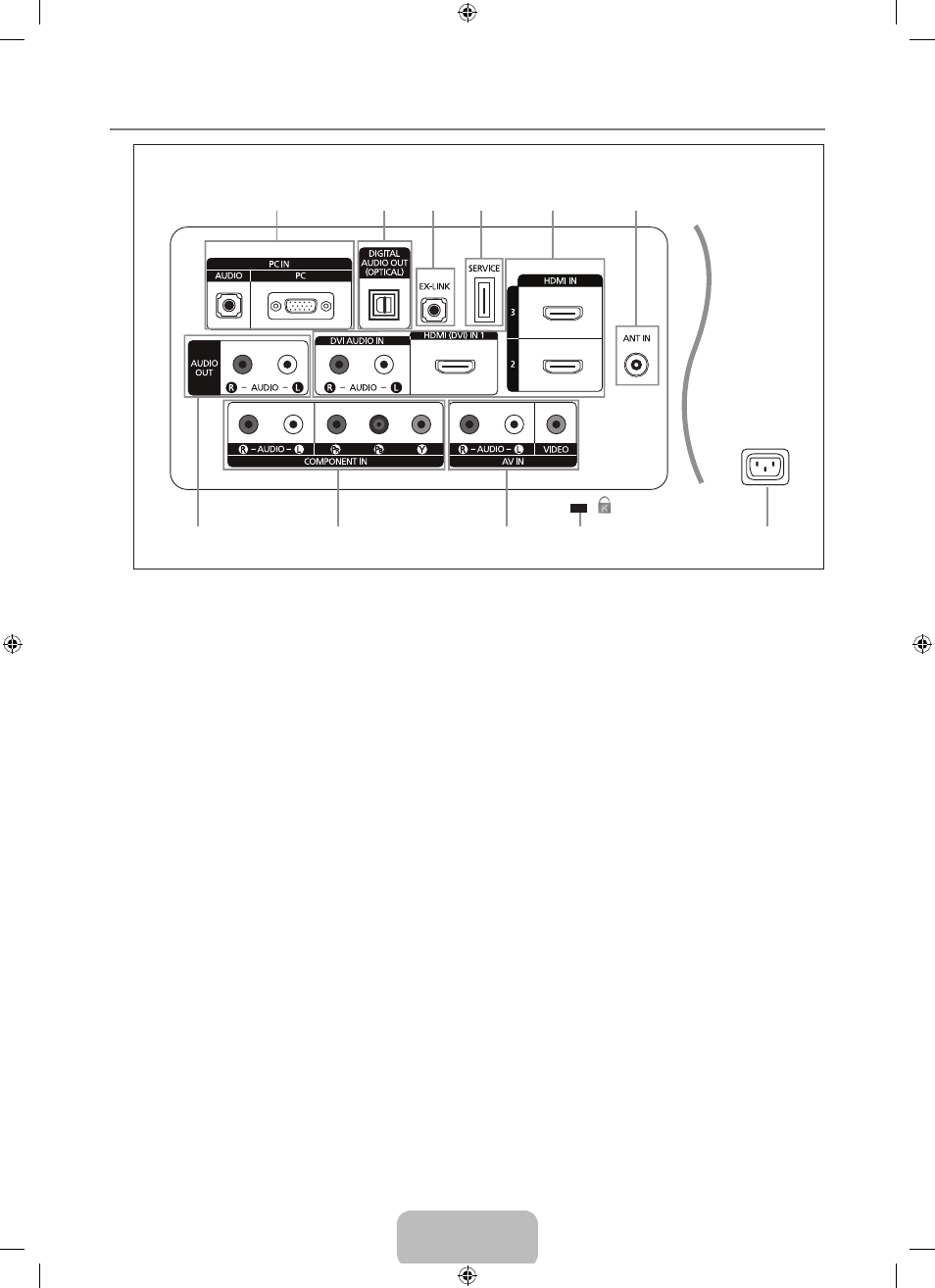

Viewing the Connection Panel
The product color and shape may vary depending on the model.
1 PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
2 DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component such as a Home theater receiver.
3 Ex-LINK
Connector for service only.
4 SERVICE
Connector for software upgrades.
5 HDMI (DVI) IN 1/ HDMI IN 2, / DVI AUDIO IN [R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI output.
No sound connection is needed for an HDMI to HDMI connection.
Use the HDMI (DVI) IN 1 jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI
adapter (DVI to HDMI) for video connection and the DVI AUDIO IN [R-AUDIO-L] jacks for audio.
When using an HDMI/DVI cable connection, you must use the HDMI (DVI) IN 1 jack.
You can also use the ports to connect to a PC.
6 ANT IN
Connects to an antenna or cable TV system.
7 POWER INPUT
Connects the supplied power cord.
8 KENSINGTON LOCK
The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. If you want to
use a locking device, contact the dealer where you purchased the TV.
The location of the Kensington Lock may be different depending on its model.
9 AV IN
Video and audio inputs for external devices, such as a camcorder or VCR.
0 COMPONENT IN
Connects Component video / audio.
! AUDIO OUT
Connects to the audio input jacks on your Amplifier/Home theater.
¦
N
–
–
–
–
–
N
N
N
N
–
–
–
N
–
–
–
1 2 3 4 5 6
9 8 7 0 !
[TV Rear Panel]
