I N S TA L L AT I O N
18
Connecting a DVD Player (480i)
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables between the
COMPONENT INPUT 1 (L,
R) or COMPONENT
INPUT 2 (L, R) jacks on
the TV and the AUDIO
OUT jacks on the DVD
player.
2
Connect a video cable
between the COMPO-
NENT INPUT 1 (Y, P
B ,
P R ) or COMPONENT
INPUT 2 (Y, P B , P R ) jacks
on the TV and the COM-
PONENT VIDEO OUT (Y,
P
B
, P
R
) jacks on the DVD
player.

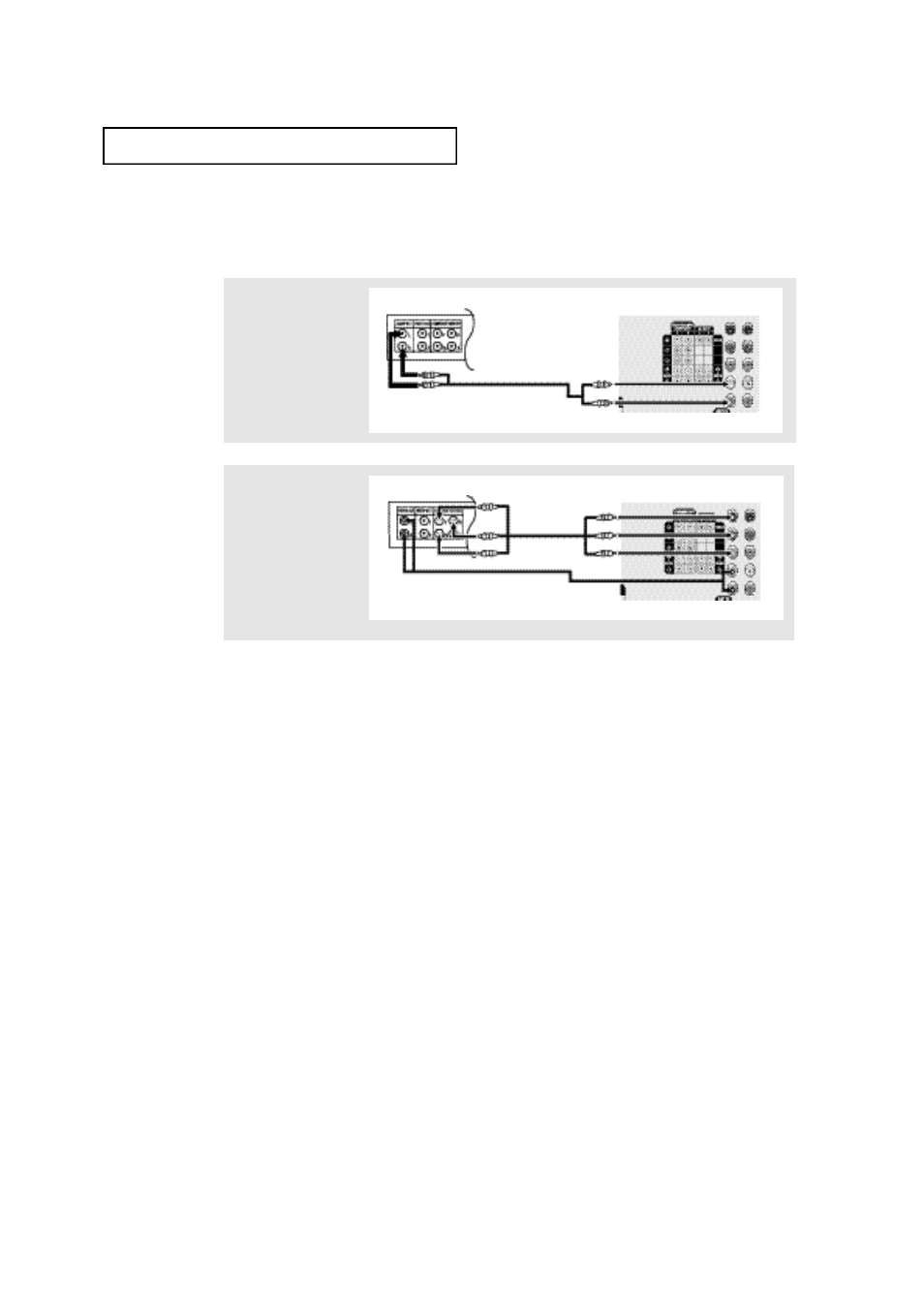

DVD Player Rear Panel TV Rear Panel
Audio Cable
DVD Player Rear Panel TV Rear Panel
Video Cable
Note: For an explanation of Component video, see your DVD player's owner's manual.
