Multifunction jack
Accepts the USB,
A/V cable or earphones
Mode dial (See below)
Microphone
Shutter button
Lens

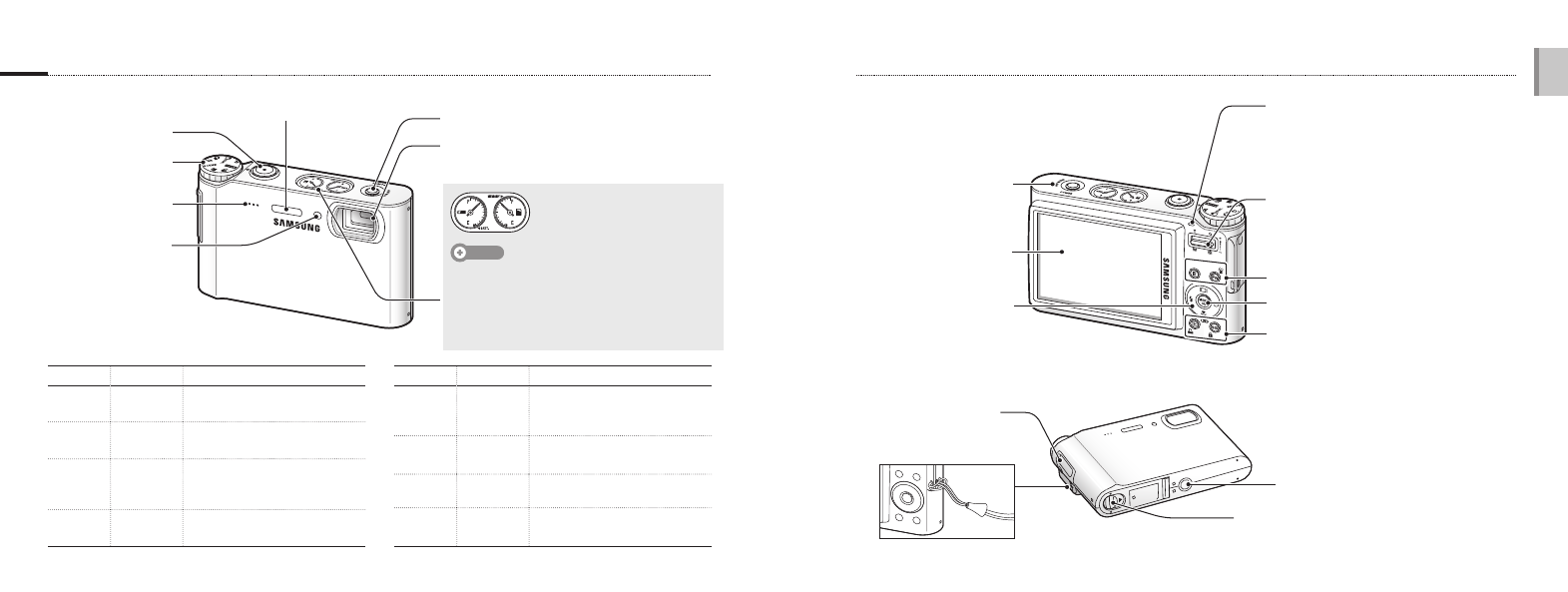

Camera layout
Mini dashboard
Shows you the remaining
capacity of the battery and
memory card
Note
When exposing the camera to a hot and humid
environment, condensation can form on the gauges.
If the hand of a gauge keeps spinning around,
contact a service center.
The battery gauge and the battery icons on the
display may show different capacities.
•
•
•
POWER button
Zoom button
Zoom in or out
Enter thumbnail view
Adjust volume
▪
▪
▪
Status lamp
Blinking: When saving a photo, recording
voice, being read by a PC or printer, or out
of focus
Steady: When connecting to a PC or in focus
▪
▪
Battery chamber cover
Insert a memory card and battery
Tripod mount
Speaker
Icon Mode Description
2
Auto
Take a photo quickly and easily
with minimal settings
1
Program Take a photo by setting options
7
Dual IS
Take a photo with options
suitable for reducing camera
shake
8 Photo Help
Guide Get shooting tips and practice
shooting
Icon Mode Description
5 Beauty
Shot
Take a photo of a person with
options to hide facial
imperfections
4
Scene
Take a photo with options for a
preset scene
3
Movie Record a video
6
Multimedia
Listen to MP3s, play videos, and
view text files
Flash
AF-assist light/
Timer lamp
MENU/OK button
Display
4-way navigation buttons
(Left: e, Right: t,
Up: w, Down: r)
E button, Fn button
y button, OIS button
