45
English

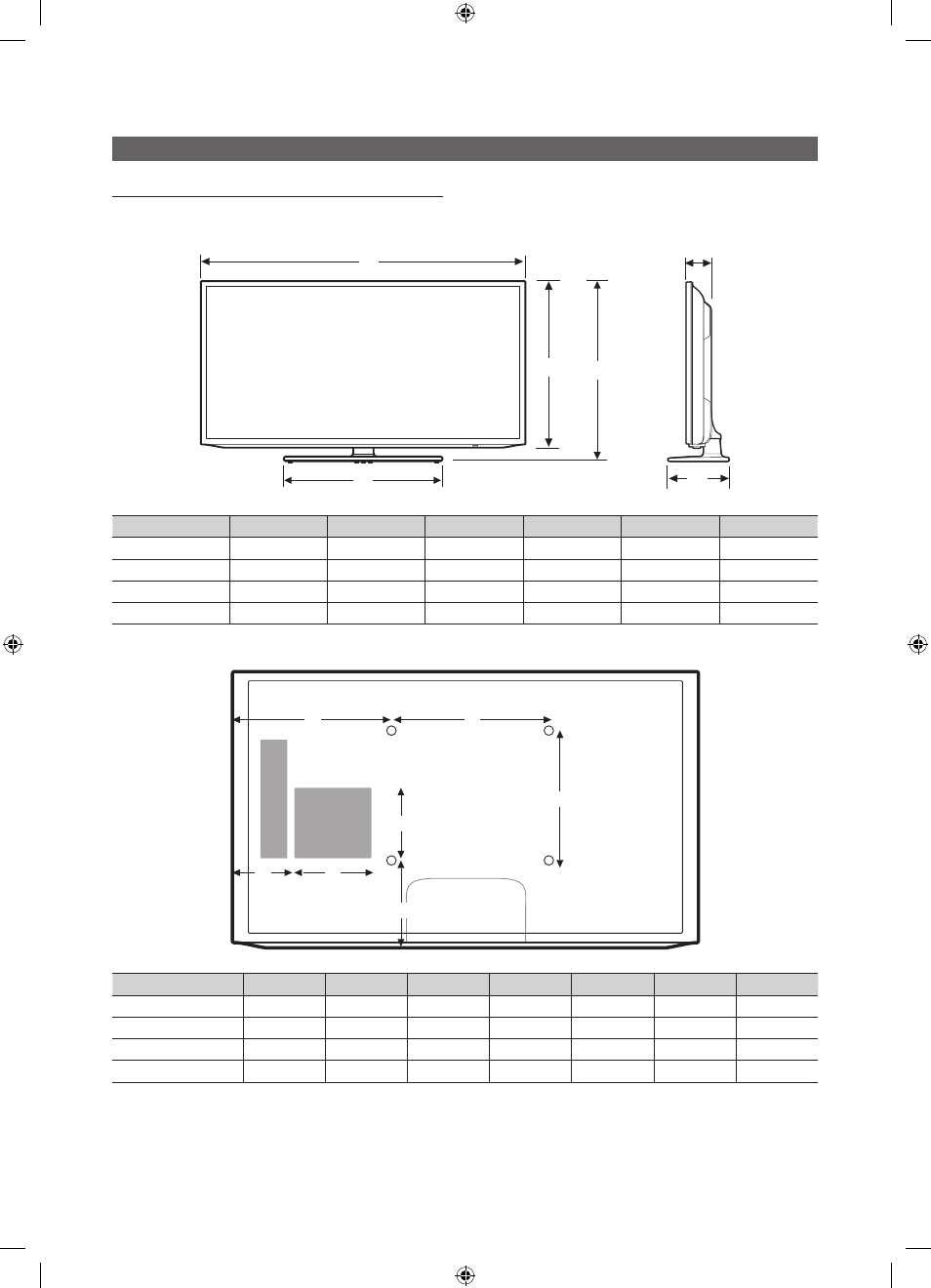

Dimensions
HG32NB690 / HG40NB690 / HG46NB690 / HG55NB690
▪ Front view / Side view
1
2
3 4
5
6
(Unit: inches)
1 2 3 4 5 6
HG32NB690 29.0 16.5 17.2 19.8 1.9 6.2
HG40NB690 36.5 20.3 21.4 24.0 1.9 8.9
HG46NB690 41.7 20.3 24.3 27.0 1.9 8.9
HG55NB690 44.7 20.3 25.9 31.2 1.9 8.9
▪ Jack panel detail / Rear view
6 7
3 2
5
4
1
1 2 3 4 5 6 7
HG32NB690 7.8 7.8 10.5 5.1 4.1 4.8 5.0
HG40NB690 7.8 7.8 14.3 5.1 6.1 6.9 5.0
HG46NB690 15.7 15.7 12.9 5.1 6.9 6.5 5.0
HG55NB690 15.7 15.7 16.7 5.3 9.6 9.3 5.1
