14
English

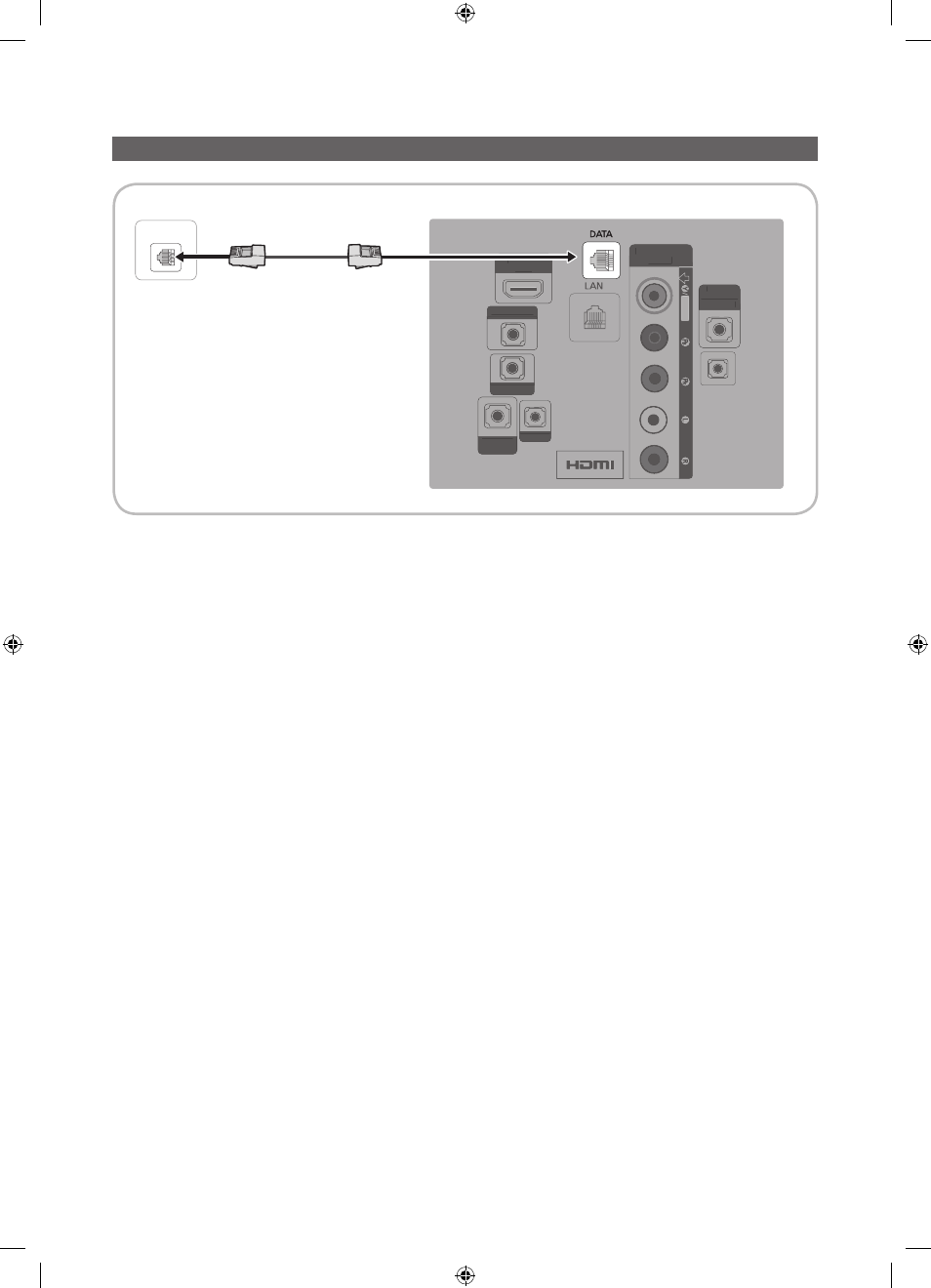

Connecting the TV to an SBB or STB
1. Connect the DATA jack of the TV to the ETH MODEM jack of the STB (SBB) with the Data cable.
✎
Data cables are polarized. Make sure you attach the end marked TV Side to the TV and the end marked STB Side
to the STB. Also make sure you use the correct data cable for your vendor.
ETH MODEM
AU
DI
O
B
VIDEIO
COMPONENT
/ AV IN HDMI IN 4
(ARC)
DVI AUDIO IN
AUDIO OUT
VARIABLE
AUDIO OUT
VOL-CTRL
DIGITAL
AUDIO OUT
(OPTICAL)
EX-LINK
AU
DI
O
B
VIDEI
O VIDEIO
COMPONENT
/ AV IN HDMI IN 4
(ARC)
DVI AUDIO IN
AUDIO OUT
VARIABLE
AUDIO OUT
VOL-CTRL
DIGITAL
AUDIO OUT
(OPTICAL)
EX-LINK
TV Rear Panel
Data Cable
