Network Connection - Wired

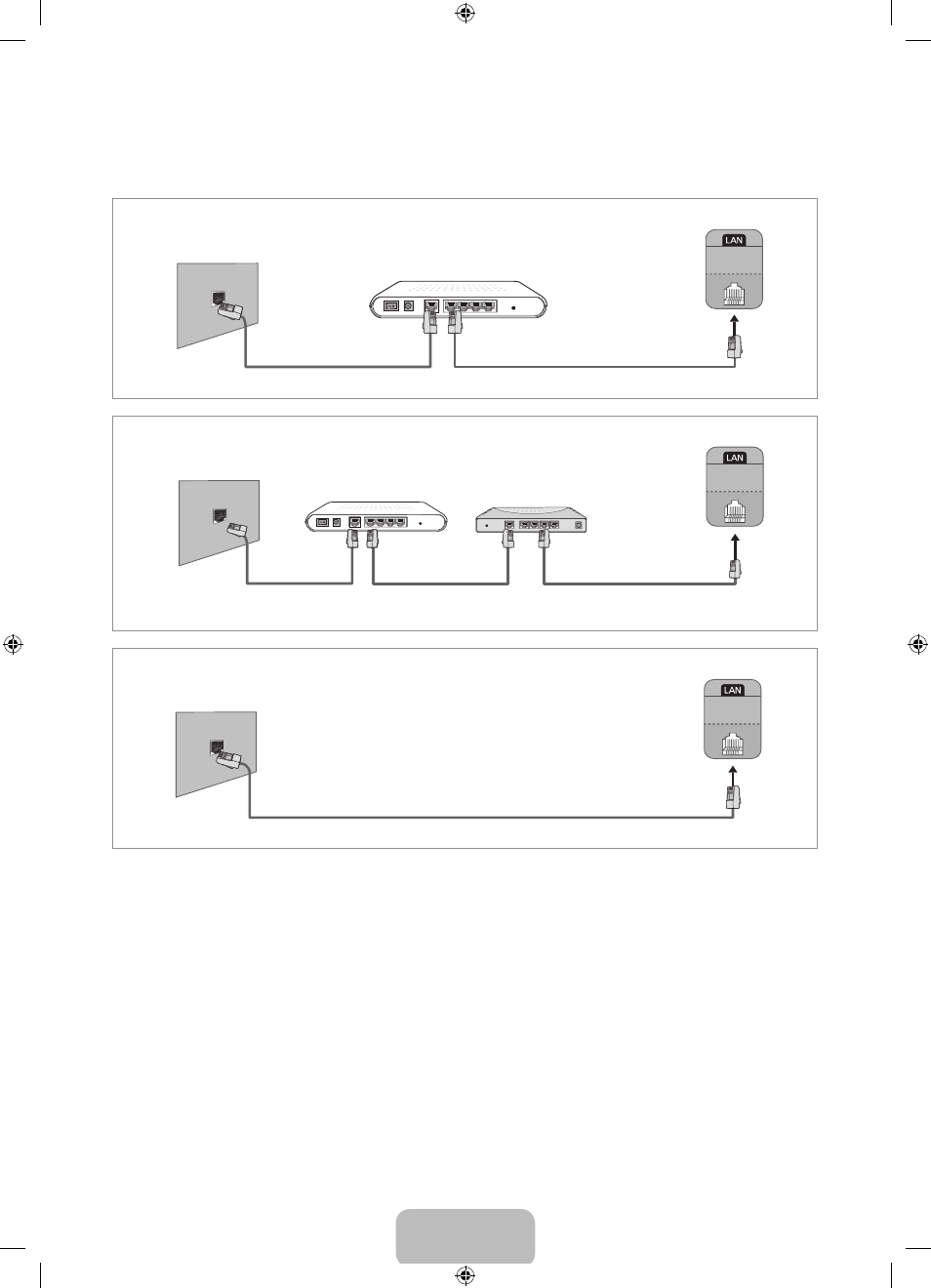

There are three main ways to connect your TV to your network using cable, depending on your network
setup. They are illustrated below:

The Modem Port on the Wall

Modem Cable (Not Supplied)

LAN Cable (Not Supplied)

TV Rear Panel

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

The Modem Port on the Wall

Modem Cable
(Not Supplied)

LAN Cable

(Not Supplied)

LAN Cable

(Not Supplied)

External Modem

(ADSL / VDSL / Cable TV)

IP Router that has a

DHCP Server

TV Rear Panel

The LAN Port on the Wall

LAN Cable (Not Supplied)

The TV does not support network speeds less than or equal to 10Mbps.

Use Cat 7 cable for the connection.
