9
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.

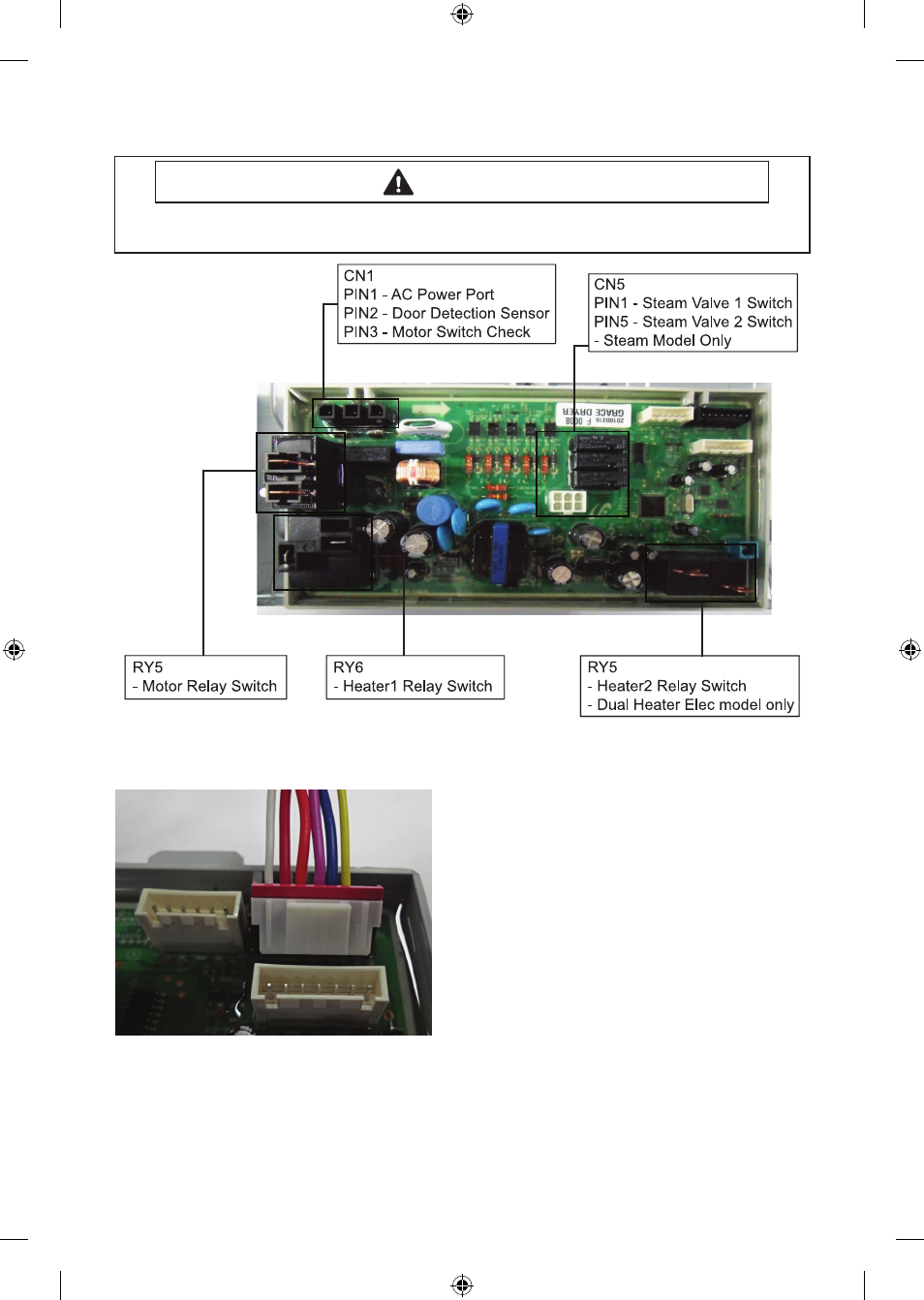

Sensor Bars & temperature sensor check
Sensor Bars - Disconnect harness and test Pink
wire Pin 4 to Orange wire Pin 5.
Approx ∞ Ω without laundry
Approx 190 Ω ± 10 % with wet clothes
Cycling Thermistor 1 - Disconnect harness and
test Blue wire Pin 3 to Red wire Pin 6.
Approx 10 KΩ at 25 °C / 77 °F
Vent Thermistor 2 (Vent sensor model only) -
Disconnect harness and test
Yellow wire Pin 2 to White wire Pin 7.
Approx 238.23 KΩ at 25 °C / 77 °F
