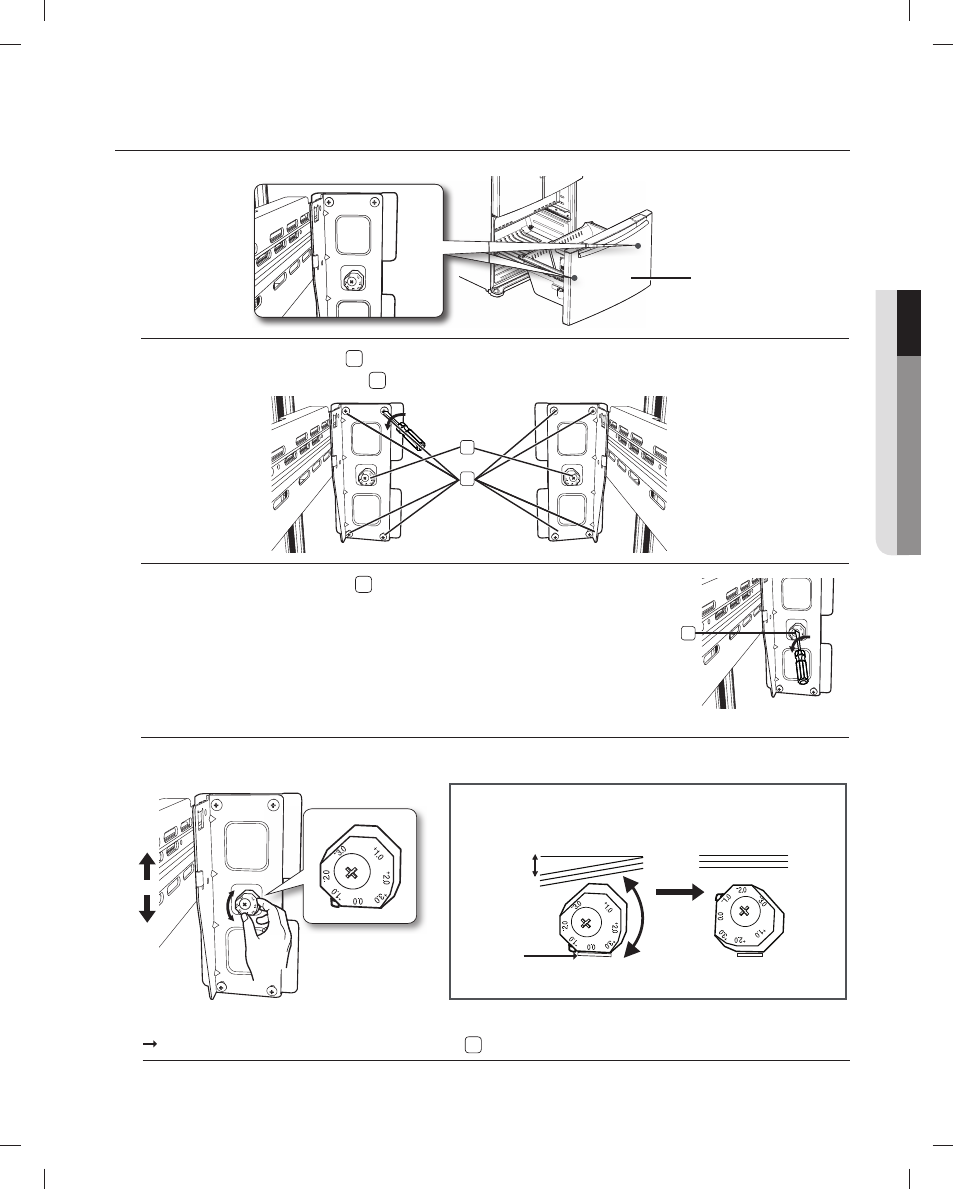

ADJUSTING THE FREEZER DRAWER LEVEL
1. Locate the height-adjuster (
1
) in the freezer drawer.
Unscrew the 8 Phillips screws (
2
) slightly to loosen the door.
2. Loosen the controller screw (
3
) with a Phillips screwdriver(+).
3. Find the best level to align the door slope.
After adjustment, tighten the controller screw (
3
) and philips screws.
Freezer Drawer
Adjustment part
Example) The slope is about 0.08”(2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
