PC Display

English - 128

Using Your TV as a Computer (PC) Display

How to Connect Your PC to the TV

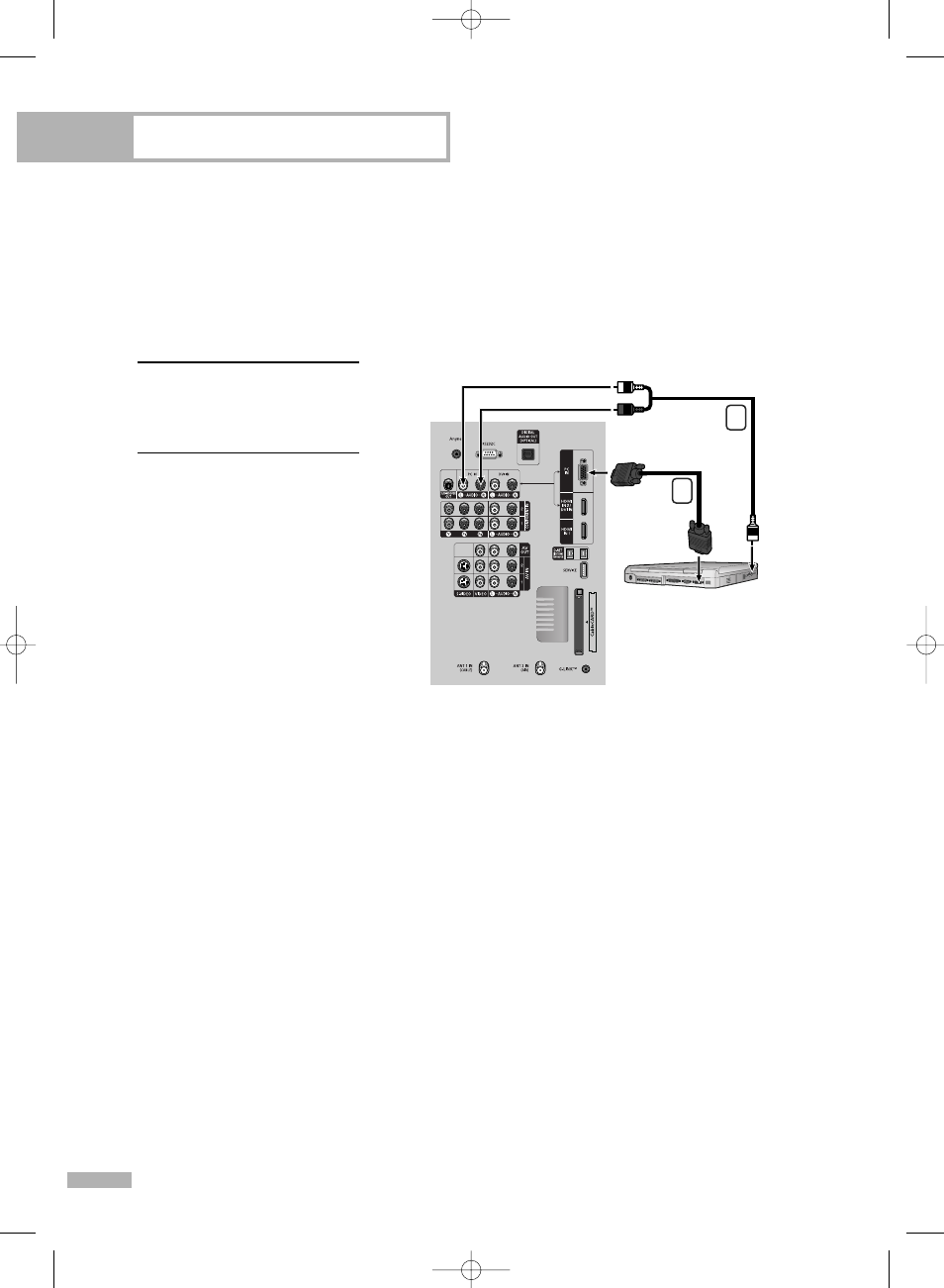

This figure shows the Standard Connector-jack panel. The actual configuration on your TV may be
different, depending on the model.

Connecting a PC (15p D-SUB) to the TV

1

Connect a PC cable between

the PC Output jack on the

PC and the RGB input jack
(PC IN) on the TV.

2

Connect a Audio cable
between the Audio jack on
the PC and the Audio input
jacks (PC AUDIO IN) on
the TV.

15Pin(D-Sub)

Cable

PC

Audio Cable

TV Rear Panel

1

2
