Page 6: Unpack, Front panel overview rear panel
ENG-5

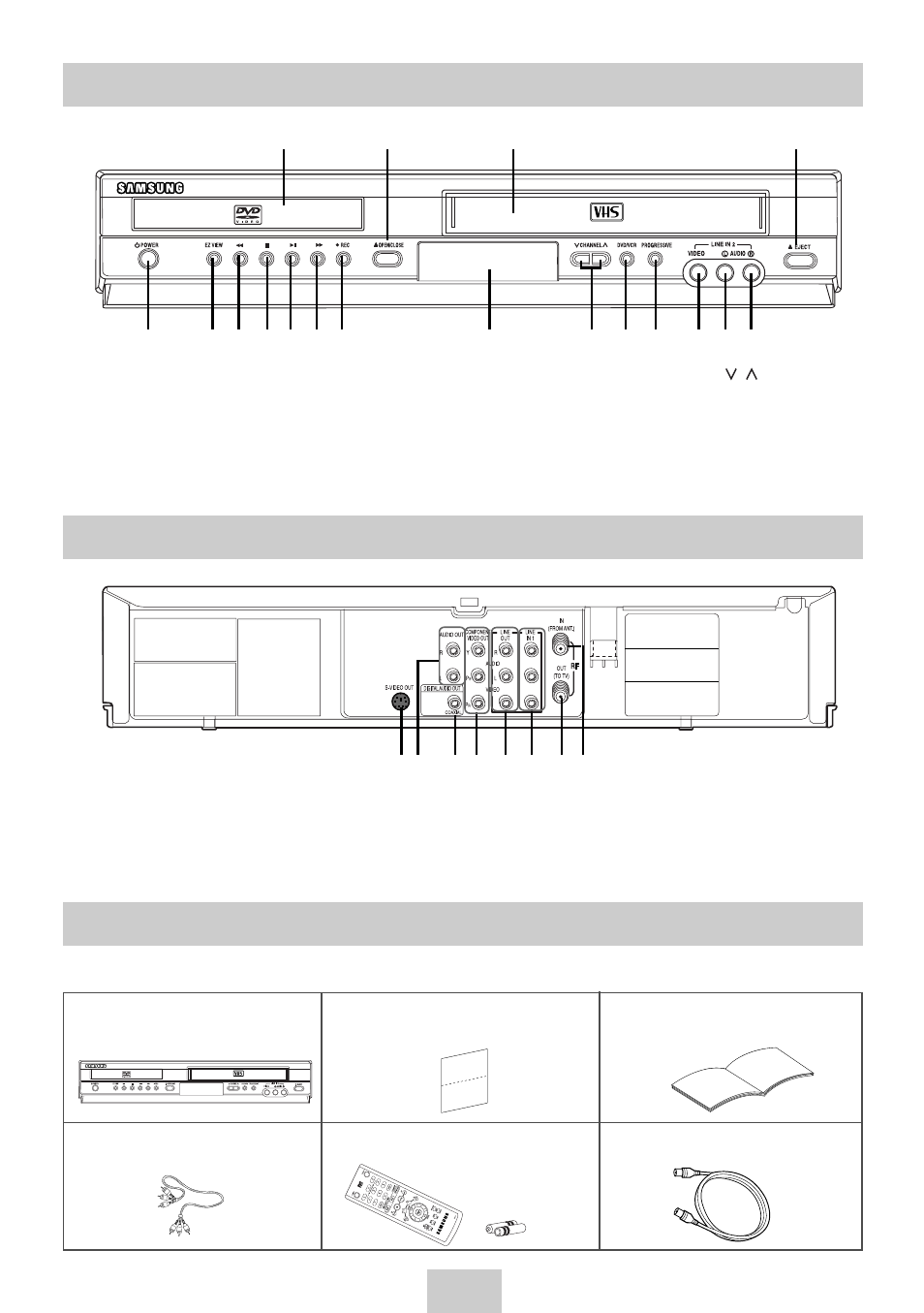

Front Panel Overview
Rear Panel
1
2
3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18
1
DVD DECK
2
DVD OPEN/CLOSE
3
VCR DECK
4
VCR EJECT
5
POWER
6
EZ VIEW
7
REWIND/REV
8
STOP
9
PLAY/PAUSE
10
FAST-FORWARD/FWD
11
RECORD
12
FRONT PANEL DISPLAY
13
CHANNEL
/
14
DVD-VCR SELECT
15
PROGRESSIVE
16
LINE IN 2 COMPOSITE VIDEO
JACK
17
LINE IN 2 LEFT AUDIO JACK
18
LINE IN 2 RIGHT AUDIO JACK
1 2 3 4 5 6 7 8
1
S-VIDEO OUT
2
AUDIO LINE OUT TO TV
(S-VIDEO OR COMPONENT)
3
DIGITAL AUDIO OUT(COAXIAL)
4
COMPONENT VIDEO OUT
5
LINE OUT TO TV
(COMPOSITE)
6
LINE IN 1
7
RF OUT TO TV
8
RF ANTENNA INPUT
When you unpack the DVD-VCR, please check the following list of items is included in the packing case.
Unpack
DVD-VCR
Registration Card
User’s Guide
(AD68-00078A)
(AK68-00522A)
Remote Control (AK59-00021C) &
1.5V “AAA” Batteries- 2EA (AC43-12002H)
RCA cable for
Audio/Video connection
(AC97-01746A)
RF (Radio Frequency)
Antenna Cable (AC39-42001J)
