Reattaching the Freezer Door
REATTACHING THE REFRIGERATOR DOORS

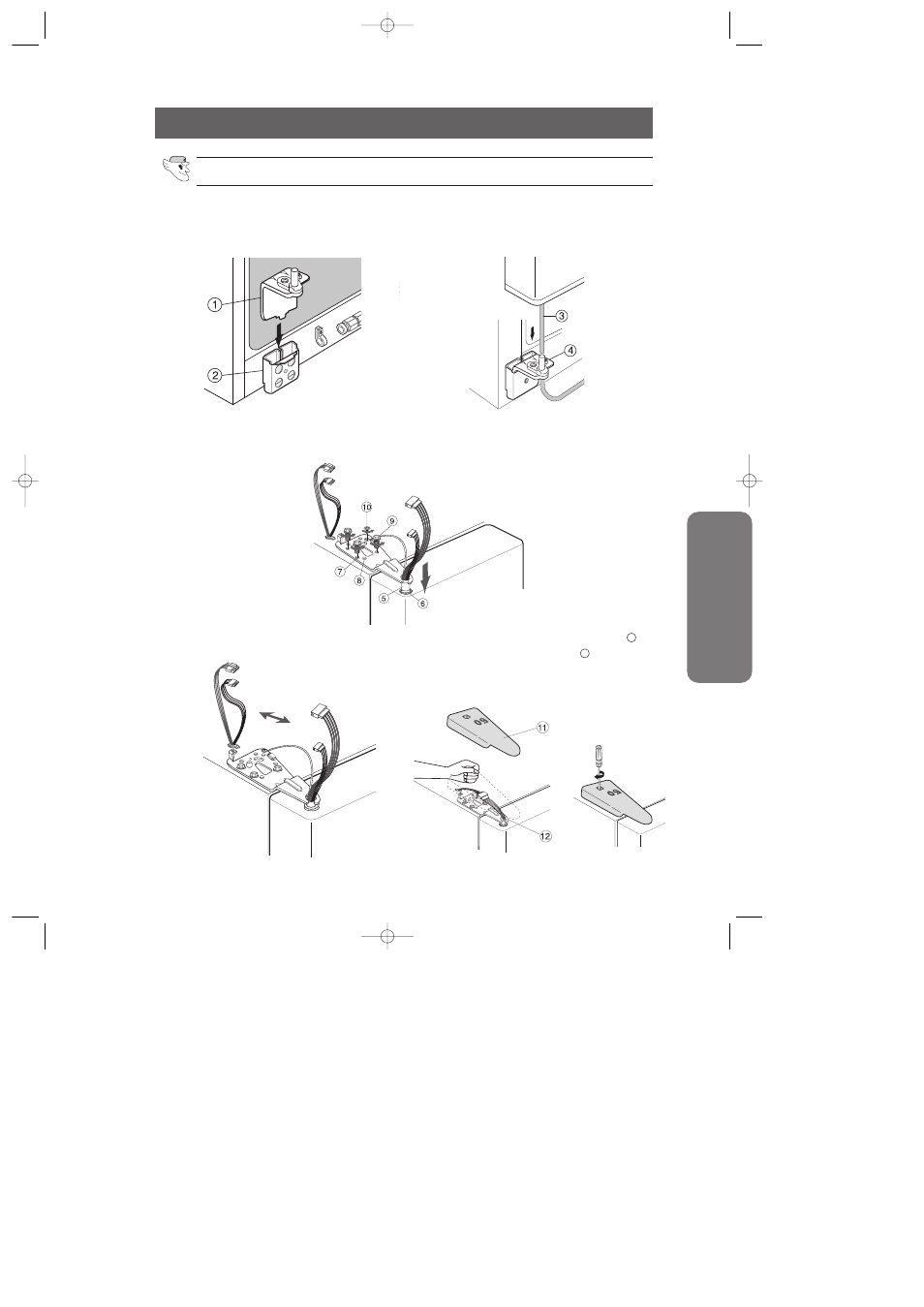

1) Insert the lower hinge ( ➀) in the bracket lower
hinge ( ➁).
2) Reattach the freezer door by inserting the hose
( ➂) in the lower side of the door into the hole in
the lower hinge ( ➃) and pulling the hose down.
3) Insert the upper hinge shaft ( ➄) into the hole (➅). After levelling between the upper hinge hole (➆) and
the hole of the cabinet ( ➇). reattach hinge screws (➈) and ground screw (➉) in a clockwise direction.
4) Connect the wires. 5) Put the front part of the upper hinge cover ( ) on
the front part of the upper hinge ( ) and reattach
from the front part of the upper hinge cover first.
