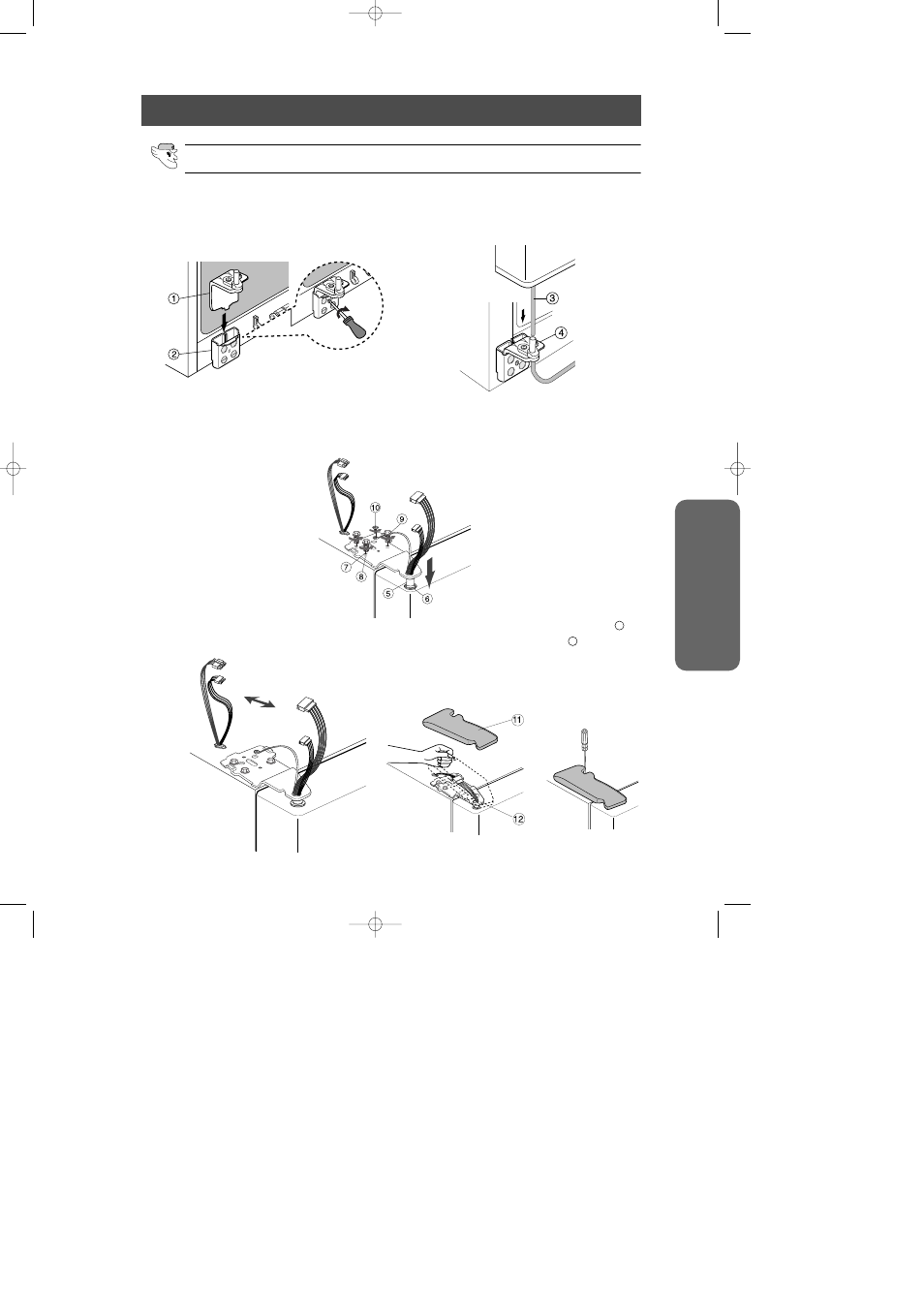

Reattaching the Freezer Door
REATTACHING THE REFRIGERATOR DOORS
1) Insert the lower hinge (
➀) in the bracket lower
hinge (
➁).
2) Reattach the freezer door by inserting the hose
(
➂) in the lower side of the door into the hole in
the lower hinge (
➃) and pulling the hose down.
3) Insert the upper hinge shaft (
➄) into the hole (➅). After levelling between the upper hinge hole (➆) and
the hole of the cabinet (
➇). Reattach hinge screws (➈) and gound screw (➉) in a clockwise direction.
4) Connect the wires.
5) Put the front part of the upper hinge cover ( ) on
the front part of the upper hinge ( ) and reattach
from the front part of the upper hinge cover first.
11
12
