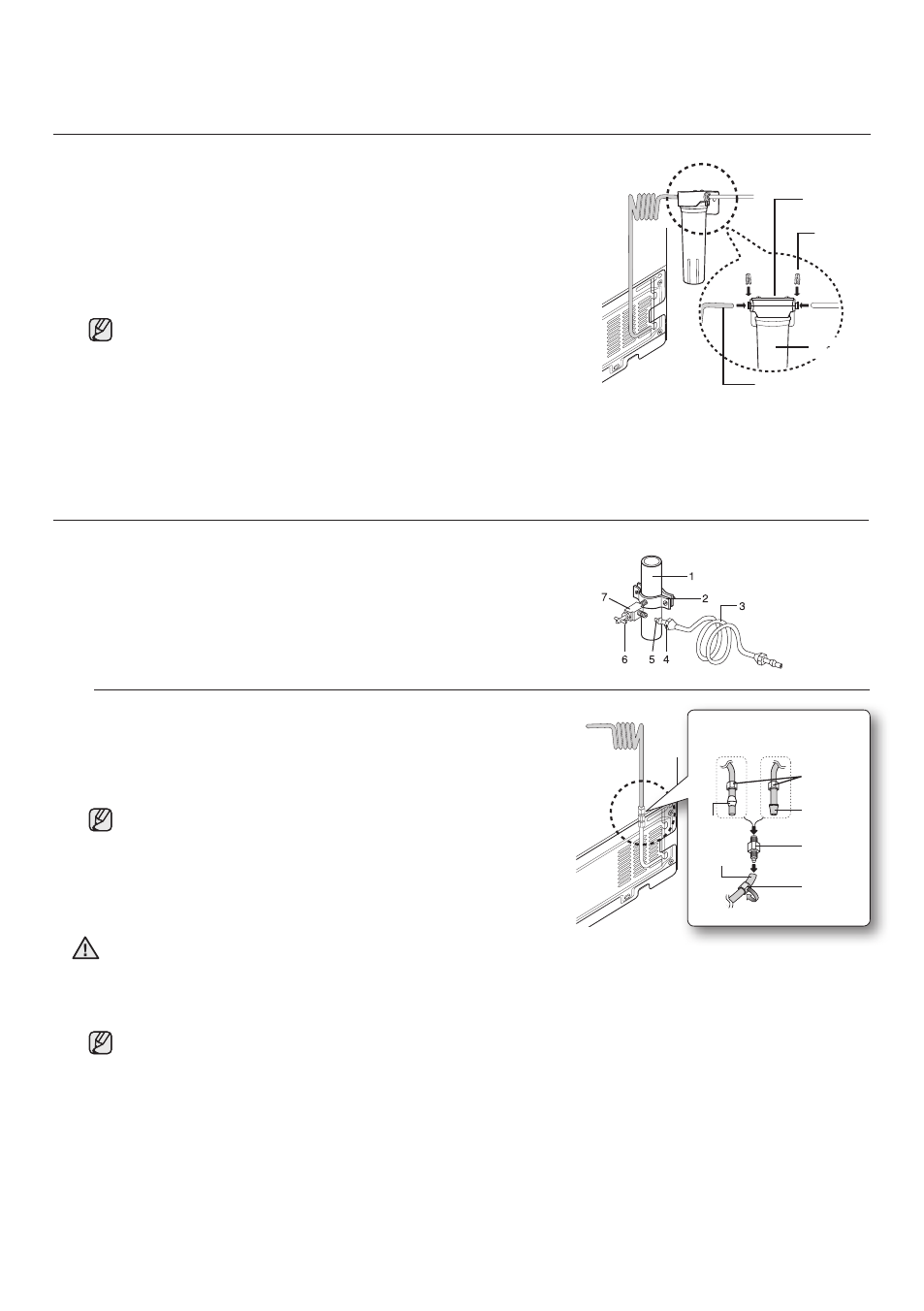

Connect the water line to the fridge
• Connect the plastic line on the back of your fridge to the
cartridge holder outlet (fully insert the plastic line to the cartridge
holder outlet).
• Insert plastic clip to the cartridge holder inlet and outlet.
• Turn water on and check for any leakage.
• You can purchase the necessary filter cartridge at the retailer
where you purchased this refrigerator. Make sure you buy the
SAMSUNG filter cartridge (Replacement cartridge No : DA29-
00015A) to ensure the best performance.
• Water line must be connected to drinkable water only
• A compression fitting and nut kit is supplied with the unit and it is inside the fridge drawer.
• When pushing the Refrigerator back, make sure you don’t roll over the power cord or water
line(Icemaker supply line)
Setting up your Refrigerator
Cartridge
Holder
Clip
Filter
cartridge
Plastic line
(Provided)
Connecting to the water supply line
• Shut off the main water supply line and turn the Ice maker to the
off position.
• Locate the nearest cold water drinking line.
To use without the water filter
1. Cold Water line
2. Pipe Clamp.
3. Plastic line
4. Compression Nut
5. Compression Sleeve
6. Packing Nut.
7. Shut Off Valve
Connect the water line to the fridge
1) Slip the compression nut through the plastic tubing.
2) After inserting the compression nut into plastic tubing,
tighten the compression nut onto 1/4” compression
fitting(Provided).
Do not overtighten the compression nut.
• Using Copper Tubing
- Slip the compression nut and ferrule on copper tubing as
shown.
• Using Plastic Tubing
- Insert the molded end(Bulb) of the plastic tubing into the
compression fitting.
Do not use without the molded end(Bulb) of the plastic tubing.
3) Tighten the compression nut onto the compression fitting.
4) Turn water on and check for any leakage.
• You can purchase the necessary filter cartridge at the retailer where you purchased this refrigerator.
Make sure you buy the SAMSUNG filter cartridge (Replacement cartridge No : DA29-00015A) to
ensure the best performance.
• Water line must be connected to drinkable water only.
• When pushing the Refrigerator back, make sure you don’t roll over the power cord or water line
(Icemaker supply line).
CAUTION
Household water line
Compression
Nut(1/4”)
(Purchased)
Compression
fitting (Provided)
Compression Nut
(1/4”) (Provided)
Bulb
Plastic Tubing
(Provided)
(Not supplied)
Copper tubing or Plastic tubing
Refrigerator
Ferrule
(Purchased)
12_ Setting Up
