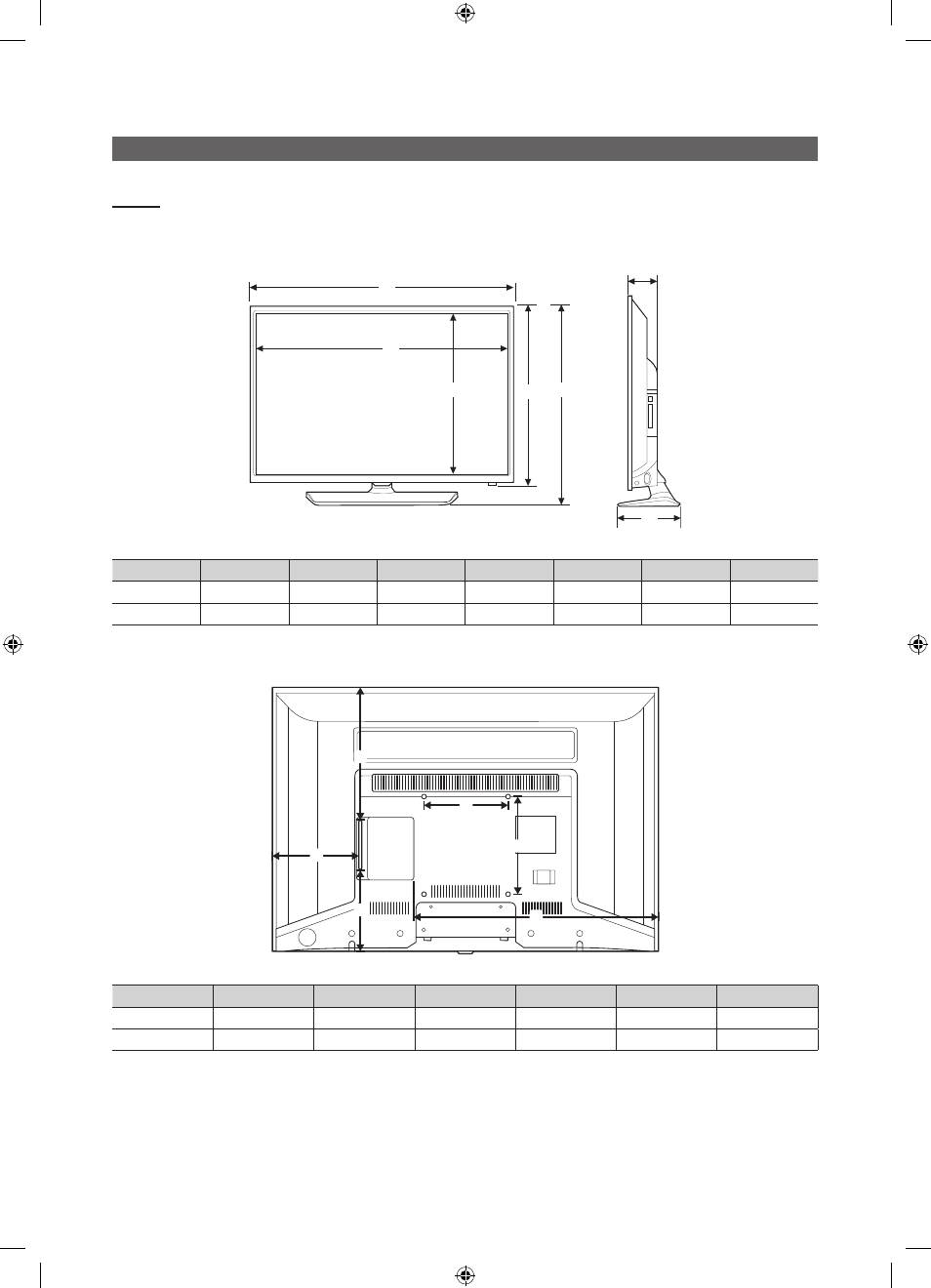

Dimensions

HC460

• Front view / Side view

1

2

4

3

5

7

6

(Unit: inches)

1

2

3

4

5

6

7

HG40NC460

36

35

19.7

21.6

23.1

7.7

3.6

HG48NC460

42.6

41.6

23.4

25.1

26.7

8.0

3.6

• Jack panel detail / Rear view

1

4

3

2

5

6

(Unit: inches)

1

2

3

4

5

6

HG40NC460

7.9

7.9

22.9

7.9

6.3

10.7

HG48NC460

7.9

7.9

26.3

11.2

8.2

12.6
