Removing the mainboard – Acer 4820T User Manual
Page 79
Chapter 3
69

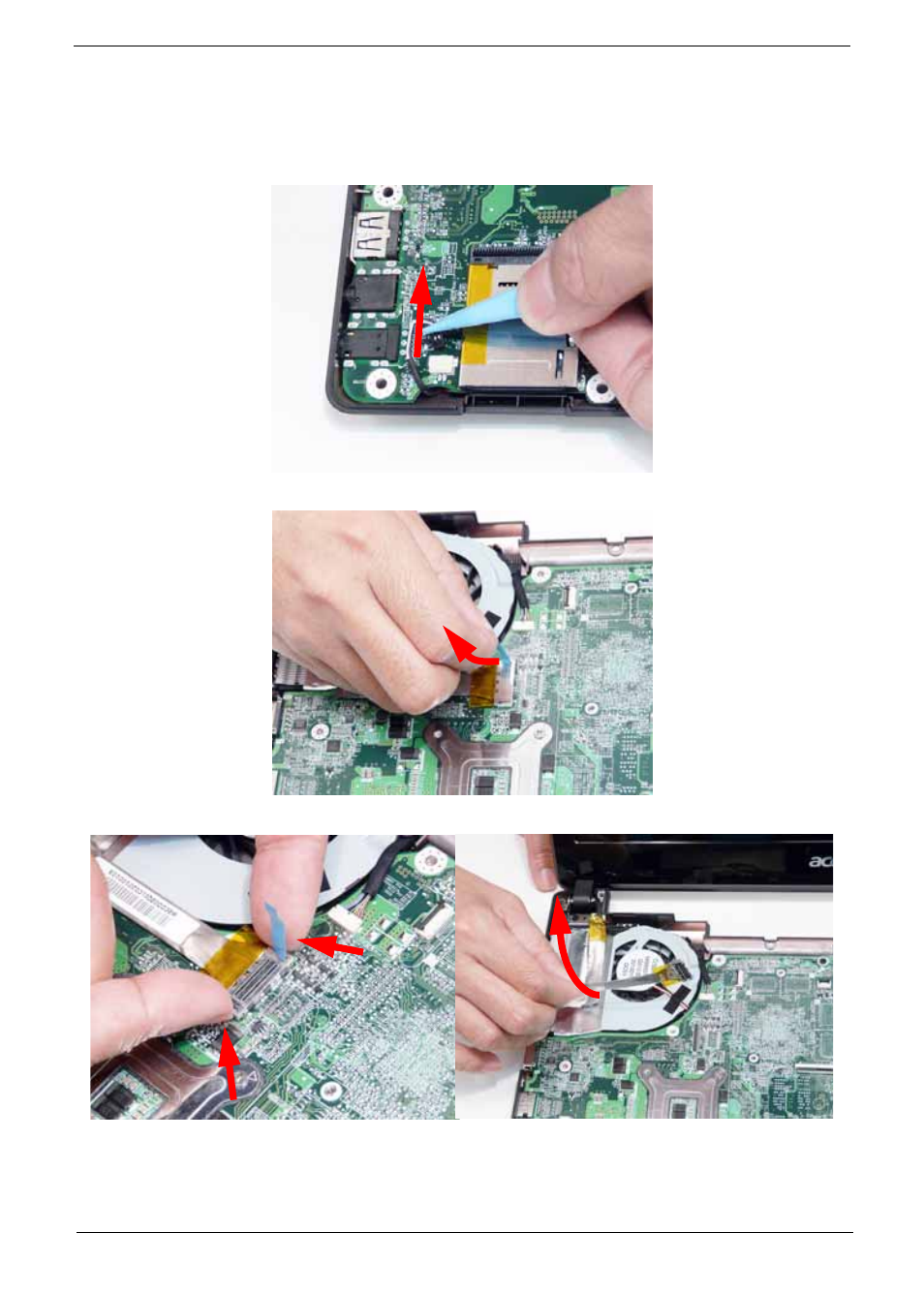

Removing the Mainboard
1. See “Removing the USB Board” on page 64.
2. See “Removing the Bluetooth Module” on page 67.
3. Disconnect the right speaker cable.
4. Remove the adhesive tape holding the LCD cable.
5. Push the side locks to release the cable from the mainboard. Remove LCD cable from fan module.
