MAX-AVM Audio-Video Module
11 MAX AOM and AVM Modules
MAX-AVM Audio-Video Module
Overview
The MAX-AVM Audio Video Module (FIG. 10) is a streaming DVD playback module that works in
conjunction with the MAX MMS MultiMedia Servers. The AVM provides A/V output in two formats:
VGA and S-Video, and features both analog stereo and coax digital audio outputs.
Product Specifications

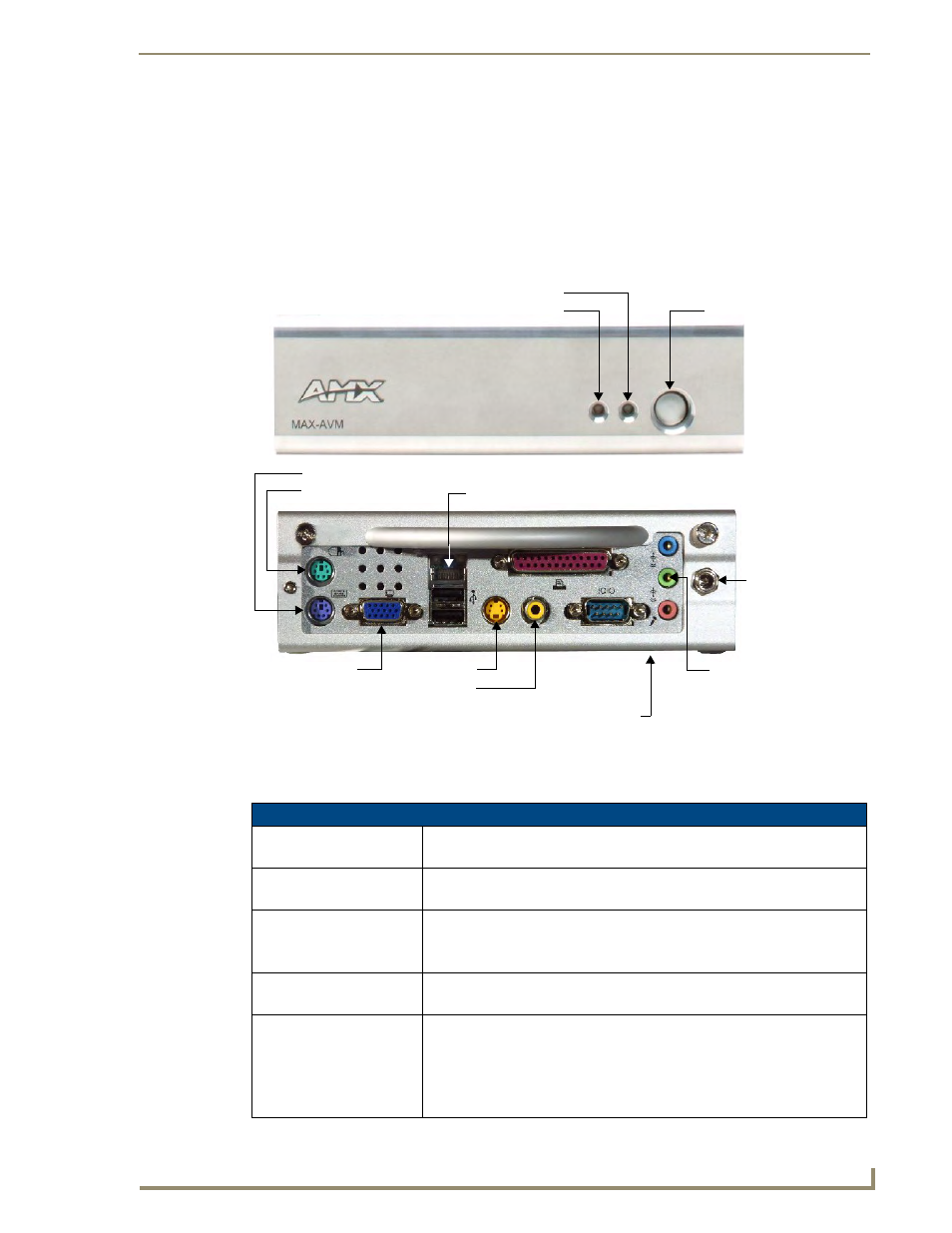

FIG. 10 MAX-AVM Audio Video Module
MAX-AVM (FG 2178-50) Specifications
Power: • 12VDC 5A external power supply (included)
• 110-240 VAC 50/60 Hz
AC Current Draw (AMP): • .47A - Bootup/Power Cycle Peak
• .41A - Normal Usage Peak
Video Output: • VGA video output: 1024 x 768 resolution @60 Hz.
• S-Video output: NTSC/PAL
• Aspect Ratio control: selectable 16:9 (wide screen) or 4:3.
Audio Output: • Digital: 6-channel Dolby digital and DTS
• Analog: Stereo
Front Panel Components: • Blue Power LED
• Blue hard drive activity LED
• Power button
• 1/4” DC power connector.
• PS/2 Keyboard and Mouse ports: for direct control of the AVM.
Ethernet (from MMS Server)
RCA (coax) digital audio out
S-Video Out VGA out Audio Line Out
Power Connector
Mouse port
Keyboard port
(for use with the included
RCA Y-adapter for analog
Setup Serial Number is printed on a decal on the bottom panel
Power LED
Hard Drive Activity LED Power button
(front)
(rear)
stereo output)
