Installation
9 39239

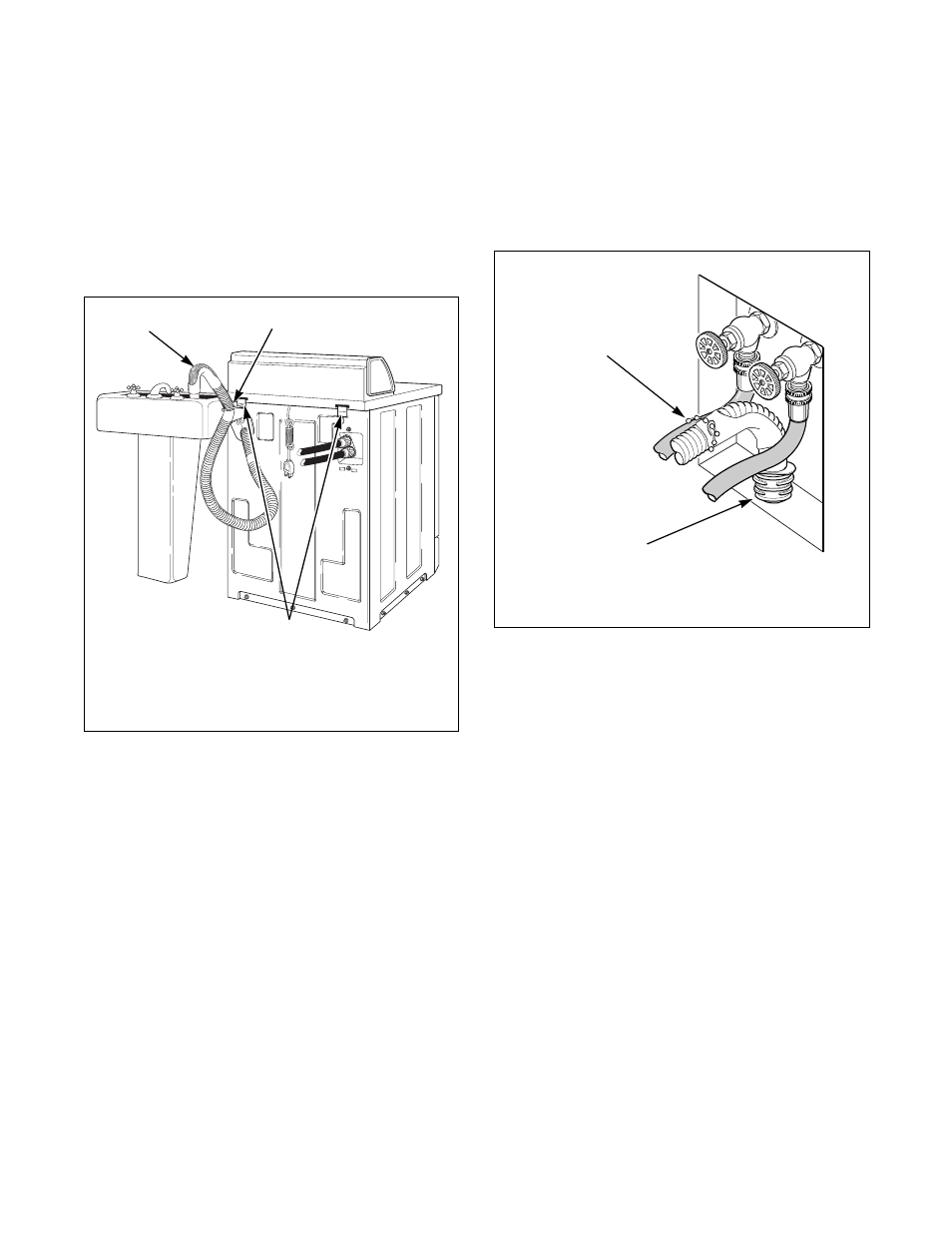

Sink Installation:
For this type of installation, use the beaded tie-down
strap (supplied in accessories bag), or use a large wire
tie (available from your local hardware store) and
secure the drain hose to the cabinet top hinge. Refer to
Figure 9
. This will prevent the drain hose from
dislodging during use.
It is recommended to leave the standpipe adapter on
the drain hose for this type of installation.
Figure 9
In the Wall Installation:
For installations of this type, the drain hose MUST be
secured to one of the fill hoses using the beaded tie-
down strap from accessories bag.
NOTE: End of drain hose must not be below height
of cabinet top.
Figure 10
TLW1963N
1 Drain Hose
2 Tie-Down Strap or Wire Tie
3 Cabinet Top Hinge
1
2
3
W329I
1 Tie-Down Strap (Tape if necessary)
2 Standpipe Adapter
1
2
