13

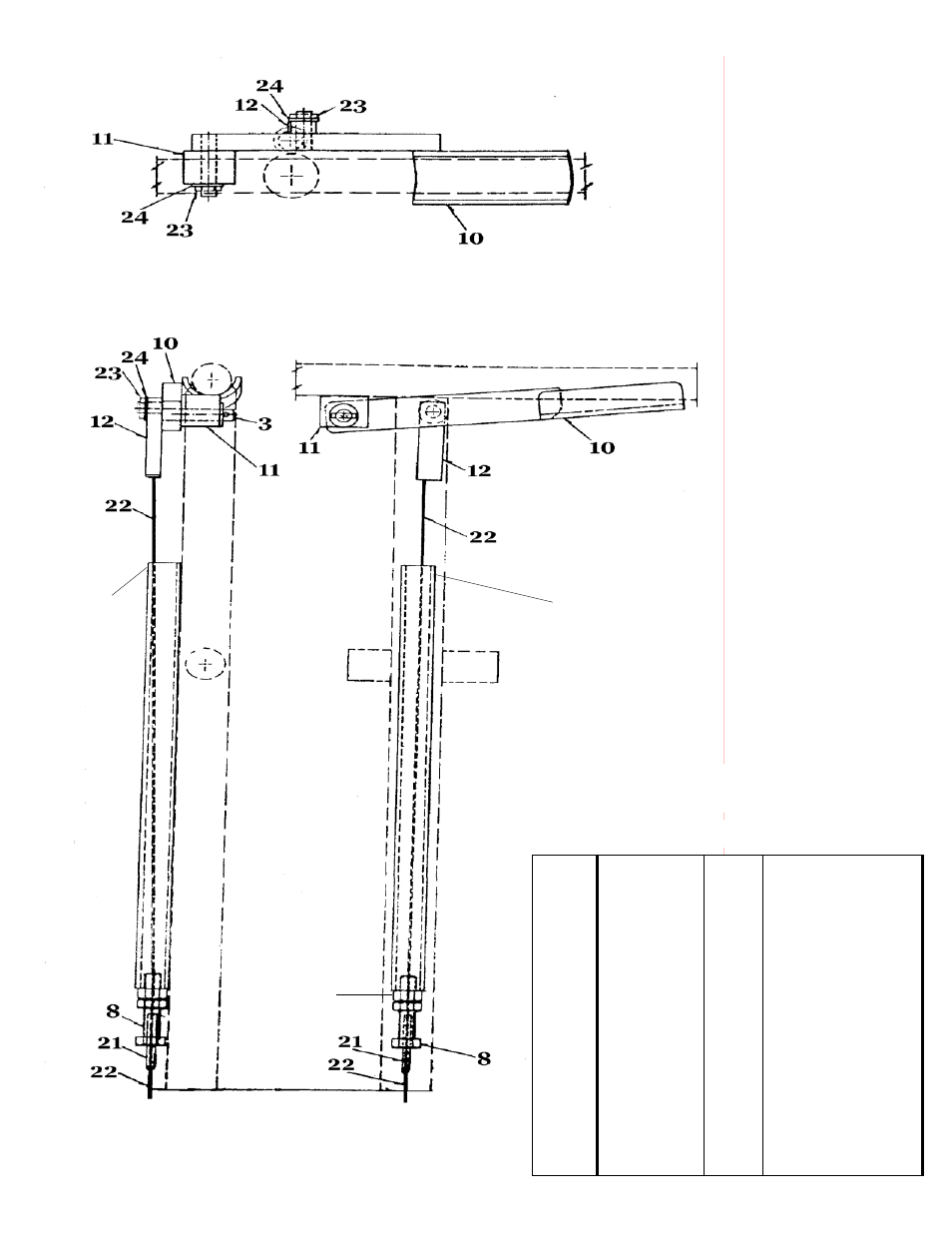

HANDLE VIEW – TOP DOWN

Item #

Part #

Qty

Description

8

DM-08

2

Clamp for Housing

10

DM-10

1

Brake Handle Assy

11

DM-11

1

Handle Pivot

12

DM-12

1

Pivot Cable Lock

15

DM-15

1

Cable Tube

21

DM-21

1

Cable Housing

22

DM-22

1

Cable, Stainless

23

DM-23 SS

4

Roll Pin, Stainless

24

DM-24

2

Washer

26

DM-26

1

Jam Nut

Handle Parts

HANDLE VIEW – SIDE

Drawing 5

15

15

26
