33 Owner’s Manual and Service Guide – PC & PCT Series
COMPONENTS – ELECTRICAL
BA TTERY D ISCHARGE I NDICATOR (BDI)

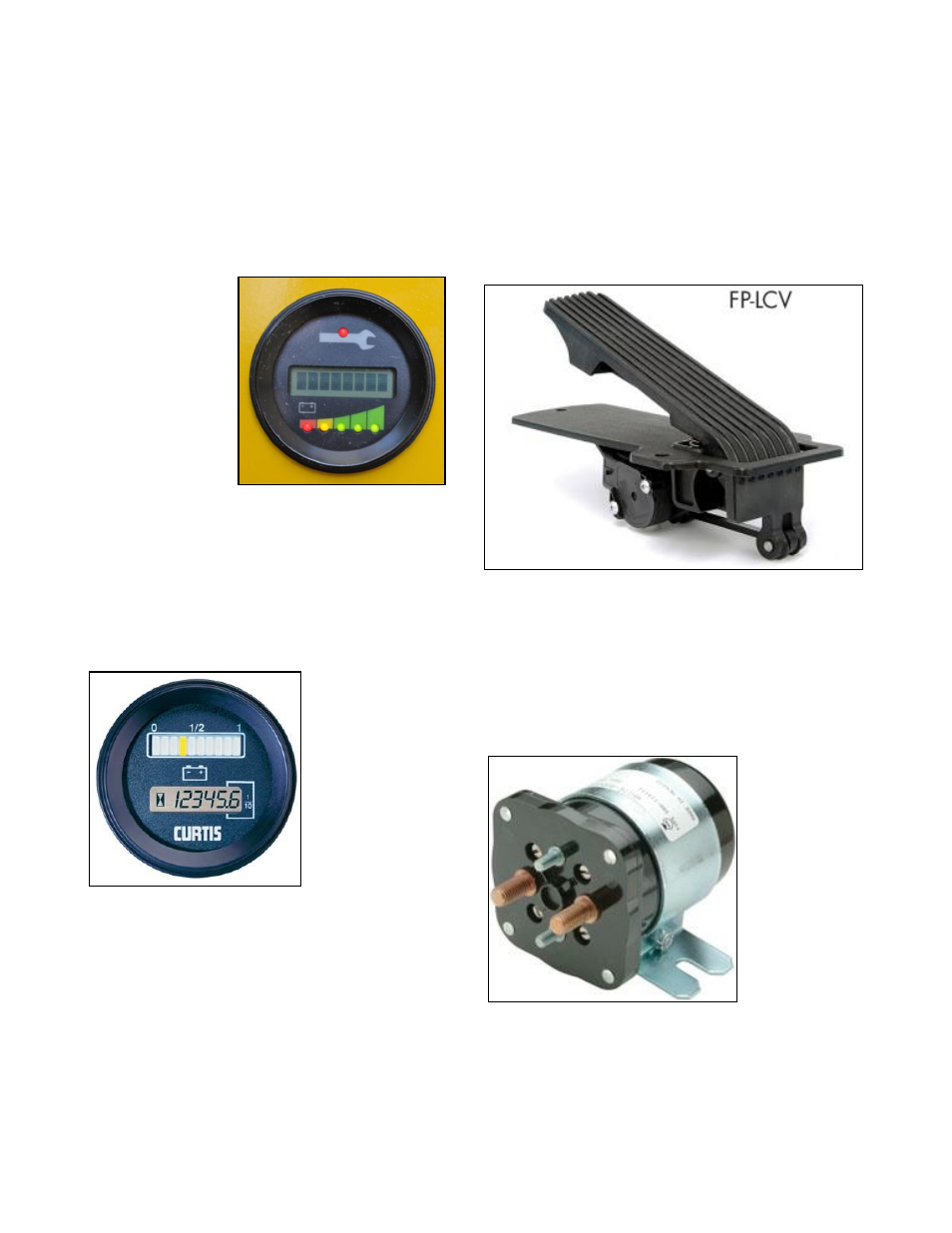

The Curtis BDI (Figure 29) shows the 24/36V version) displays
various system parameters, such as battery state-of-charge,
operating hours or maintenance status from the Curtis motor
controller.
Features include:

Attractive, easy-to-
read, 8 character dot
matrix Liquid

Crystal Display.
• 6 LEDs -five green
to indicate battery
state-of-charge and
one red to indicate
that
a fault has
occurred.
• Displays hours of
use, battery state-of-
charge
and
messages from the
Curtis
motor
controller.
• Molded-in rear Molex style connector provides a low-cost,
rugged and reliable installation.
• Front sealed (IP65) for use in harsh environments.
The BDI in 48 volt DC vehicles will display battery state-of-
charge and operating/ Traction hours only. (Figure 30):
Speed Control Pedal
The speed control pedal (Figure 31) is a rugged assembly with
IP66 throttle sensor protection for reliable use in harsh industrial
environments.
There are no user serviceable parts in the speed control pedal.
No attempt should be made to open, repair, or otherwise modify
the assembly. Doing so may damage the assembly and will void
the warranty.
F IGURE 31
S OLENOID
The Pack Mule is provided with a SPNO DC Power Contactor.
This unit is sealed and is water resistant. The coil voltage is
matched to your particular vehicle operating voltage, i.e. 36V or
48V. The AC option uses 24V coil regardless of vehicle system
voltage. (Figure 32)
F IGURE 32
F IGURE 29
F IGURE 30
