COMPONENTS - ELECTRICAL
B ASIC E LECTRICAL C OMPONENTS
Your Pack Mule electric vehicle is purposely designed around the “Keep it Simple” principal. Our philosophy at Wesley
International is to engineer products with only the critical components necessary to meet the demanding industrial environment,
cutting out an
y unnecessary “bells and whistles” which only increase ownership costs. The following core components make up

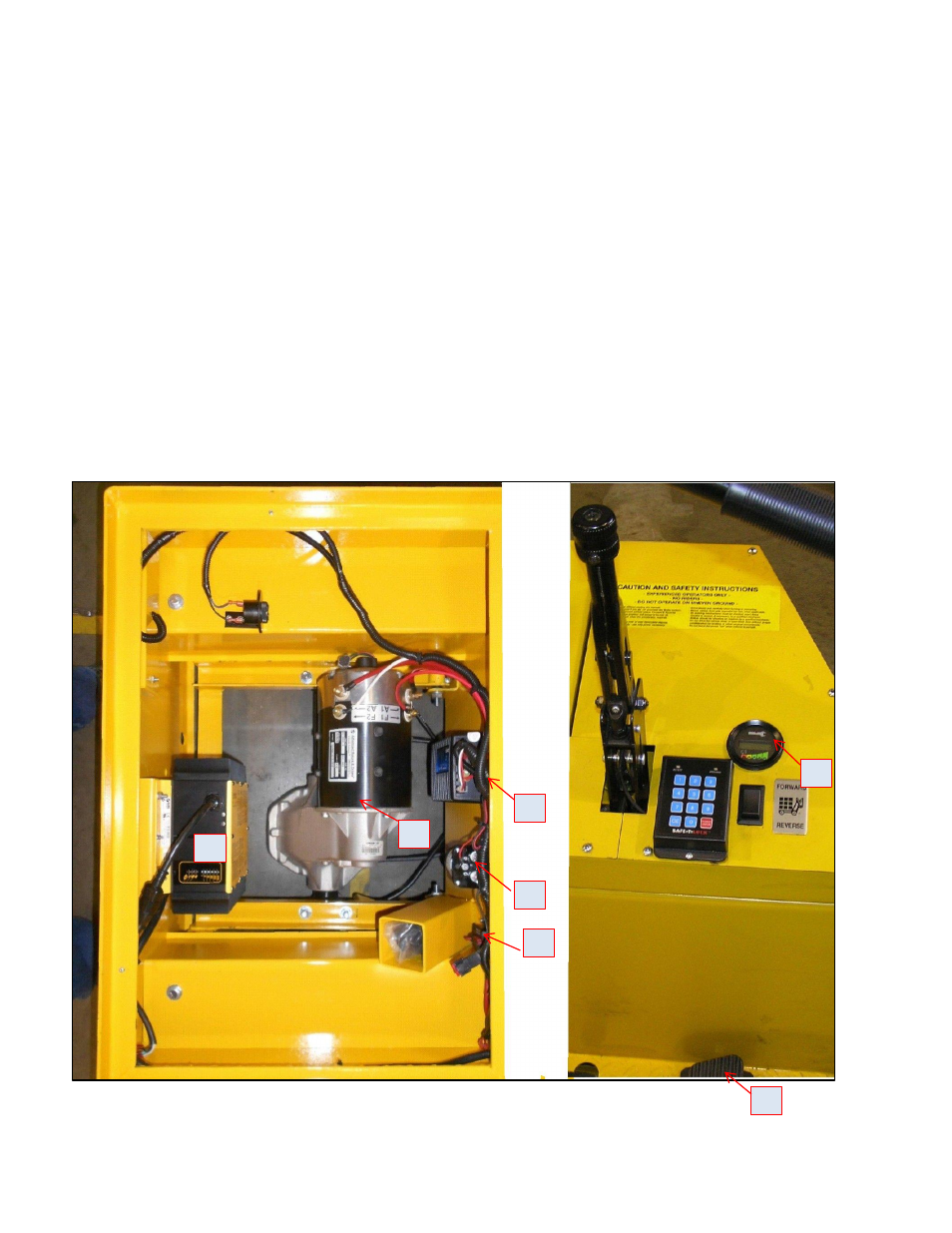

the electrical portion of the vehicle:
1) Battery Charger
2) Batteries ( shown on page 21 )
3) Motor
4) Controller
5) Battery Discharge Indicator (BDI)
6) Speed Control Pedal
7) Solenoid
8) Circuit Breaker
This section will cover each of these core components (except batteries which is covered in the Maintenance section), including
troubleshooting.
