Basic Mechanical Components
T

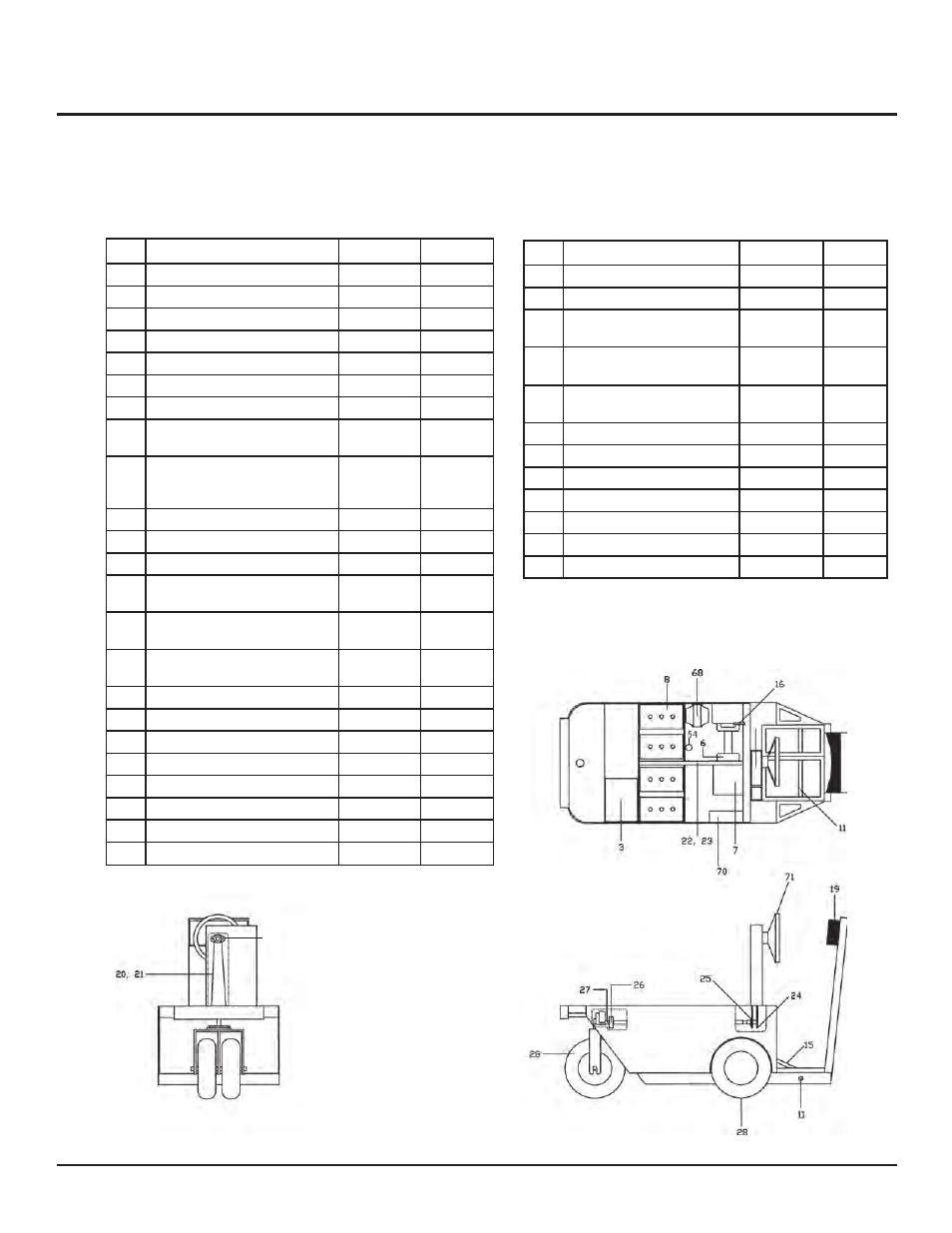

he following diagram shows the basic mechanical components in all Pack Mule and Power Mule
vehicles. Although this is a drawing of the Stock Chaser SC 775, it generally applies to all vehicles.
25A
#
Description
Part #
Qty
3
Caution Sticker
EV-A003
2
6
Transaxle 29˝ (4 lug)
EV-D007
1
6
Transaxle 32˝ (4 lug)
EV-D031
1
6
Transaxle 32˝ Tugger (5 lug)
EV-D041
1
6
Transaxle 36˝ (4 lug)
EV-D036
1
6
Transaxle 36˝ Tugger (5 lug)
EV-D037
1
7
Motor, Separated Excited
EV-D040
1
7
Motor, Brush Assembly
(Separated Excited Motor)
EV-E193
1
8
Battery, 6 volt, 220 amp
Not for resale
4 - 24 volt
6 - 36 volt
8 - 48 volt
8
Battery, 6 volt, 245 amp
Not for resale
4, 6, 8
8
Battery, 8 volt
Not for resale
6
11
Treadle Rod
EV-F022
1
15
Accelerator Pedal
(Standing Vehicles)
EV-F034
1
15
Accelerator Pedal
(Sit-down Vehicles)
EV-528
1
16
Electronic Throttle Control
Assembly
EV-E278
1
19
Backrest Pad (Seated Vehicles)
EV-F037
1
20
Drive Chain #40
EV-S001
1
21
Master Link
EV-S002
1
22
Steer Rod (Stock Chaser)
EV-S008
1
23
Insulator, Steering
EV-S009
1
24
Lower Steering Sprocket
EV-S029
1
25
Flange Bearing
EV-S033
2
25A
Insert Bearing
EV-S011
1
#
Description
Part #
Qty
26
Pillow Block
EV-S021
1
27
Pinion Gear
EV-S022
1
28
Pneumatic Tire/Rim Assembly
(4 lug)
EV-W002
4
28
Pneumatic Tire/Rim Assembly
(5 lug)
EV-W037
4
28
Lug Nut
EV-W023
4 or 5
per wheel
54
Solenoid, 4 Terminal
EV-E014 HD
1
66
Charger Cord
EV-E026
1
68
Battery Charger, 24 volt, 25 amp
EV-E028
1
68
Battery Charger, 36 volt, 25 amp
EV-E075
1
68
Battery Charger, 48 volt, 25 amp
EV-E099
1
70
Controller
EV-E177
1
71
Steering Wheel
EV-S037
1
