SPECIFICATION SUMMARY
SS-6
SS-10
SS-20
24 Volt
System Volts
(V)
12
12
12
24
Maximum PV Volts
(V)
25
25
25
44
Rated PV Input
(A)
6.5
10
20
n/a
Rated Load
(A)
6
10
20
n/a
Maximum array short
(A)
8.1
12.5
25
n/a
circuit current
Setpoints:
Sealed PWM
(V)
14.1
14.1
14.1
28.2
Flooded PWM
(V)
14.4
14.4
14.4
28.8
LVD
(V)
11.5
11.5
11.5
23.0
LVD Reconnect
(V)
12.6
12.6
12.6
25.2
Ambient Temp Range
(°C)
–40 to 60
–40 to 60
–40 to 60
–40 to 60
Temp Compensation
(mV/°C)
–28
–28
–28
–56
0.50
(13)
1.32
(34)

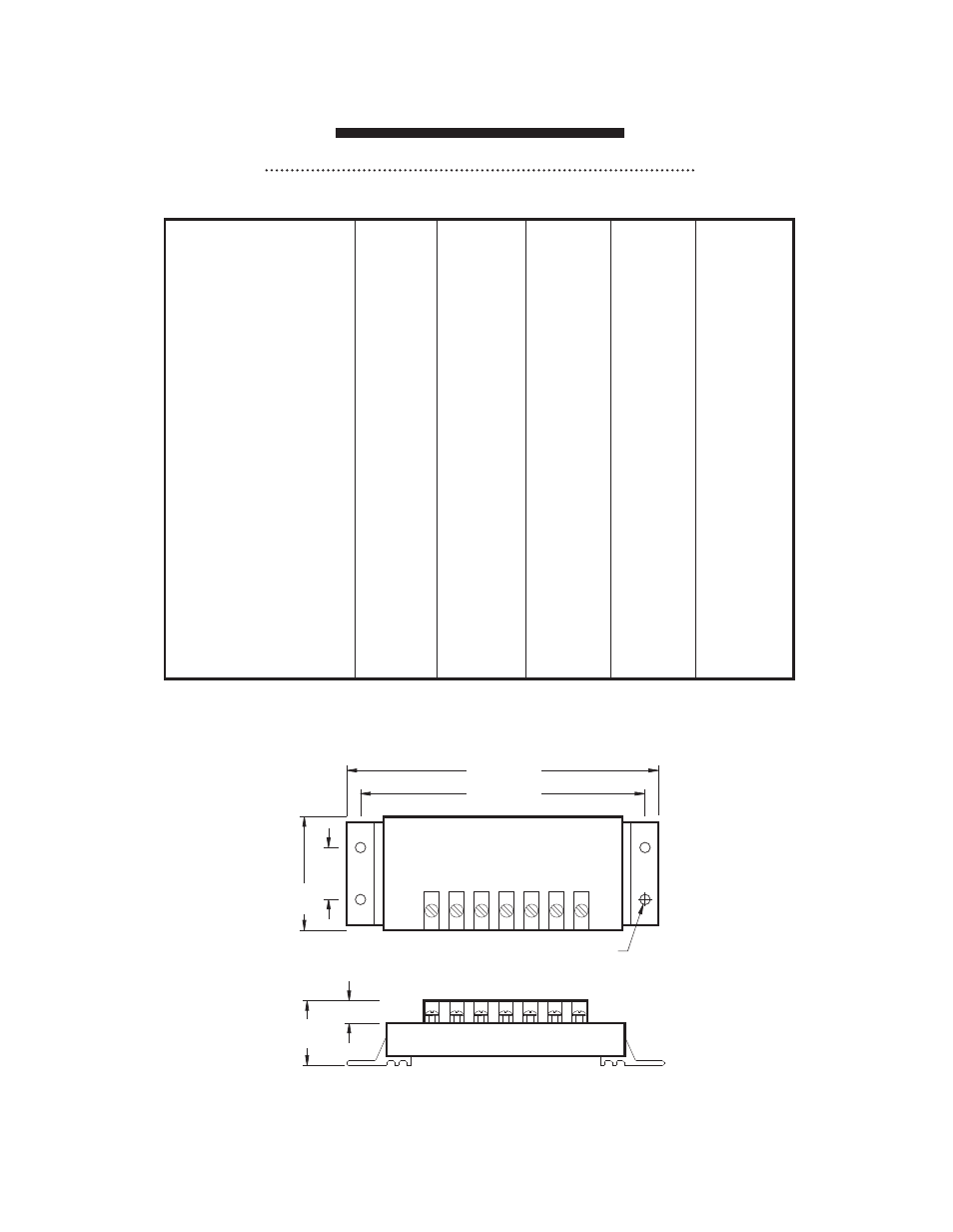

4 MOUNTING HOLES ø0.20 (5.0)
2.18
(55)
1.00
(25)
6.00 (152)
5.50 (140)
DIMENSIONS INCHES (MM)
