LI190SB Quantum Sensor
Remove the red cap after installing the sensor. Save this cap for
shipping or storing the sensor. NOTE

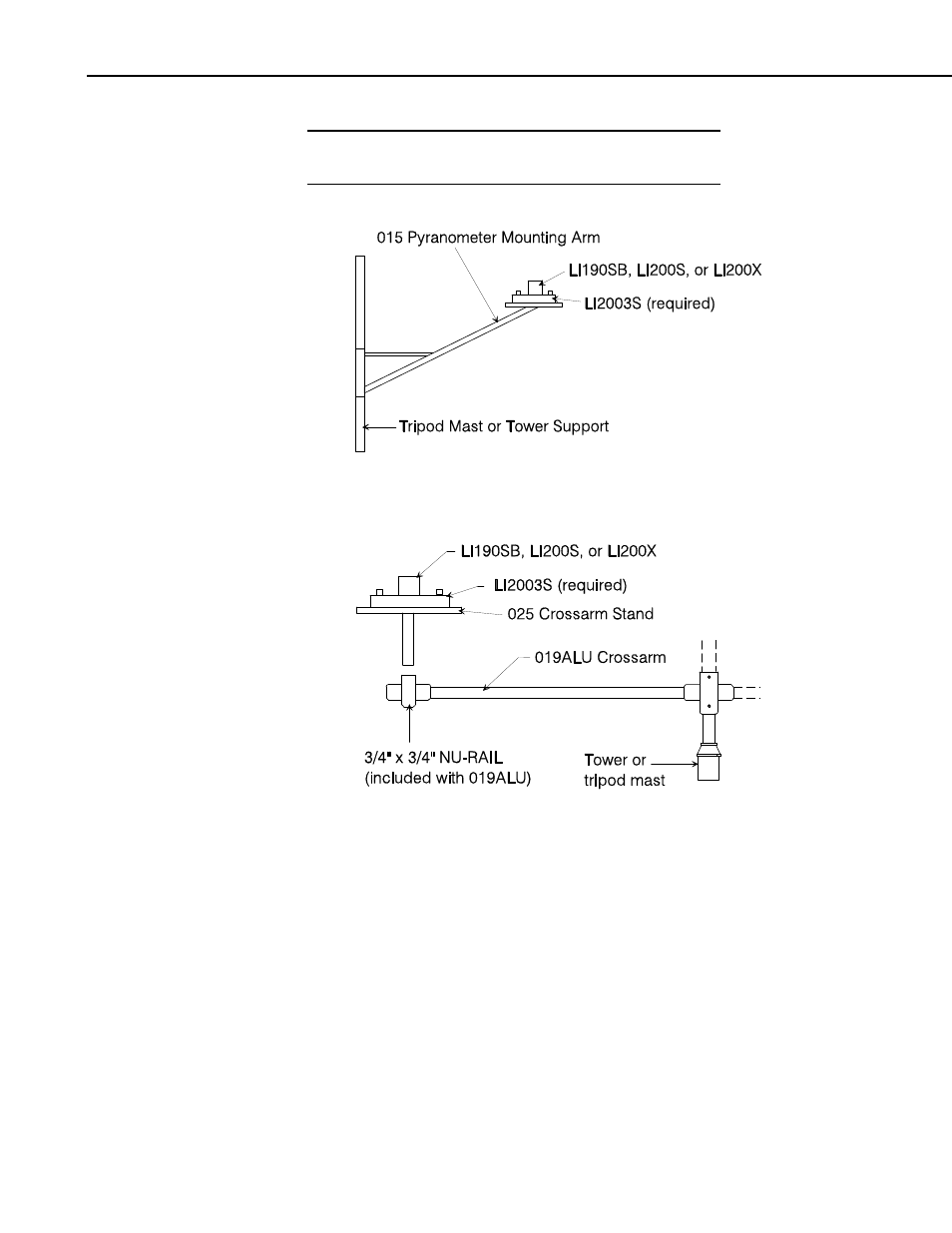

FIGURE 3-2. 015 Pyranometer Mounting Arm
FIGURE 3-3. 025 Crossarm Stand and 019ALU Crossarm
4. Wiring
A schematic diagram of the LI190SB is shown in Figure 4-1.
Connections to Campbell Scientific dataloggers are given in Table 4-1. When
Short Cut software is used to create the datalogger program, the sensor should
be wired to the channels shown in the wiring diagram created by Short Cut.
4
