CS100 Barometric Pressure Sensor

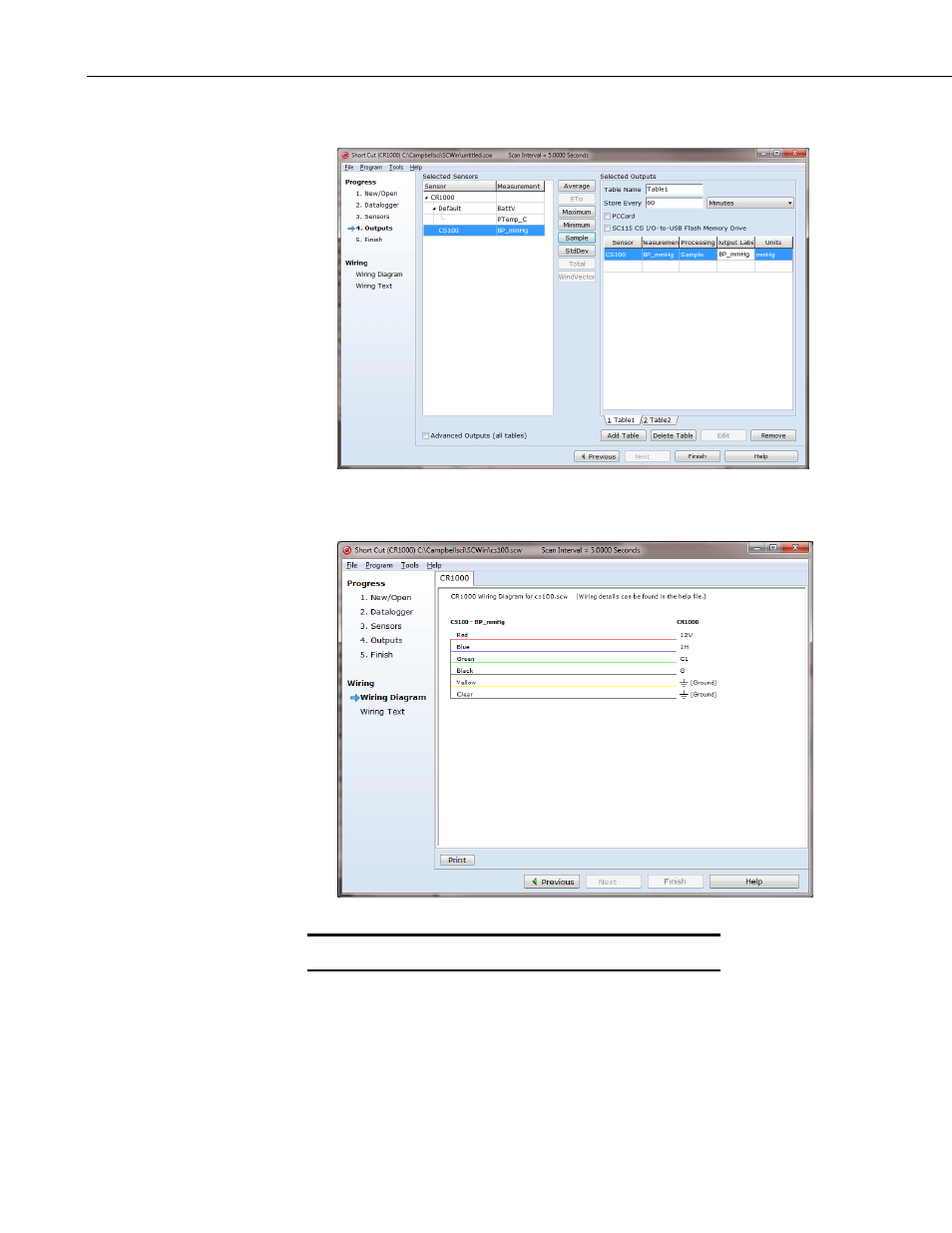

5. Choose the outputs for the barometric pressure and then select finish.
6. Remove the yellow warning label from the pigtails and wire according to
the wiring diagram generated by SCWin Short Cut.
Improper wiring may damage the CS100 beyond repair. WARNING
5. Overview
The CS100 is a capacitive pressure transducer that uses the Setra's electrical
capacitor technology for barometric pressure measurements over the 600 to
1100 millibar range. The transducer’s compact and rugged polyester housing
with stainless blackplate contains two closely-spaced, parallel, electrically-
4
