Model 108-LC Temperature Probe for MetData1
4
3. Installation and Wiring
The 108 must be housed inside a radiation shield when used in the field for air
temperature measurement. The 41303 Radiation Shield (see Figure 3-1)
mounts to a CM6 or CM10 tripod. The UT018 mounting arm and UT6P
Radiation Shield are used to mount the 108 to a UT30 tower.
The standard lead length of 6 feet and 9 feet allow the 108 to be mounted at a 2
meter height on the CM6/CM10 tripod or the UT30 tower respectively.

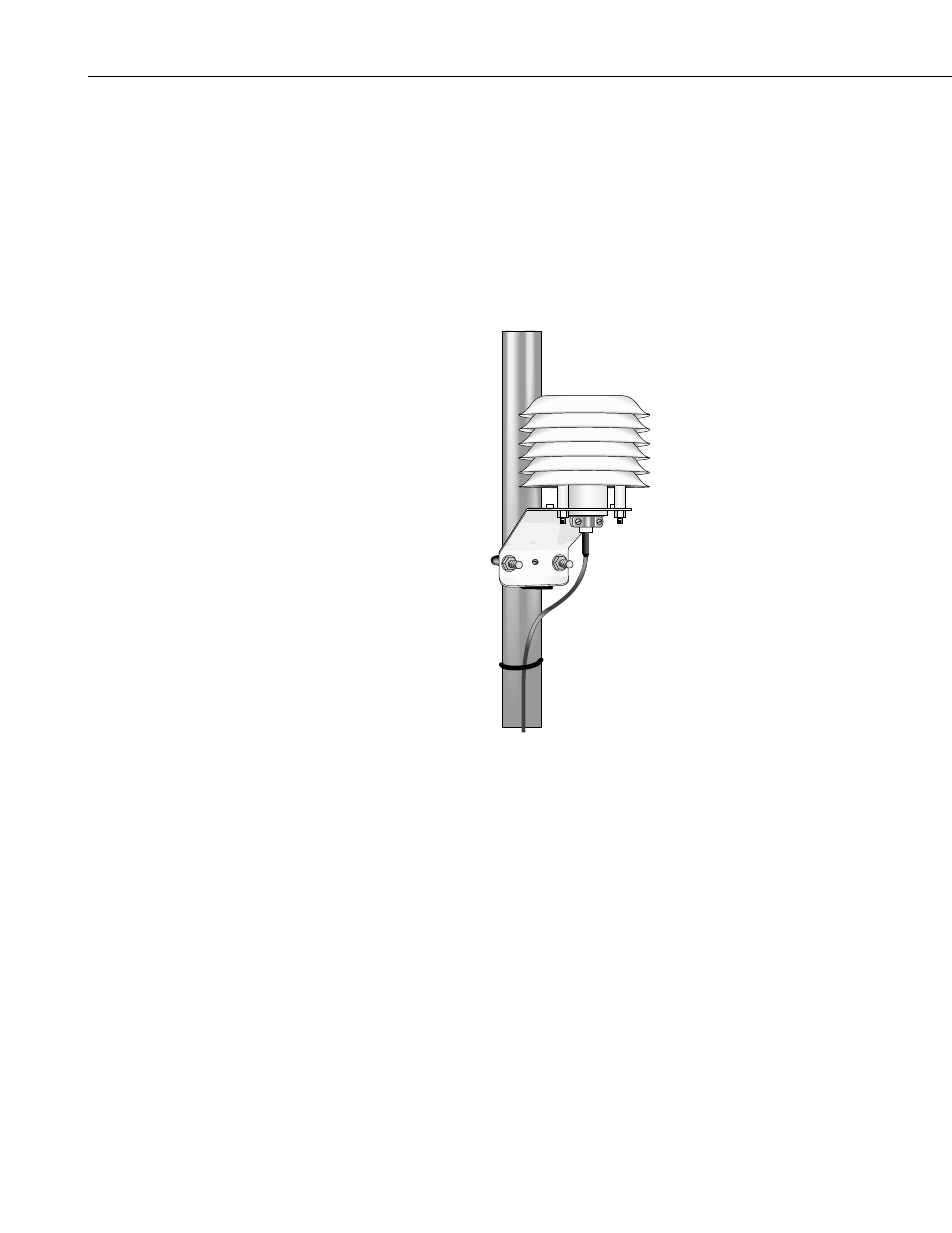

FIGURE 3-1. 108 and 41303 Radiation Shield
on a CM6/CM10 Tripod Mast
4. Connection
The 108 cable is attached to the MetData1 connector #4 or #7. Connector #4
uses single-ended input 4L (channel 8) and connector #7 uses single-ended
input 5H (channel 9). The probe is measured by a single-ended analog input
channel.
