 Ignition Lockout function – The ignition lockout function is to turn the Inverter OFF when the auxiliary input
wiring is connected to the ACC, and “+” battery voltage signal is applied.
 Reverse Override Function – The Reverse Override Function is to turn the inverter ON when the auxiliary
input wiring is connected to the reverse gear Shift, and “+” battery voltage signal is applied.
• Installation Procedure

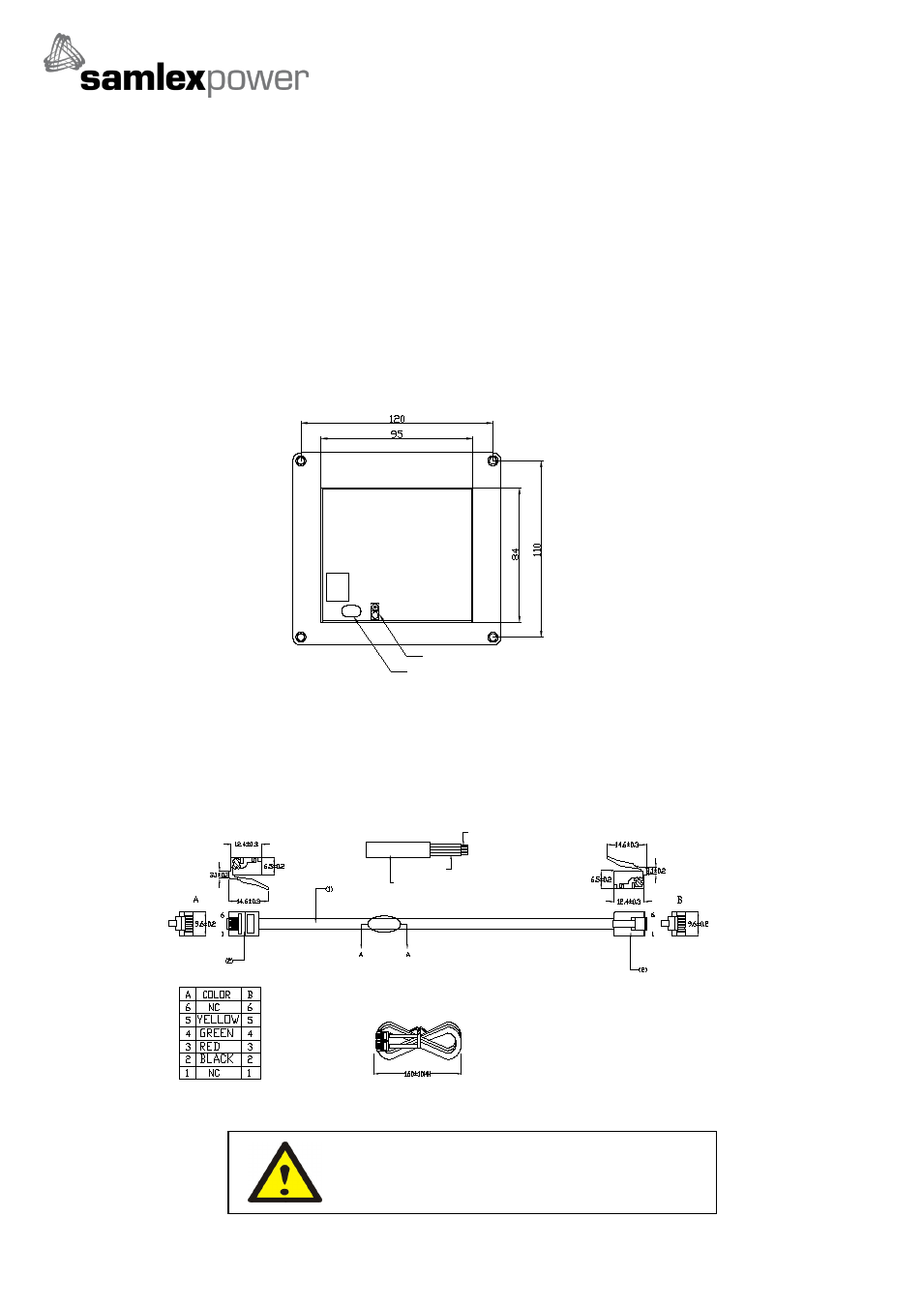

1. Refer to the drawing (see Figure 2) for hole and cutout dimensions.
2. Use the cable between S-R6 remote and the inverter.
3. Switch the inverter to REMO position.
AUX
PHONE
JACK
JP 1
Figure 2
4. Drawings of S-R6 Remote Control Cables
C O N D U C T O R
J A C K E T
I N S U L A T I O N
C A B L E S T R U C T U R E ( A- A)
WARNING!
DO NOT use standard telephone cable.
