www.samlexamerica.com

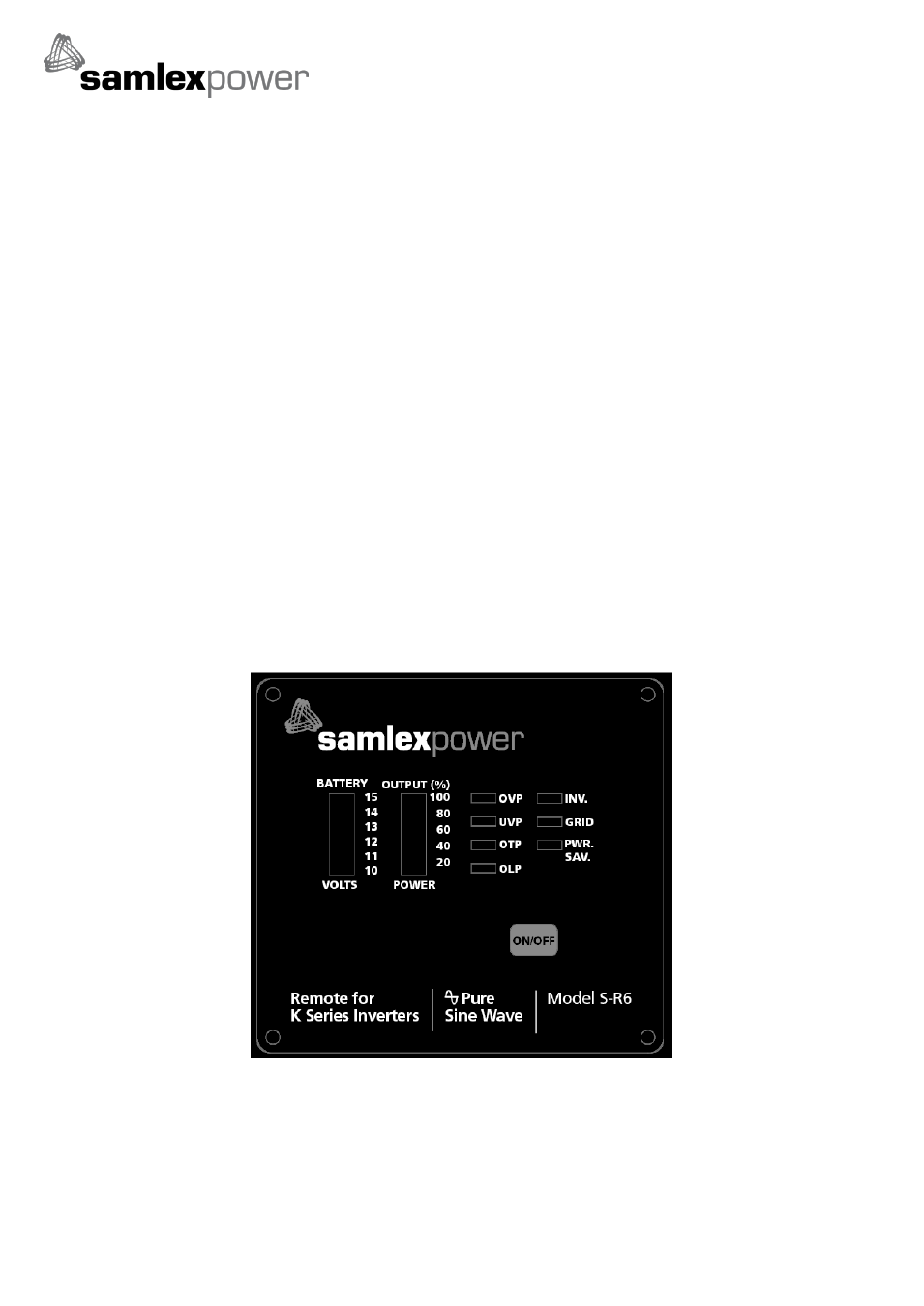

S-R6 Inverter Remote Control User Manual

1. Features

Battery bank voltage display

Output power display

Error condition indicator (High Battery, Low Battery, Over Temperature, Over Load conditions)

Indicator for status of operation (INV, GRID, POWER SAVING)

Failed connection display

2. Specification

Input Voltage : separate versions for 12 V & 24 V inverters

Operating Temperature Range : 0 – 40

Storage Temperature Range : - 30

℃ - 70℃

Stand-By Current Draw : < 80mA

Applicable Models : SA-1000K / 2000K / 3000K Series

3. Introduction

Power ON/OFF Switch

Power ON/OFF switch is to turn the inverter on or off. You are supposed to hear one beep sound every time you switch

on or off.
