3-1-2.ON / OFF switch：
Power ON / OFF switch, leave the status OFF during installation.
3-1-3.LED Status
Charging Status LED Signal LED Indication
Bulk Charge Fast Green Blink
Absorption Charge Slow Green Blink
Floating Charge Solid Green
Charging Failure
or
Wire Disconnection
Red Blink

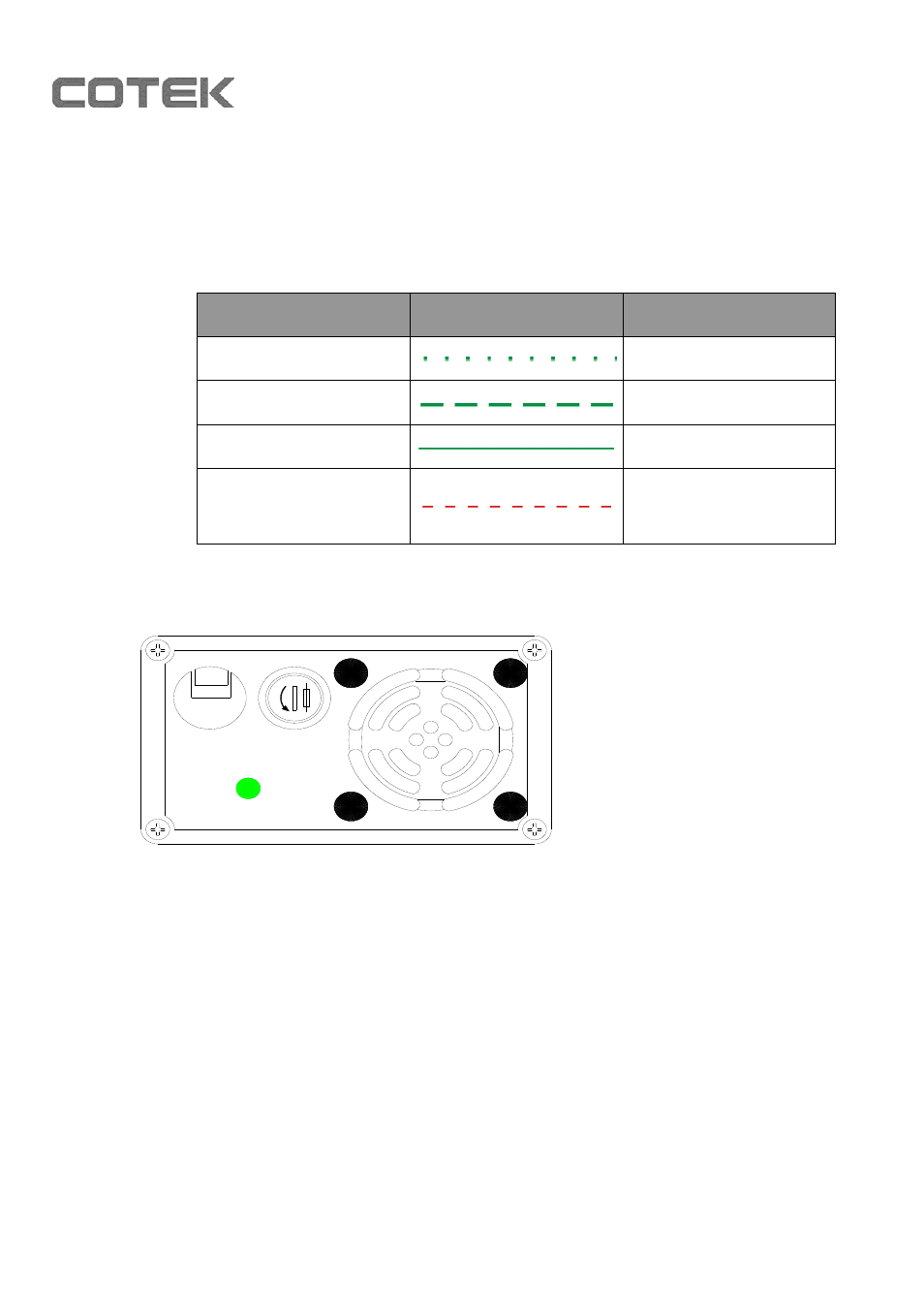

3-2. Rear Panel Operation：
STATUS
DC
OUTPUT
PUSH
FUSE
DC
3-2-1.Ventilation Shaft：
Be sure to keep it a distance (at least one inch) from surrounding
things.
3-2-2.DC Output Terminals：
Connect it to 12V/24V batteries.
【
+】indicates positive, 【-】indicates negative. Reverse polarity
connection will blow the internal fuse and may damage BP-□□□□A
permanently.
