5 GTT70A Hardware Manual
4 Hardware
4.1 Available Headers

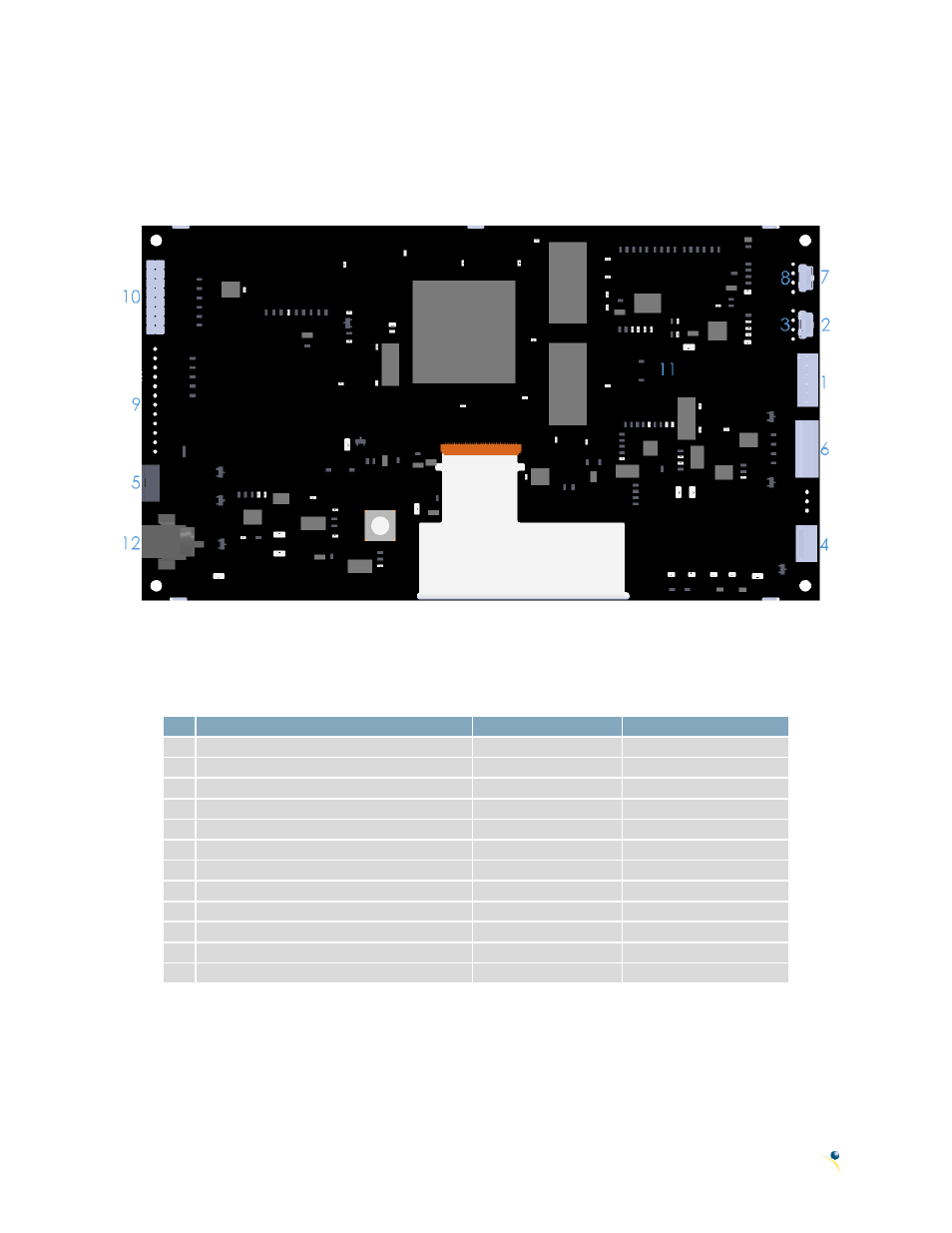

Figure 8: GTT70A Header Locations
Table 3: List of Available Headers
# Header Standard Mate Population
1 Extended Serial Communication & Power ESCCPC5V, ISCCPC5V RS232/TTL Models Only
2 USB Communication & Power EXTPUSB6FT USB Model Only
3 Alternate USB None Offered Custom Only
4 I2C Communication & Power BBC All Models
5 Alternate Power PCS USB Model Only
6 RS422 Communication & Power 16-30 AWG Wire RS422 Model Only
7 Mass Storage EXTPUSB6FT All Models
8 Alternate Mass Storage None Offered Custom Only
9 Keypad KPP4x4 All Models
10 GPO None Offered All Models
11 Mass Storage Selector Jumper All Models
12 Power Adaptor None Offered All Models
