Assembly Instruction
490-8920 TODDLER BED/DAYBED
Page 4 of 6

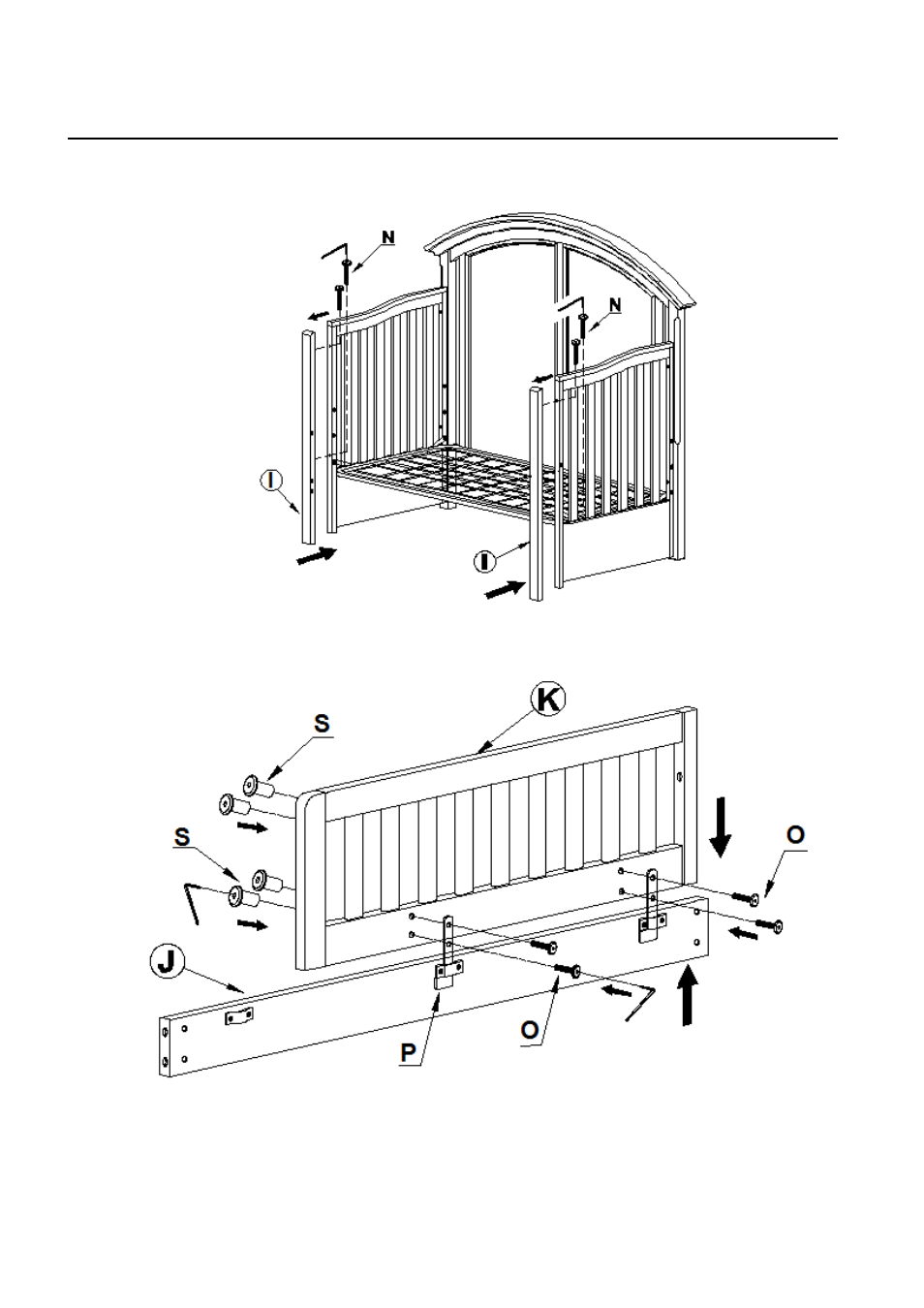

3. Assemble the Long rail - Left and Right (I) to the Left Side Gate and Right Side Gate with 4bolts (N), using the
Hex Allen Wrench.(see Fig 2).
4. Assemble the Guard rail (K) into Conversion Rail (J)
by 2Toddler bed bracket (P) with 4 Bolts (O) and 4 Cap
nuts (S), using the Hex Allen Wrench (see Fig 3).
5. Assemble the Guard rail and Conversion rail into the Long rail-Left and Right (I) with Bolts (L) and Barrel nut (T),
using Hex Allen Wrench. Adjust the Barrel nut (T) to fit with the Bolt (L) on the hole of the conversion rail once
assembled (see Fig 4).
Fig (3)
Fig (2)
