REAR PANEL CALLOUTS
15 INPUT
AC Line cord L5-20P or L6-15P(240Vin)
To IEC320
19 SIGNAL
- Open-collector signal contacts
16 INPUT LINE FUSE – Input line protection
20A 250V
20 RS232
- Computer communications signals
17 DC
INPUT
- Auxiliary battery connector for 72VDC
system
21 IDENTIFICATION
LABEL
18 120VAC
OUTPUT
System output
22 SNMP
– (Optional) Slot for network monitoring
23 OUTPUT
FUSES
– Output Receptacle Fuses
20A 250V

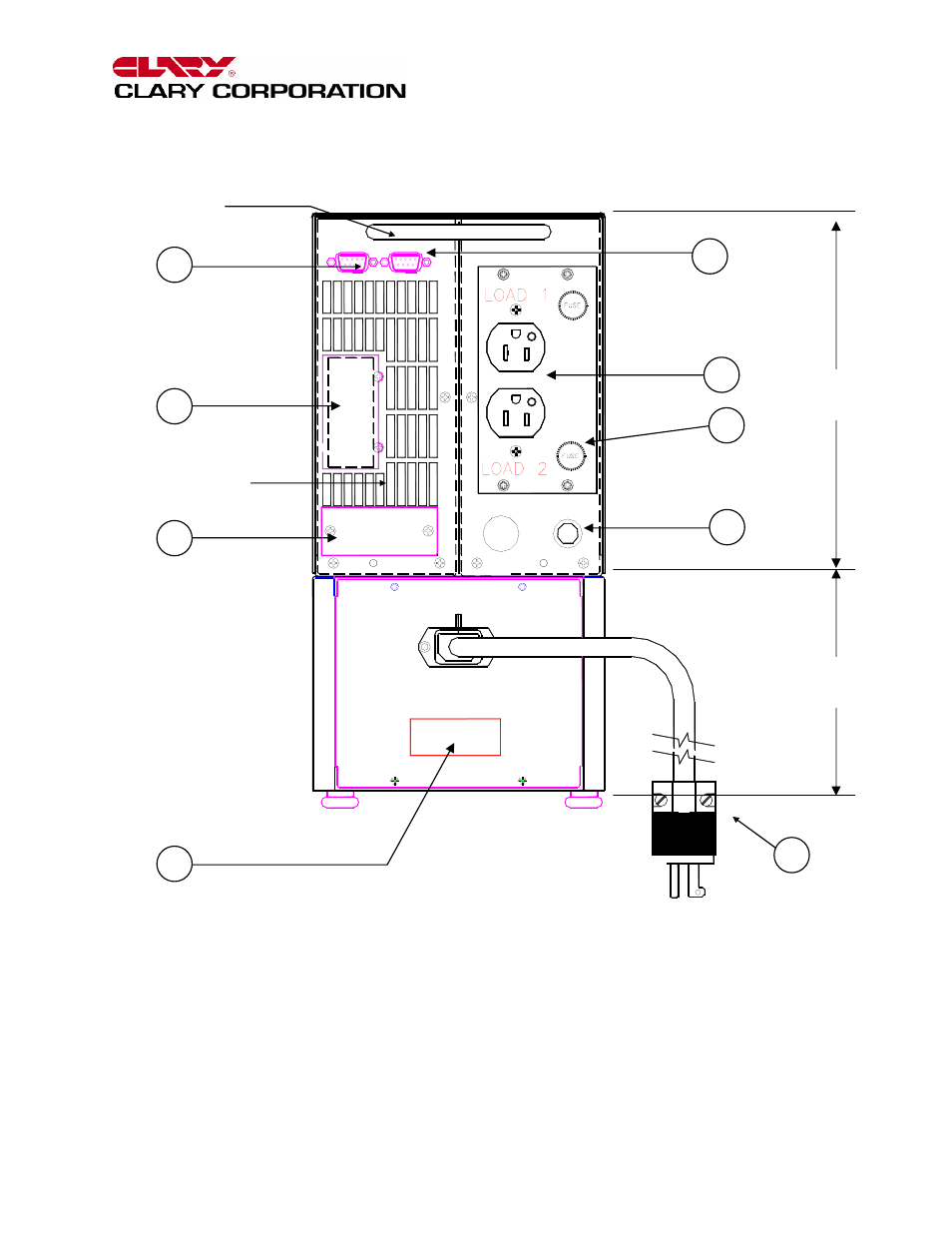

FIGURE 5: REAR VIEW
TRANSFORMER
COMPARTMENT
UPS
COMPARTMENT
LIFTING
HANDLE
AIR EXHAUST,
COOLING
17
22
21
19
16
15
18
23
20
